AZ1085S2-3.3TRE1 datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> AZ1085S2-3.3TRE1

AZ1085S2-3.3TRE1: DescriptionFixed Positive LDO Regulator, 3.3V, 1.5V Dropout, BIPolar, PSSO2, ROHS COMPLIANT, TO-263-2, 3 PIN; CategoryPower/power management The power supply circuit; File Size194KB，16 Pages; ManufacturerBCD Semi（Diodes）; Environmental Compliance

Download Datasheet Parametric View All

AZ1085S2-3.3TRE1 Overview

Fixed Positive LDO Regulator, 3.3V, 1.5V Dropout, BIPolar, PSSO2, ROHS COMPLIANT, TO-263-2, 3 PIN

AZ1085S2-3.3TRE1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	BCD Semi（Diodes）
Parts packaging code	D2PAK
package instruction	, SMSIP3H,.55TB
Contacts	4
Reach Compliance Code	unknown
ECCN code	EAR99
Adjustability	FIXED
Maximum drop-back voltage 1	1.5 V
Nominal dropback voltage 1	1.3 V
Maximum absolute input voltage	12 V
Maximum input voltage	10 V
Minimum input voltage	4.8 V
JESD-30 code	R-PSSO-G2
length	9.97 mm
Maximum grid adjustment rate	0.006%
Maximum load regulation	0.02%
Number of functions	1
Output times	1
Number of terminals	2
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min
Maximum output current 1	3 A
Maximum output voltage 1	3.366 V
Minimum output voltage 1	3.234 V
Nominal output voltage 1	3.3 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SMSIP3H,.55TB
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	4.82 mm
surface mount	YES
technology	BIPOLAR
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	2%
width	9.145 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Data Sheet

3A LOW DROPOUT LINEAR REGULATOR

General Description

The AZ1085 is a series of low dropout positive voltage

regulators with a maximum dropout of 1.5V at 3A of

load current.

The series features on-chip thermal shutdown. It also

includes a bandgap reference and a current limiting cir-

cuit.

The AZ1085 is available in 1.5V, 1.8V, 2.5V, 2.85V,

3.3V, 5.0V and adjustable versions. The fixed versions

integrate the adjust resistors. The adjustable version

can set the output voltage with two external resistors.

The AZ1085 series is available in standard packages of

TO-263-2L, TO-263-3L, TO-220 and TO-252.

AZ1085

Features

Low Dropout Voltage: Typical 1.3V at 3A

Current Limiting and Thermal Protection

Output Current: 3A

Current Limit: 4.5A

Operating Junction Temperature: 0 to 125

Line Regulation: 0.015% (Typical)

Load Regulation: 0.1% (Typical)

Applications

High Efficiency Linear Regulators

Battery Charger

Post Regulation for Switching Supplies

Microprocessor Supply

Mother Board Power Supplies

DVD - Video Player

Telecom Equipment

Set Top boxes and Web Boxes Modules' Supply

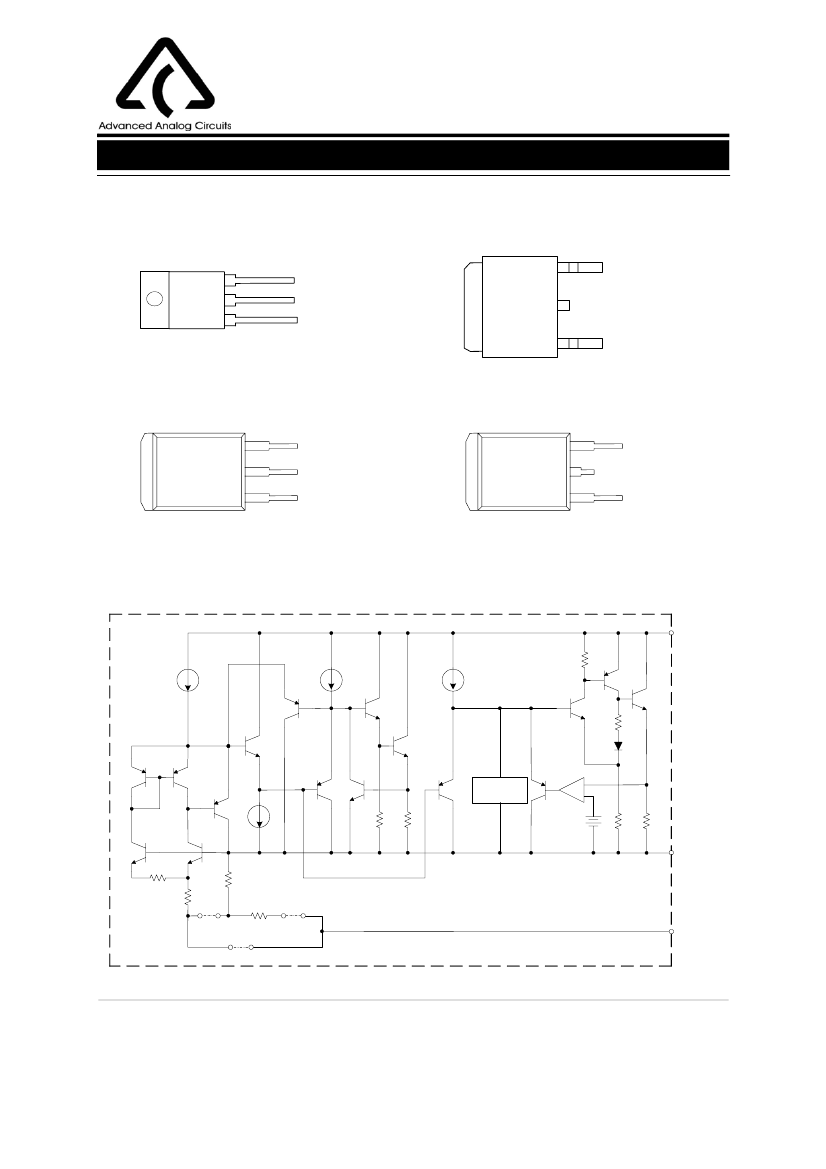

TO-263-3L

TO-263-2L

TO-252

TO-220

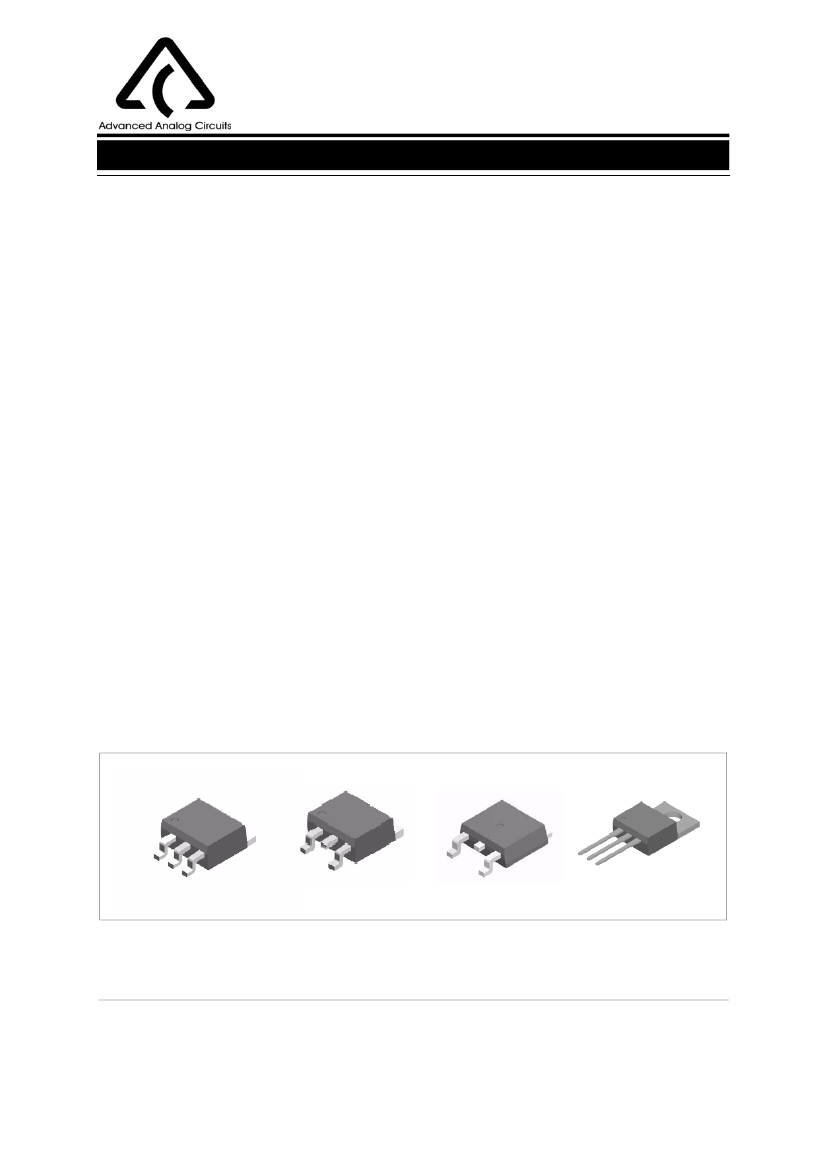

Figure 1. Package Types of AZ1085

Apr. 2005 Rev. 1. 1

BCD Semiconductor Manufacturing Limited
