Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 80C32-16/BQA

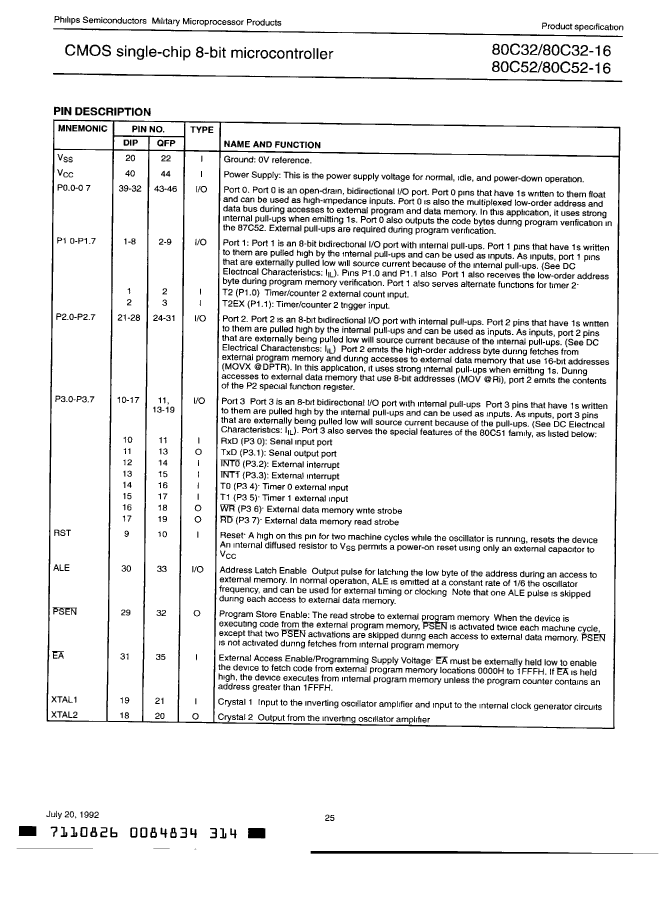

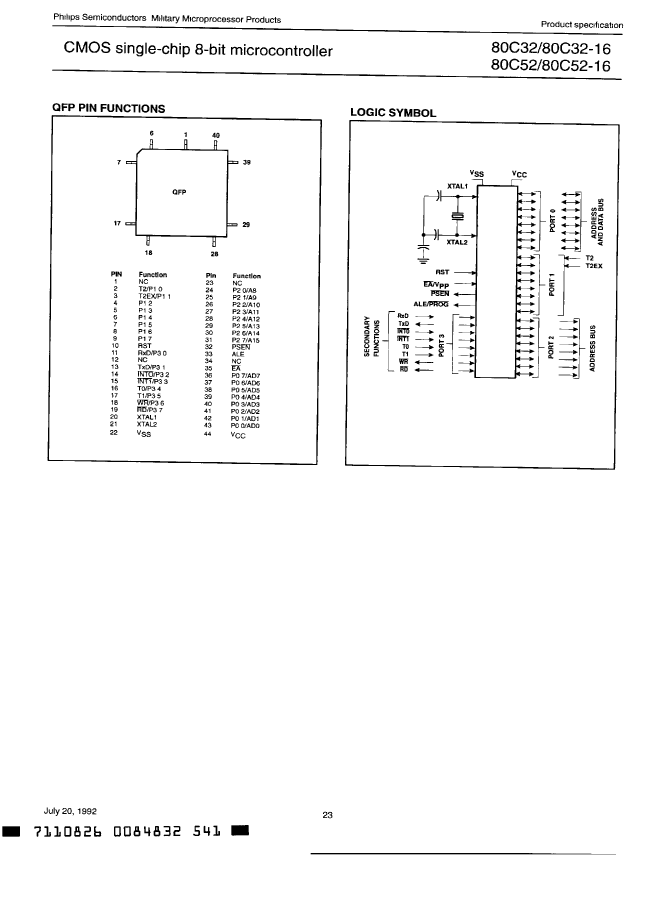

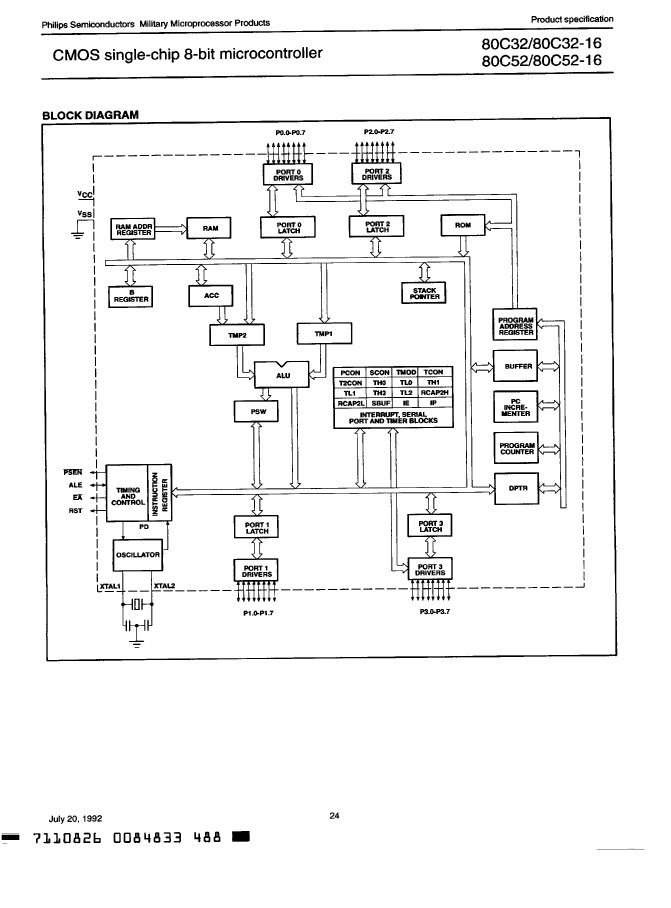

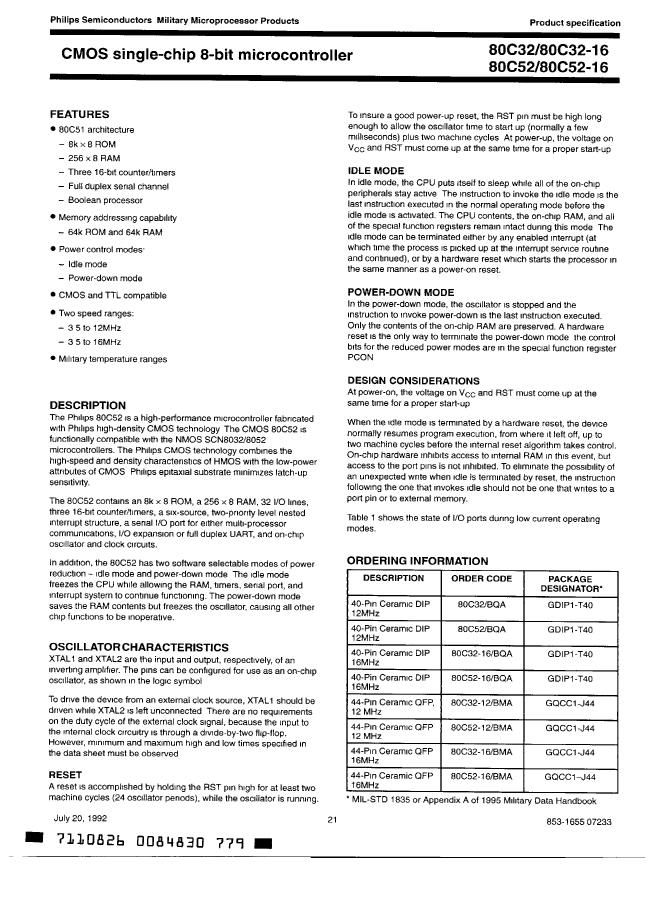

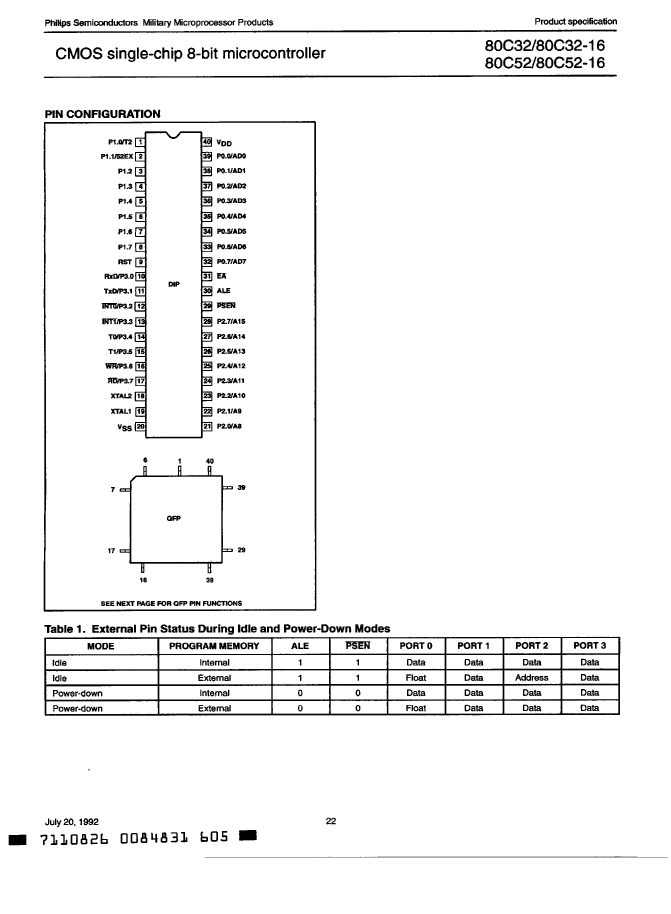

Preview

80C32-16/BQA: DescriptionMicrocontroller, 8-Bit, 8051 CPU, 16MHz, CMOS, CDIP40,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size361KB，12 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

80C32-16/BQA Overview

Microcontroller, 8-Bit, 8051 CPU, 16MHz, CMOS, CDIP40,

80C32-16/BQA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP40,.6
Reach Compliance Code	unknown
bit size	8
CPU series	8051
JESD-30 code	R-XDIP-T40
JESD-609 code	e0
Number of terminals	40
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	256
rom(word)	0
Filter level	38535Q/M;38534H;883B
speed	16 MHz
Maximum slew rate	39 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

80C32-16/BQA Related Products

	80C32-16/BQA	80C52-12/BMA	80C52-16/BQA	80C32-12/BMA	80C52/BQA	80C32/BQA	80C32-16/BMA	80C52-16/BMA
Description	Microcontroller, 8-Bit, 8051 CPU, 16MHz, CMOS, CDIP40,	Microcontroller, 8-Bit, MROM, 8051 CPU, 12MHz, CMOS, CQCC44,	Microcontroller, 8-Bit, MROM, 8051 CPU, 16MHz, CMOS, CDIP40,	Microcontroller, 8-Bit, 8051 CPU, 12MHz, CMOS, CQCC44,	Microcontroller, 8-Bit, MROM, 8051 CPU, 12MHz, CMOS, CDIP40,	Microcontroller, 8-Bit, 8051 CPU, 12MHz, CMOS, CDIP40,	Microcontroller, 8-Bit, 8051 CPU, 16MHz, CMOS, CQCC44,	Microcontroller, 8-Bit, MROM, 8051 CPU, 16MHz, CMOS, CQCC44,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP40,.6	QCCJ, LDCC44,.7SQ	DIP, DIP40,.6	QCCJ, LDCC44,.7SQ	DIP, DIP40,.6	DIP, DIP40,.6	QCCJ, LDCC44,.7SQ	QCCJ, LDCC44,.7SQ
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
bit size	8	8	8	8	8	8	8	8
CPU series	8051	8051	8051	8051	8051	8051	8051	8051
JESD-30 code	R-XDIP-T40	S-XQCC-J44	R-XDIP-T40	S-XQCC-J44	R-XDIP-T40	R-XDIP-T40	S-XQCC-J44	S-XQCC-J44
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Number of terminals	40	44	40	44	40	40	44	44
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	QCCJ	DIP	QCCJ	DIP	DIP	QCCJ	QCCJ
Encapsulate equivalent code	DIP40,.6	LDCC44,.7SQ	DIP40,.6	LDCC44,.7SQ	DIP40,.6	DIP40,.6	LDCC44,.7SQ	LDCC44,.7SQ
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	256	256	256	256	256	256	256	256
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
speed	16 MHz	12 MHz	16 MHz	12 MHz	12 MHz	12 MHz	16 MHz	16 MHz
Maximum slew rate	39 mA	35 mA	39 mA	35 mA	39 mA	39 mA	39 mA	39 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	J BEND	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND	J BEND
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL	QUAD	DUAL	DUAL	QUAD	QUAD
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	-	-	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
Base Number Matches	1	1	1	1	1	1	1	-
