HM2P09PDF1M0N9LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> HM2P09PDF1M0N9LF

HM2P09PDF1M0N9LF: DescriptionBack Plane Connectors,2mm Hard Metric Series,Millipacs, Vertical Header, Type C with peg 2.5mm, 55 Signal Pin, Press Fit Tail, 250 mating cycles and ROHS Compliant; CategoryThe connector The connector; File Size88KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HM2P09PDF1M0N9LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HM2P09PDF1M0N9LF	-	-	View	Buy Now

HM2P09PDF1M0N9LF Overview

Back Plane Connectors,2mm Hard Metric Series,Millipacs, Vertical Header, Type C with peg 2.5mm, 55 Signal Pin, Press Fit Tail, 250 mating cycles and ROHS Compliant

HM2P09PDF1M0N9LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2134411676
package instruction	LEAD FREE
Contacts	55
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.6
body width	0.606 inch
subject depth	0.53 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	.139 N
Insulation resistance	10000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2 mm
Rated current (signal)	1.5 A
Guideline	UL, CSA
Terminal length	0.146 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	55
UL Flammability Code	94V-0
Evacuation force-minimum value	.7506 N

Preview

Download Datasheet

View All

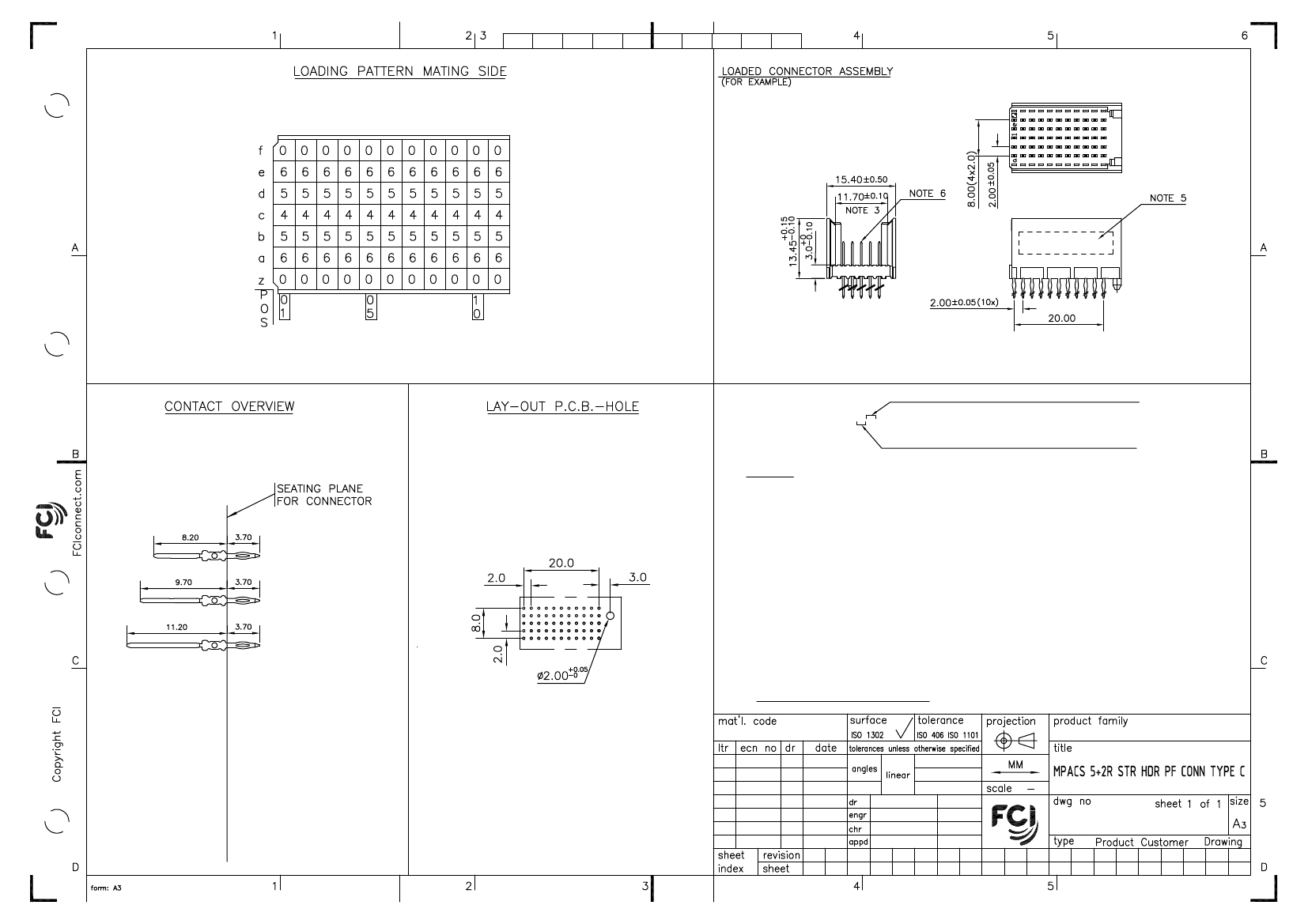

HM2P09PDF1M0----

NOTES

LEAD FREE INDICATOR : LF = LEAD FREE

(DIGIT 15 & 16)

PLATING CODE (DIGIT 13 AND 14)

(REF DRW NO. BS,C , 201844 , 003)

1. THIS PRODUCT IS CSA APPROVED.

2. THIS PRODUCT IS UL RECOGNIZED.

3. MEASURED AT THE BOTTOM.

4. MATERIAL CONTACT: PHOSPHORBRONZE

HOUSING: CREAM WHITE GLASS FILLED POLYESTER UL-94V0

5. CONNECTOR PRINTED WITH P/N AND DATE CODE.

6. FOR ACTUAL CONTACT LOADINGS, SEE LOADING PATTERN MATING SIDE.

7. SHAPE OF CONNECTOR HOUSING CAN ALTER DEPENDING ON

PRODUCTION LOCATION

8. THE PRODUCT (LF) MEETS EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY

REGULATIONS AS DESCRIBED IN GS-22-008

9. FOR RECOMMENDED PTH DIMENSIONS REFER DRAWING : BS, A , 201572 , 001

CATALOG NO: HM2P09PDF1M0----

SEE NOTE 4

I05-0264

I06-0141

MINI 2005-12-02

MINI 2006-08-05

0°±1°

MINI K VANDANATH 2005-12-02

BIJU K PAUL

2005-12-02

2006-08-05

.0±0.2

.00±0.1

MILLIPACS

BS, C ,203028,633

PDM: Rev:B

STATUS:

Released

Printed: Dec 04, 2007

HM2P09PDF1M0N9LF Related Products

	HM2P09PDF1M0N9LF	HM2P09PDF1M0E9LF	HM2P09PDF1M0E9	HM2P09PDF1M0Z1LF	HM2P09PDF1M0Z1
Description	Back Plane Connectors,2mm Hard Metric Series,Millipacs, Vertical Header, Type C with peg 2.5mm, 55 Signal Pin, Press Fit Tail, 250 mating cycles and ROHS Compliant	Board Connector, 55 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 55 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 55 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 55 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	55	55	55	55	55
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
package instruction	LEAD FREE	LEAD FREE	-	LEAD FREE	-
ECCN code	EAR99	EAR99	EAR99	-	-
Maker	-	Amphenol	Amphenol	Amphenol	Amphenol
Manufacturer's serial number	-	HM2	HM2	HM2	HM2
Base Number Matches	-	1	1	1	1
