EL7232CS-T13 datasheet, PDF - EEWORLD Datasheet

EL7232CS-T13: DescriptionLine Driver, 2 Func, 2 Driver, PDSO8, SO-8; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size480KB，6 Pages; ManufacturerELANTEC (Renesas )

Download Datasheet Parametric Compare View All

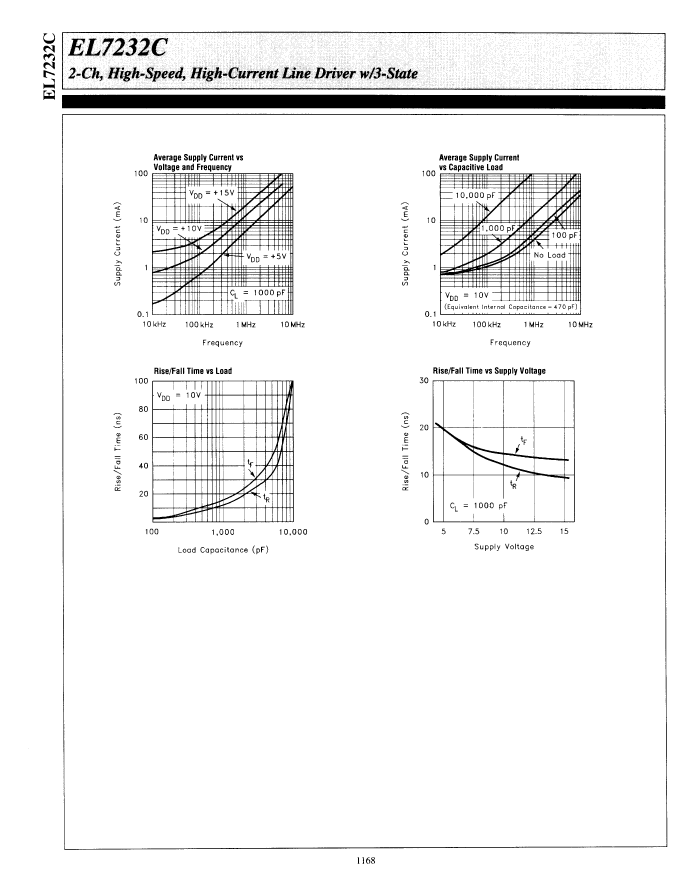

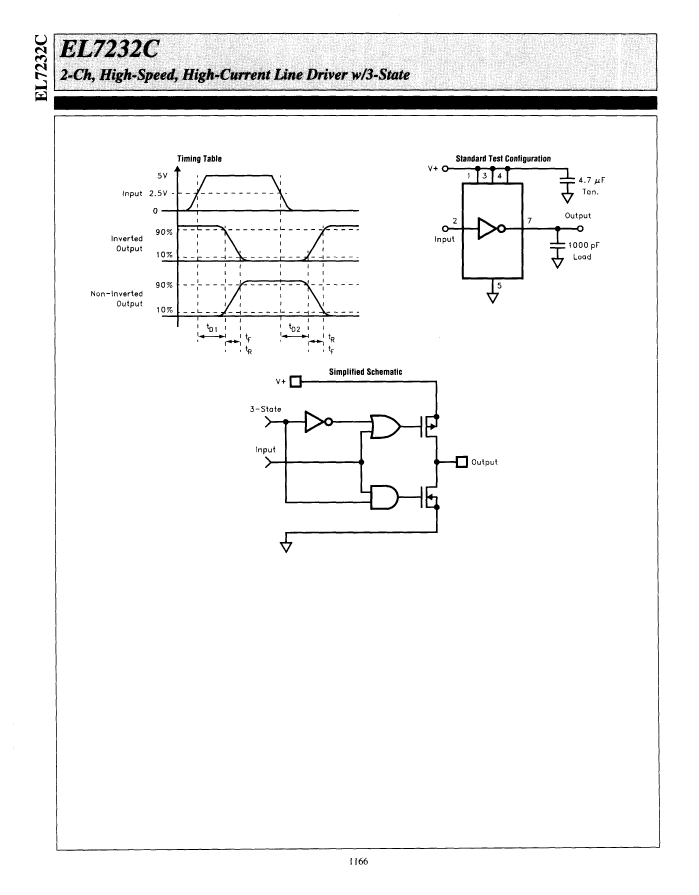

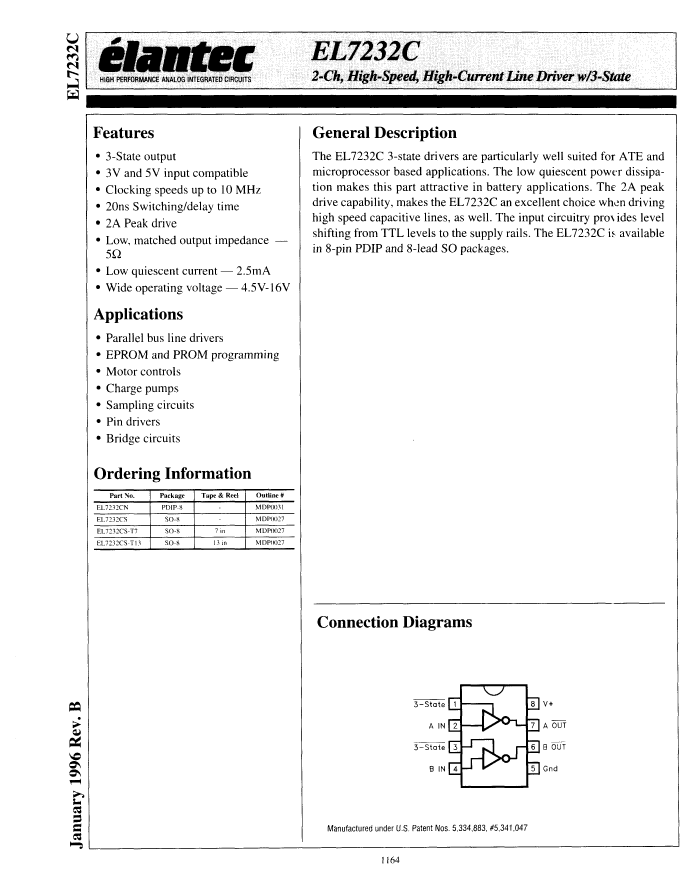

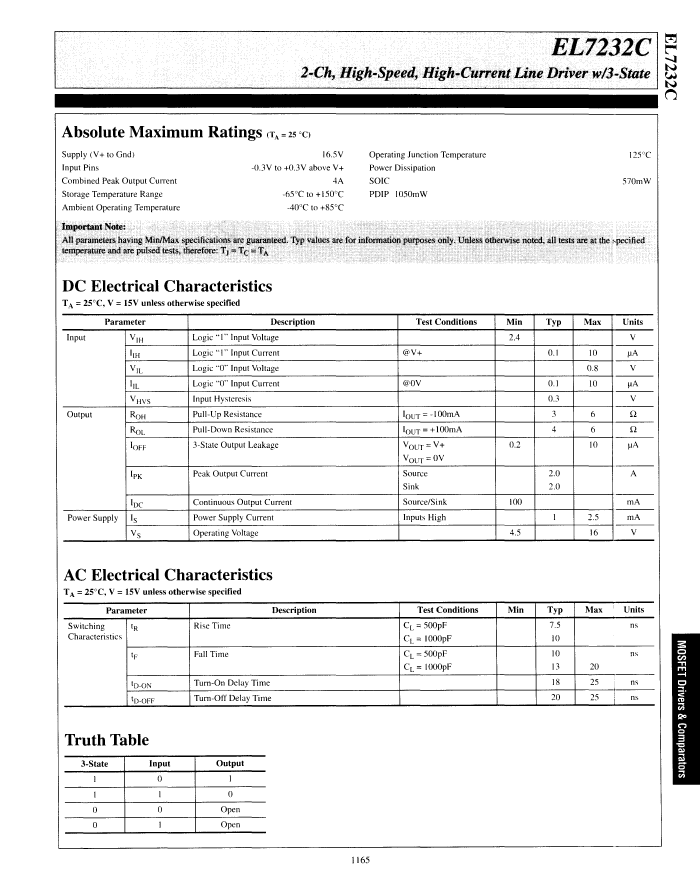

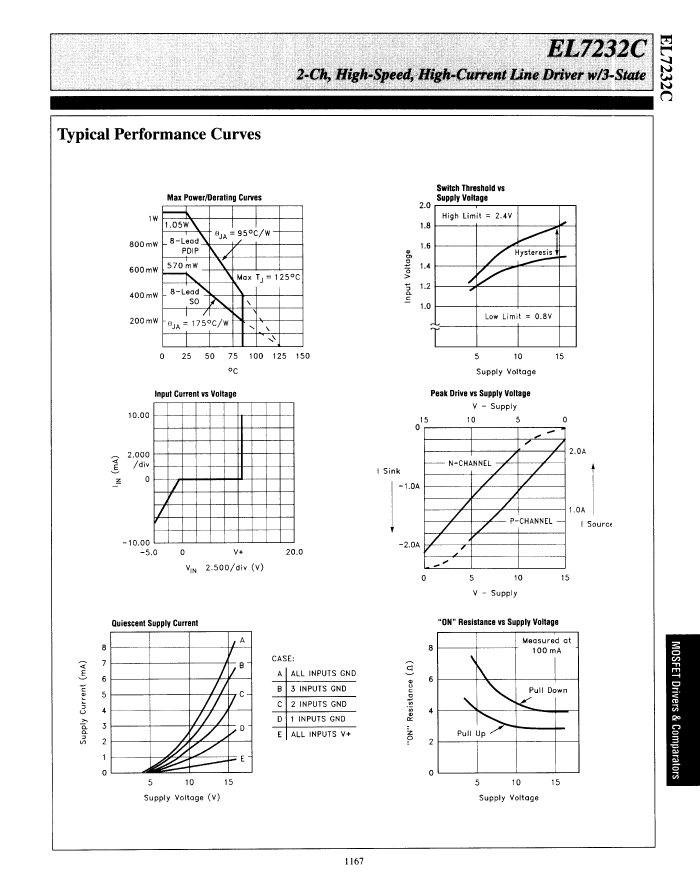

EL7232CS-T13 Overview

Line Driver, 2 Func, 2 Driver, PDSO8, SO-8

Parameter Name	Attribute value
Maker	ELANTEC (Renesas )
package instruction	SO-8
Reach Compliance Code	unknown
Differential output	NO
Number of drives	2
Input properties	STANDARD
Interface integrated circuit type	LINE DRIVER
Interface standards	GENERAL PURPOSE
JESD-30 code	R-PDSO-G8
Number of functions	2
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum supply voltage	16 V
Minimum supply voltage	4.5 V
Nominal supply voltage	15 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

	EL7232CS-T13	EL7232CS-T7
Description	Line Driver, 2 Func, 2 Driver, PDSO8, SO-8	Line Driver, 2 Func, 2 Driver, PDSO8, SO-8
Maker	ELANTEC (Renesas )	ELANTEC (Renesas )
package instruction	SO-8	SO-8
Reach Compliance Code	unknown	unknown
Differential output	NO	NO
Number of drives	2	2
Input properties	STANDARD	STANDARD
Interface integrated circuit type	LINE DRIVER	LINE DRIVER
Interface standards	GENERAL PURPOSE	GENERAL PURPOSE
JESD-30 code	R-PDSO-G8	R-PDSO-G8
Number of functions	2	2
Number of terminals	8	8
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified
Maximum supply voltage	16 V	16 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	15 V	15 V
surface mount	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
Base Number Matches	1	1
