B84102C00300000 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> B84102C00300000

B84102C00300000: DescriptionSingle Phase EMI Filter, 250V, 50/60HzHz; CategoryAnalog mixed-signal IC filter; File Size61KB，1 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric Compare View All

B84102C00300000 Overview

Single Phase EMI Filter, 250V, 50/60HzHz

B84102C00300000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	EPCOS (TDK)
Reach Compliance Code	compliant
Certification	VDE
filter type	SINGLE PHASE EMI FILTER
high	32 mm
high potential	2700 V
Maximum leakage current	0.5 mA
length	103 mm
Manufacturer's serial number	B84102-C
Installation type	PANEL MOUNT
working frequency	50/60Hz Hz
physical size	L103XB38.5XH32 (mm)
Rated current	1 A
Rated voltage	250 V
Base Number Matches	1

Preview

Download Datasheet

View All

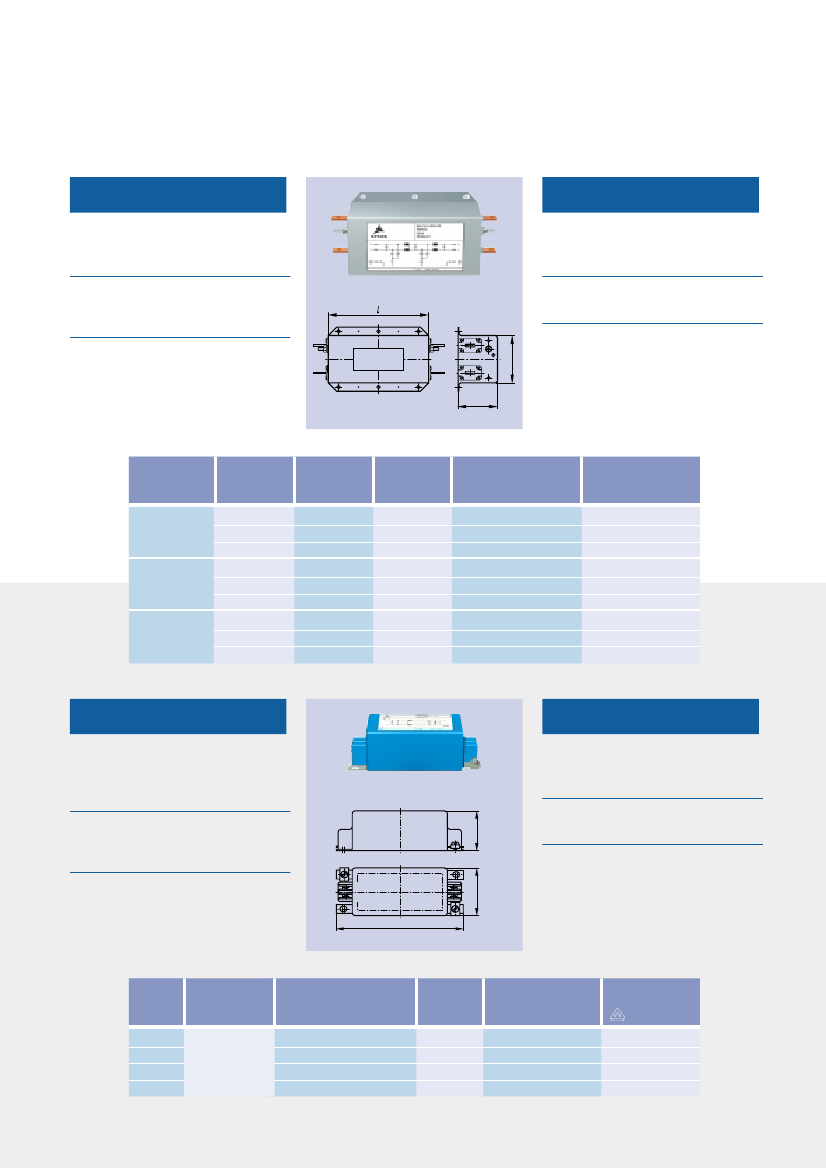

2-Leiter-Filter

2-Line Filters

Umrichter in Traktionssystemen

B84142-A*-S2...-S18

Netzfilter für Gleichspannung

Metallgehäuse

Stromschienen, galv. verzinnt

Bemessungs-

spannung U

Klimakategorie:

750…2000 V–

40/100/21

Marking

LINE LOAD

Converter in traction systems

B84142-A*-S2...-S18

Power line filters for dc systems

Metal case

Busbars, tin-plated

Rated voltage V

: 750…2000 V–

Climatic category: 40/100/21

SSB1889-R

V–

750

250

500

1000

250

500

1000

250

500

1000

typ

µΩ

Maße

Dimensions

h (mm)

300

140

116

300

140

116

350

210

126

300

140

116

300

140

116

350

210

126

300

140

116

300

140

116

350

210

126

Bestellnummer

Ordering code

B84142-A250-S2

B84142-A500-S2

B84142-A1000-S2

B84142-A250-S3

B84142-A500-S3

B84142-A1000-S3

B84142-A250-S18

B84142-A500-S18

B84142-A1000-S18

1000

2000

Allgemeine Anwendungen

B84102-C

Für 1-Phasen-Systeme

Kunststoffgehäuse

Berührungssichere

Anschlussklemmen

Bemessungs-

spannung U

Klimakategorie:

250 V~, 50/60 Hz

25/085/21

NETZ

LINE

103

32 max.

General-purpose applications

B84102-C

For single-phase systems

Plastic case

Safe-to-touch terminals

Rated voltage V

: 250 V~, 50/60 Hz

Climatic category: 25/085/21

0,5

(Klasse

Class)

0,1 µF (X1)

2500 pF (Y2)

Abl

leak

< 0,5

38,5

SSB1890-U

Bestellnummer

Ordering code

B84102-C20

B84102-C30

B84102-C40

B84102-C50

Approbationen

Approvals

13,5 mH, 2

14 µH

3,1 mH, 2

8 µH

1,1 mH, 2

2 µH

220 µH, 2

1 µH

EPCOS AG

B84102C00300000 Related Products

	B84102C00300000	B84102C00200000	B84102-C50	B84102-C30	B84102-C40	B84102C00500000	B84102C00400000	B84102-C20
Description	Single Phase EMI Filter, 250V, 50/60HzHz	Single Phase EMI Filter, 250V, 50/60HzHz	Single Phase EMI Filter, 250V, 50/60HzHz	Single Phase EMI Filter, 250V, 50/60HzHz	Single Phase EMI Filter, 250V, 50/60HzHz	Single Phase EMI Filter, 250V, 50/60HzHz	Single Phase EMI Filter, 250V, 50/60HzHz	Single Phase EMI Filter, 250V, 50/60HzHz
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Certification	VDE	VDE	VDE	VDE	VDE	VDE	VDE	VDE
filter type	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER
high	32 mm	32 mm	32 mm	32 mm	32 mm	32 mm	32 mm	32 mm
high potential	2700 V	2700 V	2700 V	2700 V	2700 V	2700 V	2700 V	2700 V
Maximum leakage current	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA
length	103 mm	103 mm	103 mm	103 mm	103 mm	103 mm	103 mm	103 mm
Manufacturer's serial number	B84102-C	B84102-C	B84102-C	B84102-C	B84102-C	B84102-C	B84102-C	B84102-C
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
working frequency	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz
physical size	L103XB38.5XH32 (mm)	L103XB38.5XH32 (mm)	L103XB38.5XH32 (mm)	L103XB38.5XH32 (mm)	L103XB38.5XH32 (mm)	L103XB38.5XH32 (mm)	L103XB38.5XH32 (mm)	L103XB38.5XH32 (mm)
Rated current	1 A	0.5 A	4 A	1 A	2 A	4 A	2 A	0.5 A
Rated voltage	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Base Number Matches	1	1	1	1	1	1	1	1
