81-190-RFX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 81-190-RFX

81-190-RFX: DescriptionRF Connector Adapter, BNC-FME, Male-Male, Plug-plug; CategoryThe connector The connector; File Size340KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

81-190-RFX Overview

RF Connector Adapter, BNC-FME, Male-Male, Plug-plug

81-190-RFX Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Adapter type	BNC-FME
Body/casing type	PLUG-PLUG
Connector type	RF CONNECTOR ADAPTER
Contact point gender	MALE-MALE
Coupling type	BAYONET-THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	81-190
Options	GENERAL PURPOSE
Panel mounting	NO
Base Number Matches	1

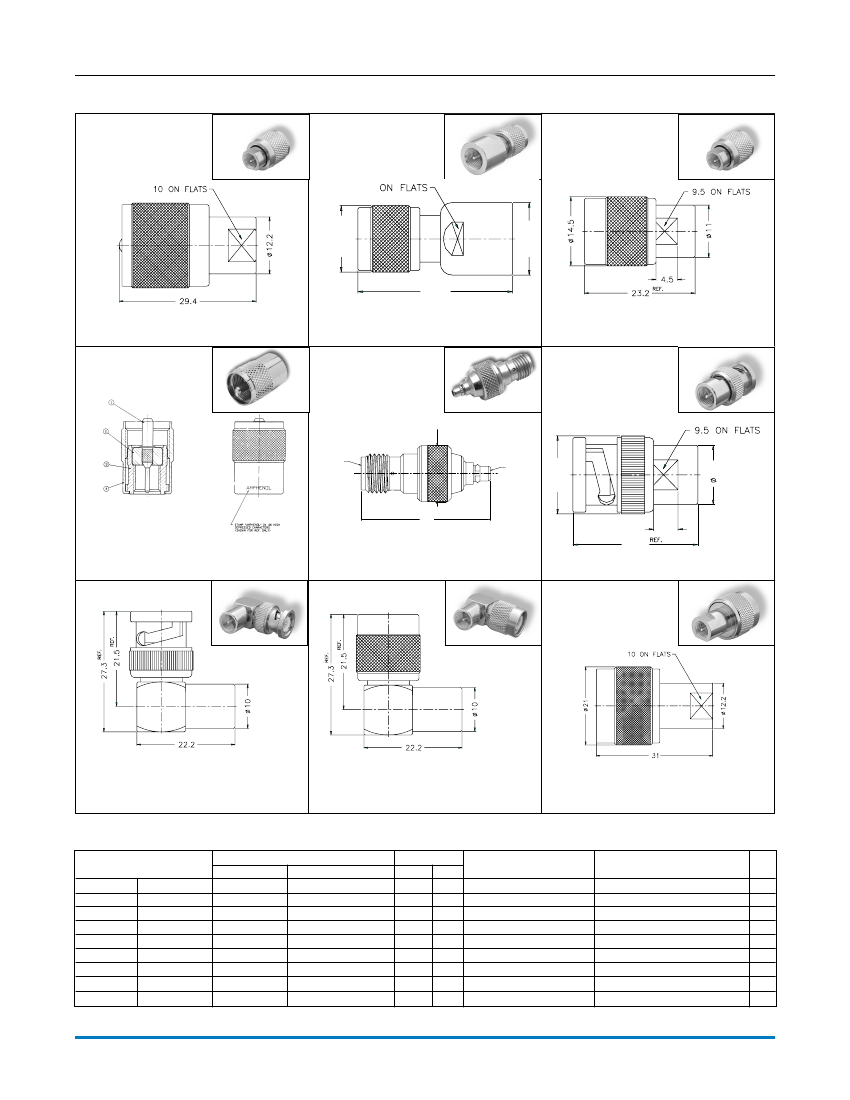

Preview

Download Datasheet

View All

Adapters, Between Series

Plug to Plug or Plug to Jack

Fig. 1

Fig. 2

Fig. 3

Amphenol

.437

(11.1)

.452

(ø11.5)

FME Plug to UHF Plug

81-193-RFX

Fig. 4

Fig. 5

FME Plug to Mini-UHF Plug

81-161

Fig. 6

FME Plug to TNC Plug

81-162

.374

Ø.354

(9.0)

MICROMATE

PLUG

INTERFACE

.823

(20.9)

.177

(4.5)

UHF Plug to Mini-UHF Plug

83-910-RFX

Fig. 7

MMCX Plug to SMA Jack Adapter

908-31100

Fig. 8

Fig. 9

FME Plug to BNC Plug

81-189-RFX

FME Plug to BNC Plug

Right Angle Adapter

81-190-RFX

FME Plug to TNC Plug

Right Angle Adapter

81-191-RFX

FME Plug to N Plug

81-192-RFX

ADAPTERS — PLUG TO PLUG OR PLUG TO JACK

Dimension, inch (millemeters)

Adapter Ends

FME Plug

UHF Plug

1.16 (29.4)

.480 (12.2)

FME Plug Mini-UHF Plug .492 (12.5)

1.04 (26.5)

FME Plug

TNC Plug

.913 (23.2)

.571 (14.5)

UHF Plug Mini-UHF Plug 1.04 (26.4)

.750 (19.1)

MMCX Plug SMA Jack

.823 (20.9)

.354 (9.0)

BNC Plug

FME Plug

.913 (23.2)

.571 (9.0)

BNC Plug

FME Plug

1.07 (27.3)

.874 (22.2)

FME Plug

TNC Plug

1.07 (27.3)

.874 (22.2)

FME Plug

N Plug

1.22 (31.0)

.480 (12.2)

Notes

Plt. Ins.

D23

P11

D23

Description

Straight

Right Angle

Straight

Amphenol Number

81-193-RFX

81-161

81-162

83-910-RFX

908-31100

81-189-RFX

81-190-RFX

81-191-RFX

81-192-RFX

(11)

.433

INTERFACE PER

MIL-STD-348

SMA SERIES

Fig.

Amphenol Corporation Tel: 800-627-7100

www.amphenolrf.com

218

81-190-RFX Related Products

	81-190-RFX	81-162	81-189-RFX	81-191-RFX	81-192-RFX	81-193-RFX	83-910-RFX
Description	RF Connector Adapter, BNC-FME, Male-Male, Plug-plug	RF Connector Adapter, FME-TNC, Male-Male, Plug-plug	RF Connector Adapter, BNC-FME, Male-Male, Plug-plug	RF Connector Adapter, FME-TNC, Male-Male, Plug-plug	RF Connector Adapter, FME-N, Male-Male, Plug-plug	RF Connector Adapter, FME-UHF, Male-Male, Plug-plug	RF Connector Adapter, UHF-UHF, Male-Male, Plug-plug
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Adapter type	BNC-FME	FME-TNC	BNC-FME	FME-TNC	FME-N	FME-UHF	UHF-UHF
Body/casing type	PLUG-PLUG	PLUG-PLUG	PLUG-PLUG	PLUG-PLUG	PLUG-PLUG	PLUG-PLUG	PLUG-PLUG
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER
Contact point gender	MALE-MALE	MALE-MALE	MALE-MALE	MALE-MALE	MALE-MALE	MALE-MALE	MALE-MALE
Coupling type	BAYONET-THREADED	THREADED-THREADED	BAYONET-THREADED	THREADED-THREADED	THREADED-THREADED	THREADED-THREADED	THREADED-THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	81-190	81-162	81-189	81-191	81-192	81-193	83-910
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	NO	NO	NO
