54ABT240/B2A datasheet, PDF - EEWORLD Datasheet

54ABT240/B2A: DescriptionBus Driver, 2-Func, 4-Bit, Inverted Output, CQCC20,; Categorylogic logic; File Size118KB，4 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

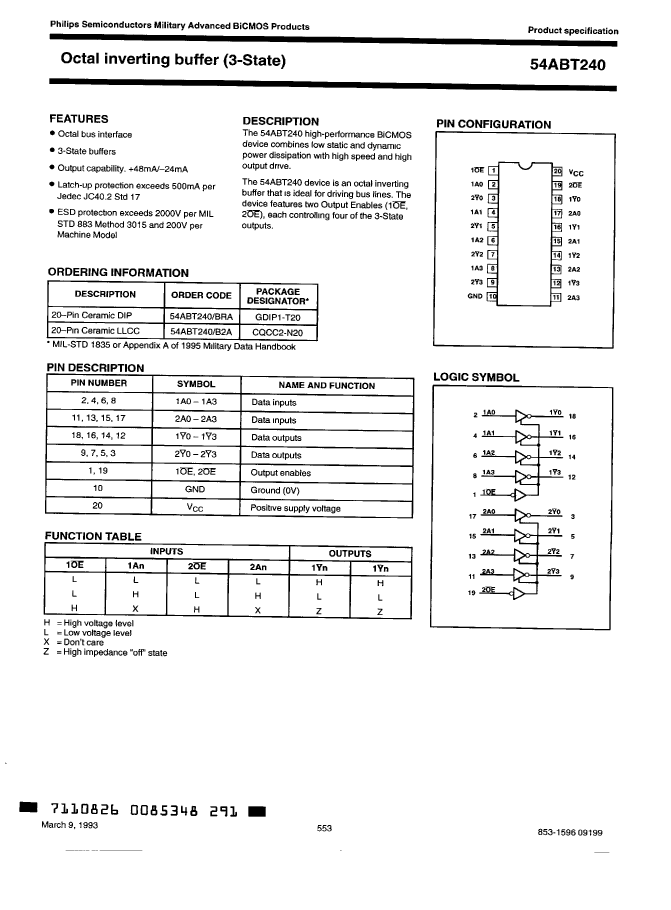

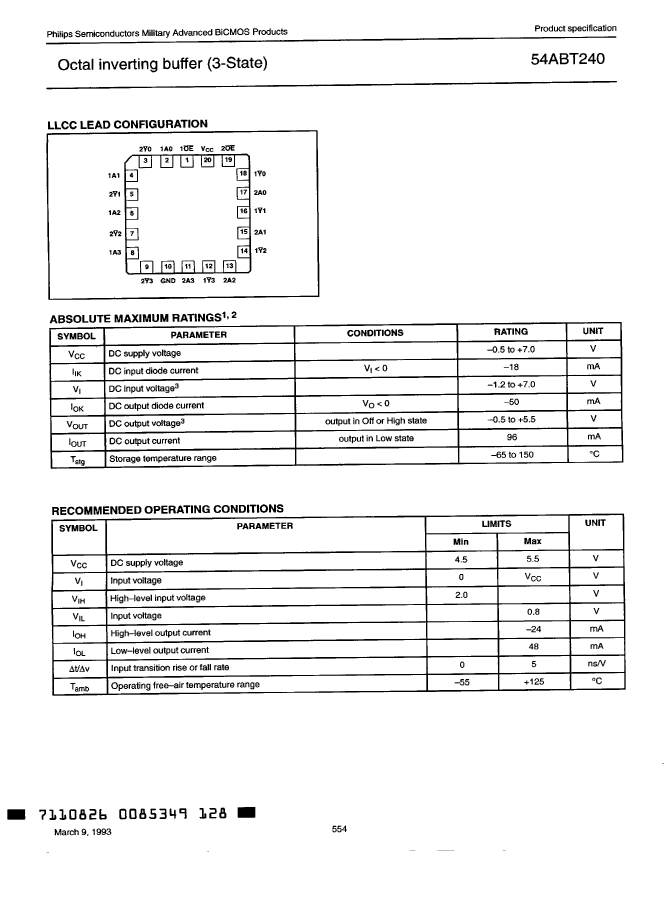

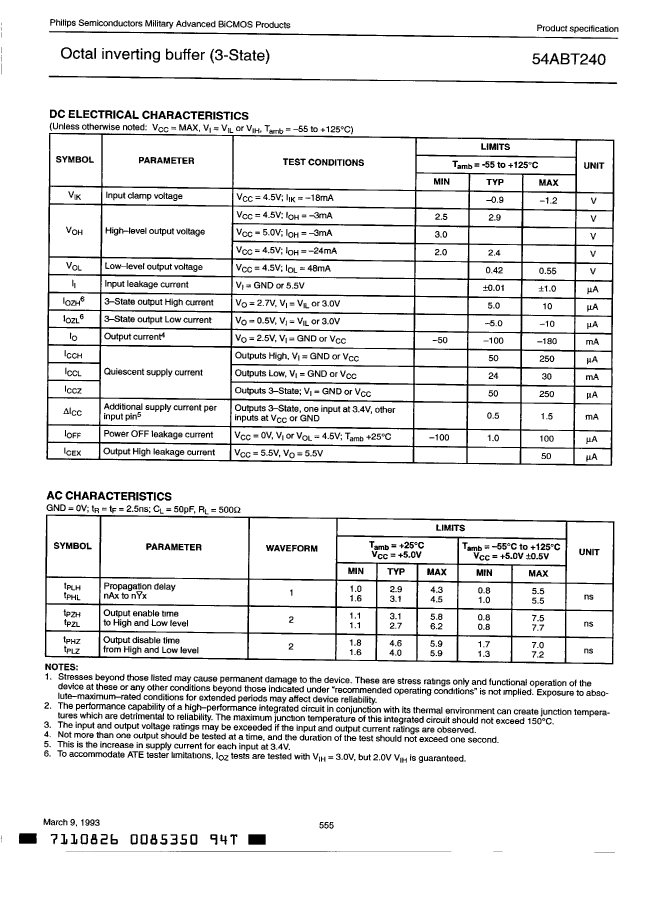

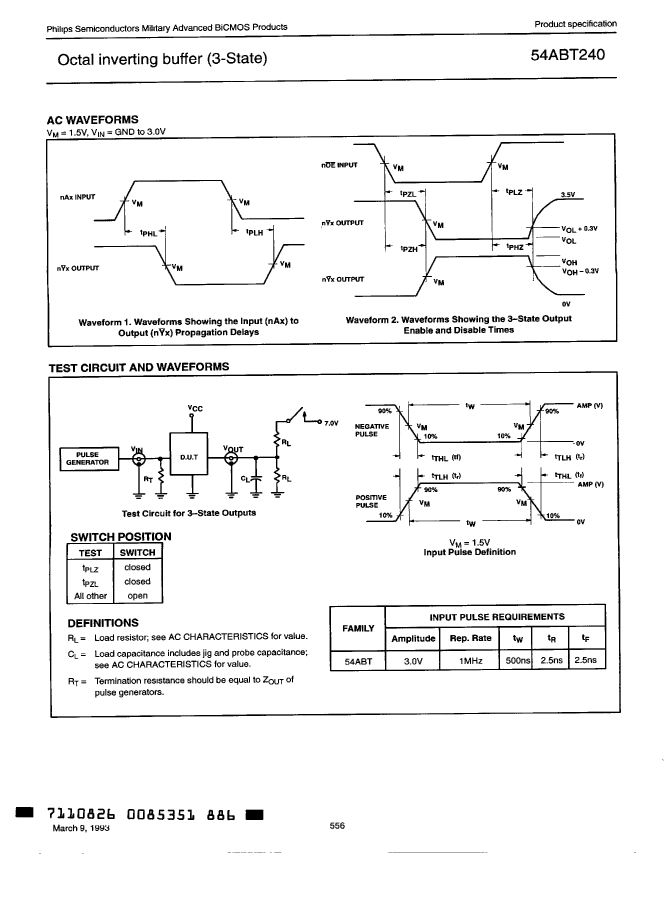

54ABT240/B2A Overview

Bus Driver, 2-Func, 4-Bit, Inverted Output, CQCC20,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown
Control type	ENABLE LOW
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.048 A
Number of digits	4
Number of functions	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Maximum supply current (ICC)	30 mA
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer

	54ABT240/B2A	54ABT240/BRA
Description	Bus Driver, 2-Func, 4-Bit, Inverted Output, CQCC20,	Bus Driver, 2-Func, 4-Bit, Inverted Output, CDIP20,
Is it Rohs certified?	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	QCCN, LCC20,.35SQ	DIP, DIP20,.3
Reach Compliance Code	unknown	unknown
Control type	ENABLE LOW	ENABLE LOW
JESD-30 code	S-XQCC-N20	R-XDIP-T20
JESD-609 code	e0	e0
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.048 A	0.048 A
Number of digits	4	4
Number of functions	2	2
Number of terminals	20	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED
Package body material	CERAMIC	CERAMIC
encapsulated code	QCCN	DIP
Encapsulate equivalent code	LCC20,.35SQ	DIP20,.3
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE
power supply	5 V	5 V
Maximum supply current (ICC)	30 mA	30 mA
Certification status	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL
Base Number Matches	1	1
