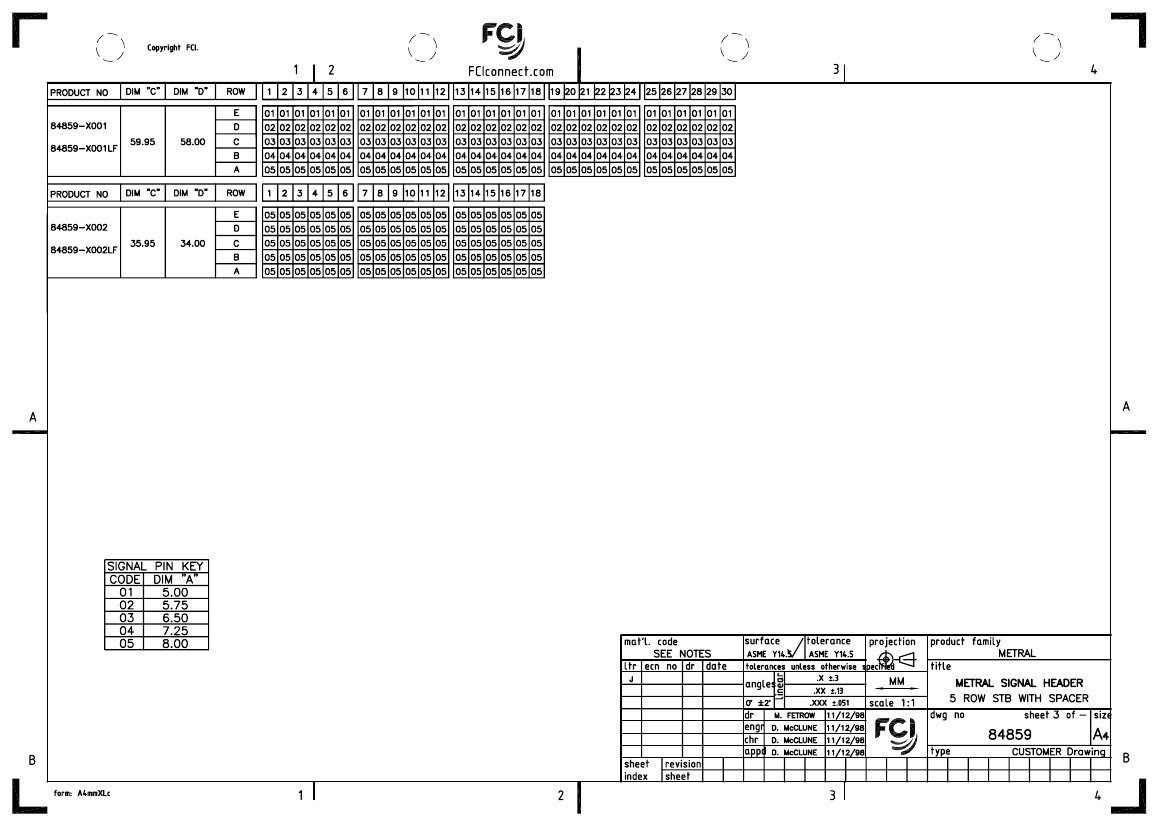

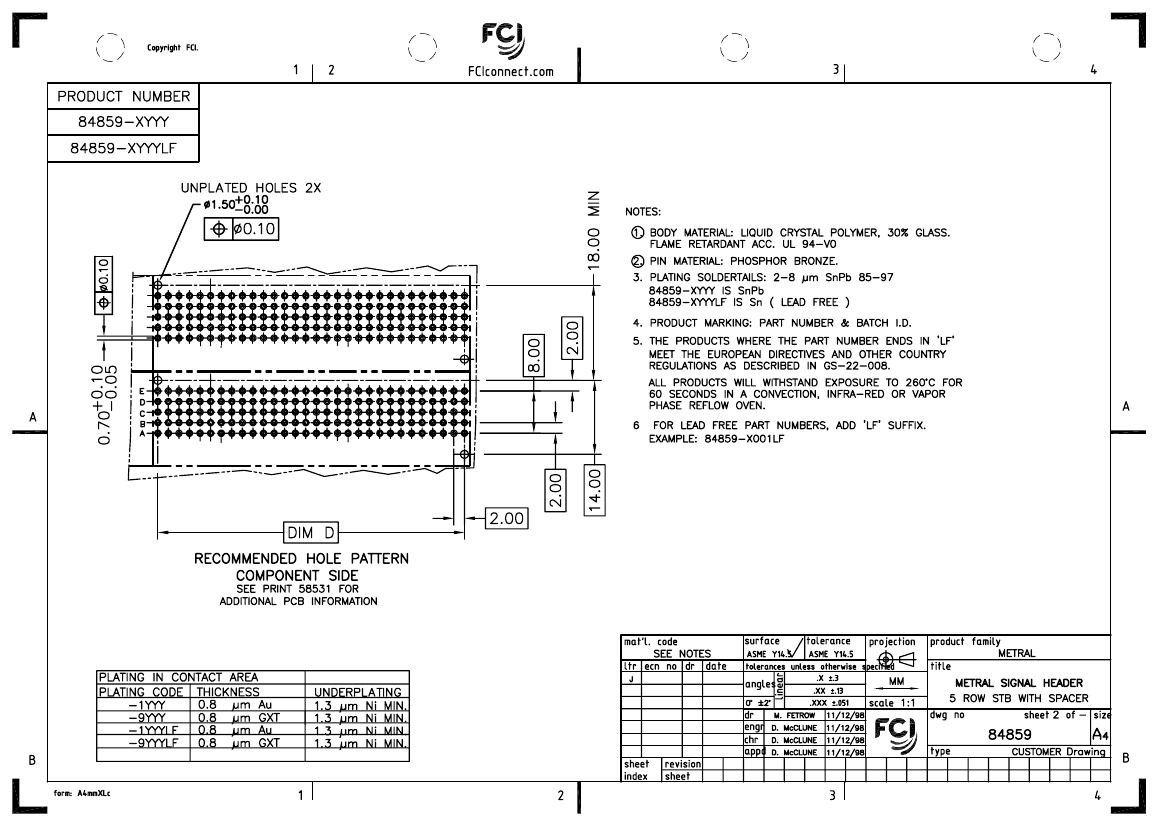

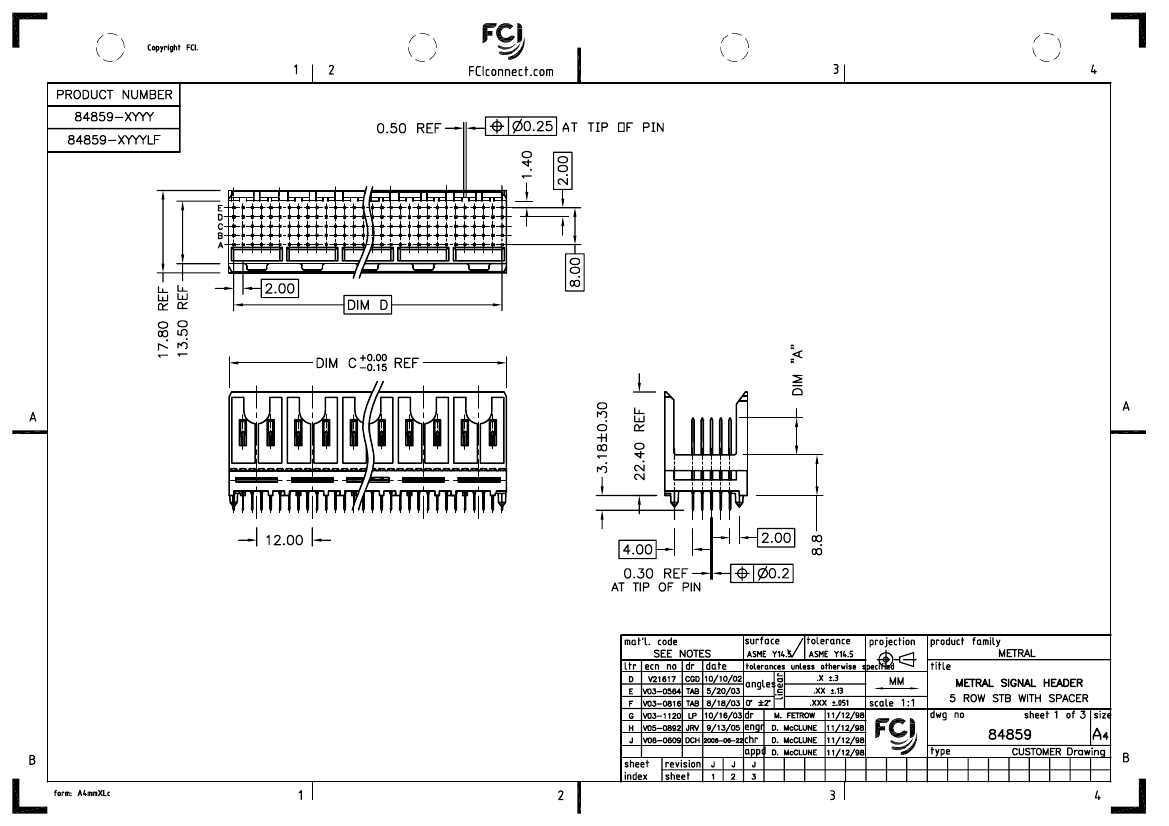

Preview

84859-9001LF: DescriptionBoard Connector, 150 Contact(s), 5 Row(s), Male, Straight, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size222KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

84859-9001LF Overview

Board Connector, 150 Contact(s), 5 Row(s), Male, Straight, Solder Terminal, LEAD FREE

84859-9001LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	84859
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	150
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

PDM: Rev:J

STATUS:

Released

Printed: May 16, 2009

.

84859-9001LF Related Products

	84859-9001LF	84859-1001LF	84859-9002LF	84859-9002	84859-1002	84859-1001	84859-9001
Description	Board Connector, 150 Contact(s), 5 Row(s), Male, Straight, Solder Terminal, LEAD FREE	5 ROW VERT HDR STB W/SPA-CER-60	Board Connector, 90 Contact(s), 5 Row(s), Male, Straight, Solder Terminal, LEAD FREE	Board Connector, 90 Contact(s), 5 Row(s), Male, Straight, Solder Terminal	Board Connector, 90 Contact(s), 5 Row(s), Male, Straight, Solder Terminal	Board Connector, 150 Contact(s), 5 Row(s), Male, Straight, Solder Terminal	Board Connector, 150 Contact(s), 5 Row(s), Male, Straight, Solder Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	84859	84859	84859	84859	84859	84859	84859
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	150	150	90	90	90	150	150
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	-
Base Number Matches	1	-	1	1	1	1	1
