5KP13 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 5KP13

5KP13: Description5000 W, UNIDIRECTIONAL, SILICON, TVS DIODE; CategoryDiscrete semiconductor diode; File Size155KB，3 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5KP13 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5KP13	-	-	View	Buy Now

5KP13 Overview

5000 W, UNIDIRECTIONAL, SILICON, TVS DIODE

5KP13 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SEMIKRON
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum breakdown voltage	18.2 V
Minimum breakdown voltage	14.4 V
Breakdown voltage nominal value	16.3 V
Shell connection	ISOLATED
Maximum clamping voltage	23.8 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	O-PALF-W2
JESD-609 code	e2
Maximum non-repetitive peak reverse power dissipation	5000 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-50 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	8 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	13 V
surface mount	NO
technology	AVALANCHE
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

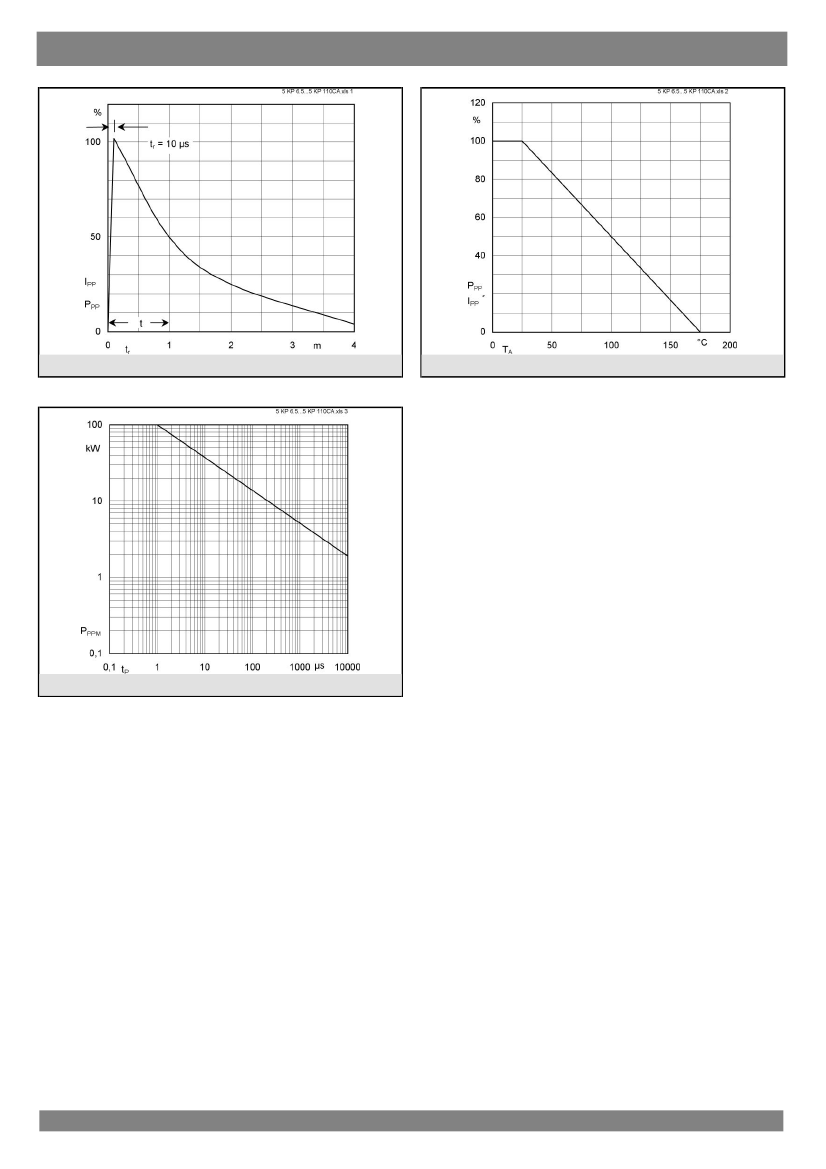

Preview

Download Datasheet

View All

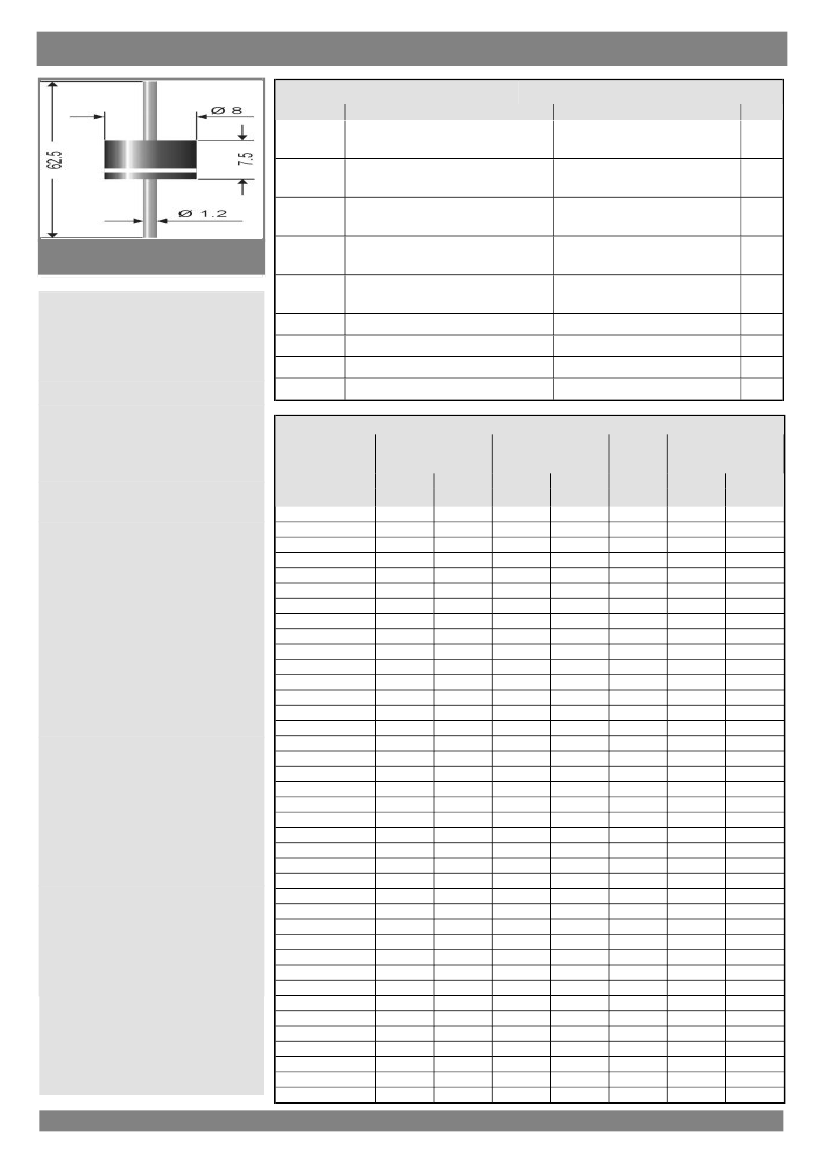

5 KP6,5...5 KP110CA

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Axial lead diode

Unidirectional and

bidirectional Transient

Voltage Suppressor

diodes

5 KP6,5...5 KP110CA

Pulse Power

Dissipation: 5000 W

Maximum Stand-off

voltage: 6,5 ... 110 V

Features

Mechanical Data

02-04-2004 SCT

5KP13 Related Products

	5KP13	5KP6.5	5KP6.5A	5KP7.0	5KP7.0A	5KP100	5KP100A	5KP110	5KP110A	5KP110CA
Description	5000 W, UNIDIRECTIONAL, SILICON, TVS DIODE	5000 W, UNIDIRECTIONAL, SILICON, TVS DIODE	5000 W, UNIDIRECTIONAL, SILICON, TVS DIODE	5000 W, UNIDIRECTIONAL, SILICON, TVS DIODE	5000 W, UNIDIRECTIONAL, SILICON, TVS DIODE	5000 W, UNIDIRECTIONAL, SILICON, TVS DIODE	5000 W, UNIDIRECTIONAL, SILICON, TVS DIODE	5000 W, UNIDIRECTIONAL, SILICON, TVS DIODE	5000 W, UNIDIRECTIONAL, SILICON, TVS DIODE	5000 W, BIDIRECTIONAL, SILICON, TVS DIODE
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Contacts	2	2	2	2	2	2	2	2	2	2
Reach Compliance Code	compliant	compliant	compli	compliant	compliant	compliant	compli	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum breakdown voltage	18.2 V	9.14 V	8.3 V	9.86 V	8.95 V	141 V	128 V	154.5 V	140.5 V	140.5 V
Minimum breakdown voltage	14.4 V	7.22 V	7.22 V	7.78 V	7.78 V	111 V	111 V	122 V	122 V	122 V
Breakdown voltage nominal value	16.3 V	8.18 V	7.76 V	8.82 V	8.37 V	126 V	119.5 V	138.25 V	131.25 V	131.25 V
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Maximum clamping voltage	23.8 V	12.3 V	11.2 V	13.3 V	12 V	179 V	162 V	196 V	177 V	177 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
JESD-609 code	e2	e2	e2	e2	e2	e2	e2	e2	e2	e2
Maximum non-repetitive peak reverse power dissipation	5000 W	5000 W	5000 W	5000 W	5000 W	5000 W	5000 W	5000 W	5000 W	5000 W
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	BIDIRECTIONAL
Maximum power dissipation	8 W	8 W	8 W	8 W	8 W	8 W	8 W	8 W	8 W	8 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	13 V	6.5 V	6.5 V	7 V	7 V	100 V	100 V	110 V	110 V	110 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal surface	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	SEMIKRON	SEMIKRON	-	SEMIKRON	SEMIKRON	SEMIKRON	-	SEMIKRON	SEMIKRON	-
Base Number Matches	1	-	1	-	-	1	1	1	-	1
