31-5633 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 31-5633

31-5633: DescriptionRF BNC Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size189KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

31-5633 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-5633	-	-	View	Buy Now

31-5633 Overview

RF BNC Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Locking, Receptacle

31-5633 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	INSERTION LOSS MAX AT 3 GHZ
body width	0.614 inch
subject depth	1.393 inch
body length	0.567 inch
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact style	COAX
Coupling type	BAYONET
DIN compliance	NO
Dielectric withstand voltage	2100VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insertion loss	0.2 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	BNC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating frequency	4 GHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	YES
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	ZINC
Terminal length	0.157 inch
Termination type	SOLDER
Total number of contacts	1
voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

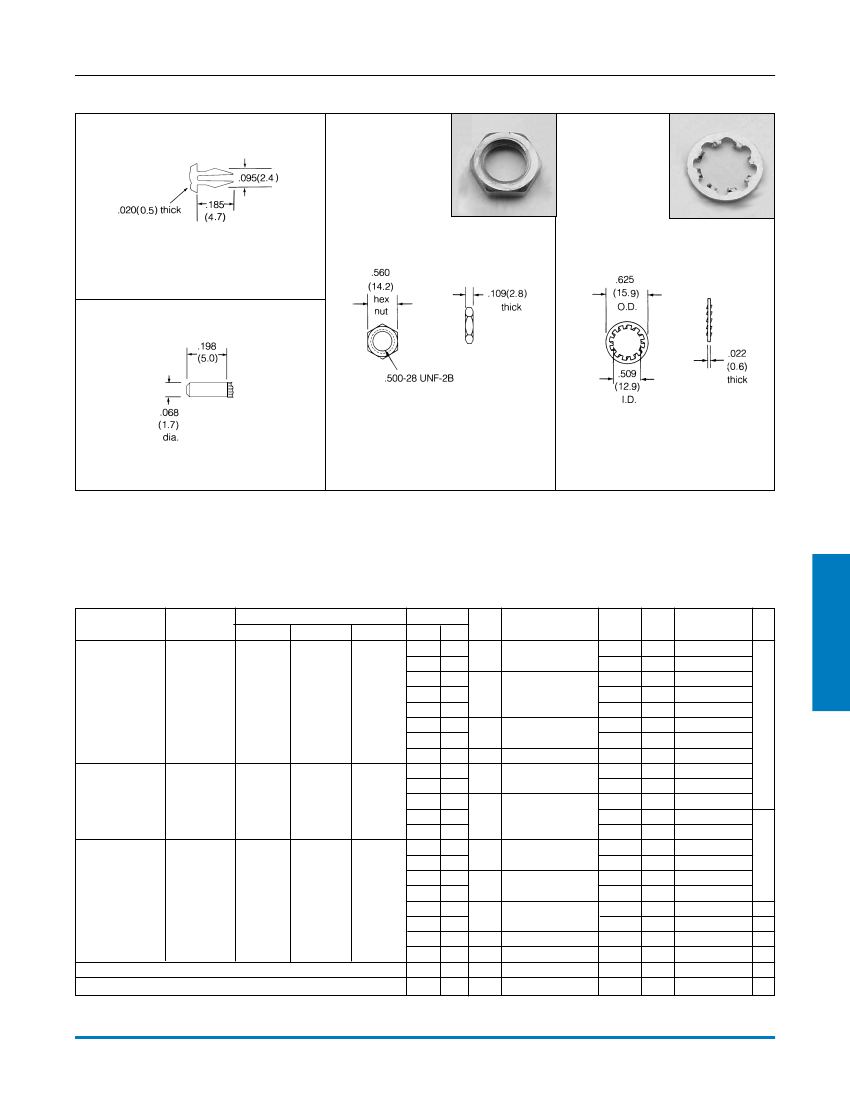

BNC 50 ohm

PCB Receptacles and Accessories

Fig. 4

Fig. 5

Amphenol

BNC

Fork Pin holds connectors rigidly to

P.C. Board for high temperature and mass

production assembly

Round Pin (Standard)

Pkg. of 100, Hex Nut

for BNC Bulkhead PCB Receptacles

31-5652v

Nickel Plated

Pkg. of 100, Lockwasher

for BNC PCB Bulkhead Receptacles

31-5653v

Nickel Plated

BNC

BNC PRINTED CIRCUIT BOARD BULKHEAD RECEPTACLES AND ACCESSORIES

Description

Terminal

Type

Dimensions, inches (millimeters)

Notes

Plt.

P26

Standard Height

Printed Circuit

Angle Bulkhead

Receptacle (J)✩

Blunt Posts

for Signal

& Ground

1.40(35.6)

.810(20.6)

.250(6.4)

P26

P25

P26

P25

P26

Low Profile

Printed Circuit

Angle Bulkhead

Receptacle (J)✩

Vertical

Printed Circuit

Bulkhead

Receptacle (J)✩

Blunt Posts

for Signal

& Ground

1.40(35.6)

.810(20.6)

.250(6.4)

Blunt Posts

for Signal

& Ground

1.40(35.6)

.810(20.6)

.250(6.4)

P26

P25

Hex Nut for BNC Bulkhead PCB Receptacles, Package of 100 ea.

Lockwasher for BNC Bulkhead PCB Receptacles, Package of 100 ea.

Ins.

D17

D20

D22

D17

D20

D22

D17

D20

D22

D13

D20

—

Mtg.

Hole

R/P

Iso. Black Housing

R/P

V/P

R/P

—

Metal Housing

Iso. White Housing

Iso. Black Housing

Metal Housing

Iso. White Housing

Iso. Black Housing

Metal Housing

Iso. White Housing

Nickel Plated

Notes

MTG.

Type

Imp

50Ω

—

Amphenol

Number

31-5431

31-5431-1010

31-5538

31-5538-1010

31-5538-10RFX

31-5640

31-5640-1010

31-5431-10RFX

31-5486

31-5486-1010

31-5540

31-5540-1010

31-5637

31-5493

31-5493-1010

31-5539

31-5539-1010

31-5633

31-5633-1010

31-5486-10RFX

31-5540-10RFX

31-5652

31-5653

Fig.

Iso. White Housing

Round

Fork

Round

Fork

Stamp

Round

Fork

Round

Fork

Round

Fork

Round

Fork

Round

Fork

Round

Fork

—

R/P Iso. Black Housing

✩

Jam nuts and lockwashers sold separately. See Figs. 4 & 5

distributor stocked

Amphenol Corporation Tel: 800-627-7100

www.amphenolrf.com

117
