3SK133A-T2BU45 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 3SK133A-T2BU45

Preview

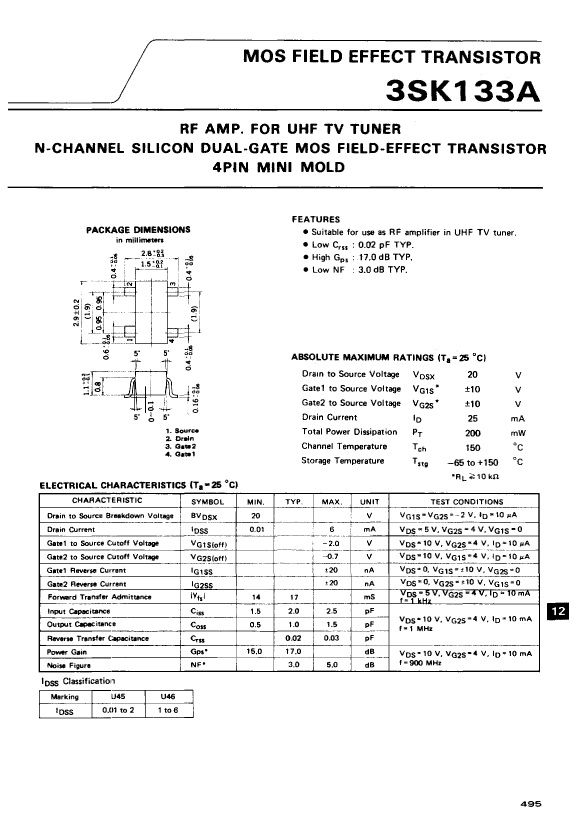

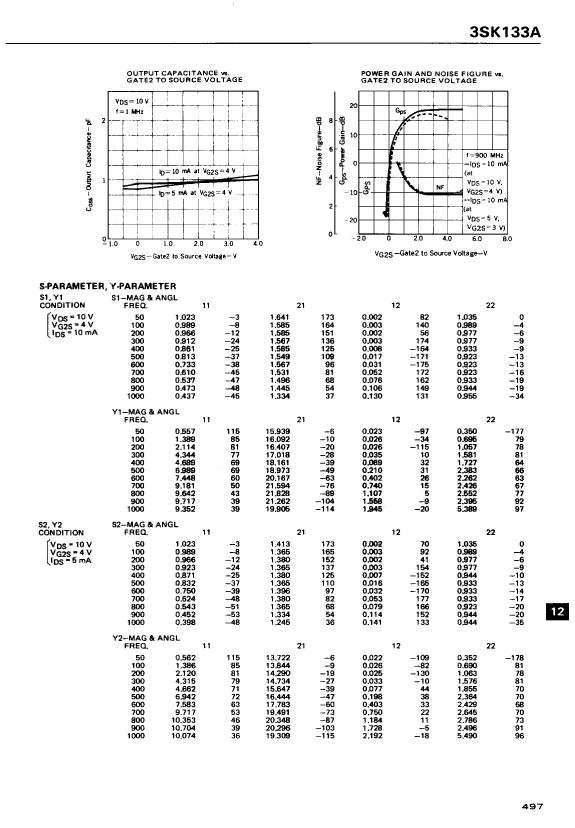

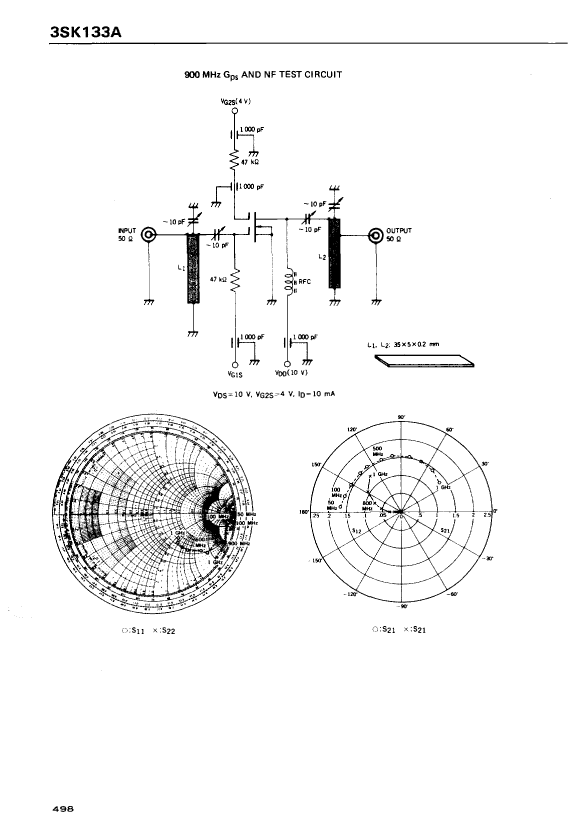

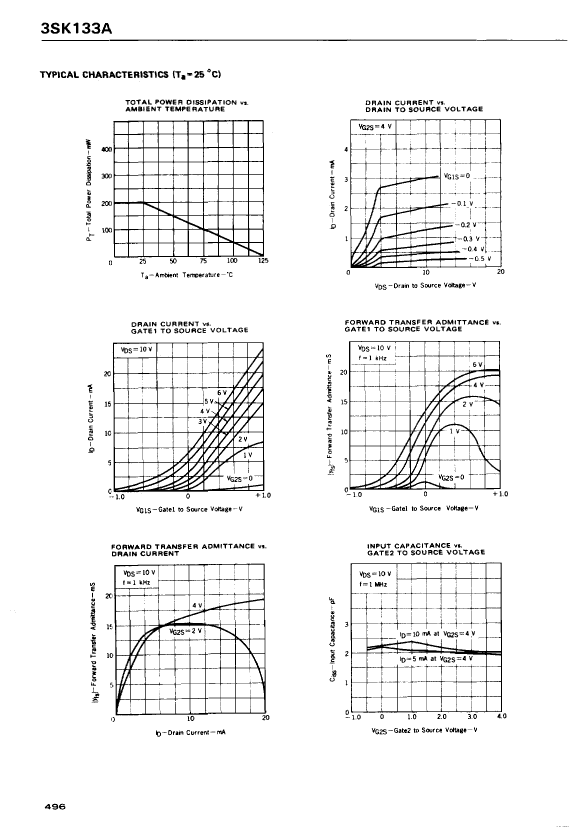

3SK133A-T2BU45: DescriptionRF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET, PLASTIC, SC-59, 4 PIN; CategoryDiscrete semiconductor The transistor; File Size127KB，4 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

3SK133A-T2BU45 Overview

RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET, PLASTIC, SC-59, 4 PIN

3SK133A-T2BU45 Parametric

Parameter Name	Attribute value
Maker	NEC Electronics
package instruction	PLASTIC, SC-59, 4 PIN
Reach Compliance Code	unknown
Shell connection	SOURCE
Configuration	SINGLE
Maximum drain current (ID)	0.025 A
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	0.03 pF
highest frequency band	ULTRA HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G4
Number of components	1
Number of terminals	4
Operating mode	DUAL GATE, DEPLETION MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	N-CHANNEL
Minimum power gain (Gp)	15 dB
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

3SK133A-T2BU45 Related Products

	3SK133A-T2BU45	3SK133A-LU46	3SK133A-T1BU45	3SK133A-T2BU46	3SK133A-LU45	3SK133A-T1BU46
Description	RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET, PLASTIC, SC-59, 4 PIN	RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET, PLASTIC, SC-59, 4 PIN	RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET, PLASTIC, SC-59, 4 PIN	RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET, PLASTIC, SC-59, 4 PIN	RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET, PLASTIC, SC-59, 4 PIN	RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET, PLASTIC, SC-59, 4 PIN
package instruction	PLASTIC, SC-59, 4 PIN	PLASTIC, SC-59, 4 PIN	PLASTIC, SC-59, 4 PIN	PLASTIC, SC-59, 4 PIN	PLASTIC, SC-59, 4 PIN	PLASTIC, SC-59, 4 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Shell connection	SOURCE	SOURCE	SOURCE	SOURCE	SOURCE	SOURCE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum drain current (ID)	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	0.03 pF	0.03 pF	0.03 pF	0.03 pF	0.03 pF	0.03 pF
highest frequency band	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4
Number of components	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4
Operating mode	DUAL GATE, DEPLETION MODE	DUAL GATE, DEPLETION MODE	DUAL GATE, DEPLETION MODE	DUAL GATE, DEPLETION MODE	DUAL GATE, DEPLETION MODE	DUAL GATE, DEPLETION MODE
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Minimum power gain (Gp)	15 dB	15 dB	15 dB	15 dB	15 dB	15 dB
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Maker	NEC Electronics	-	-	NEC Electronics	NEC Electronics	NEC Electronics
Base Number Matches	1	1	1	1	1	-
