31-71001 datasheet, PDF - EEWORLD Datasheet

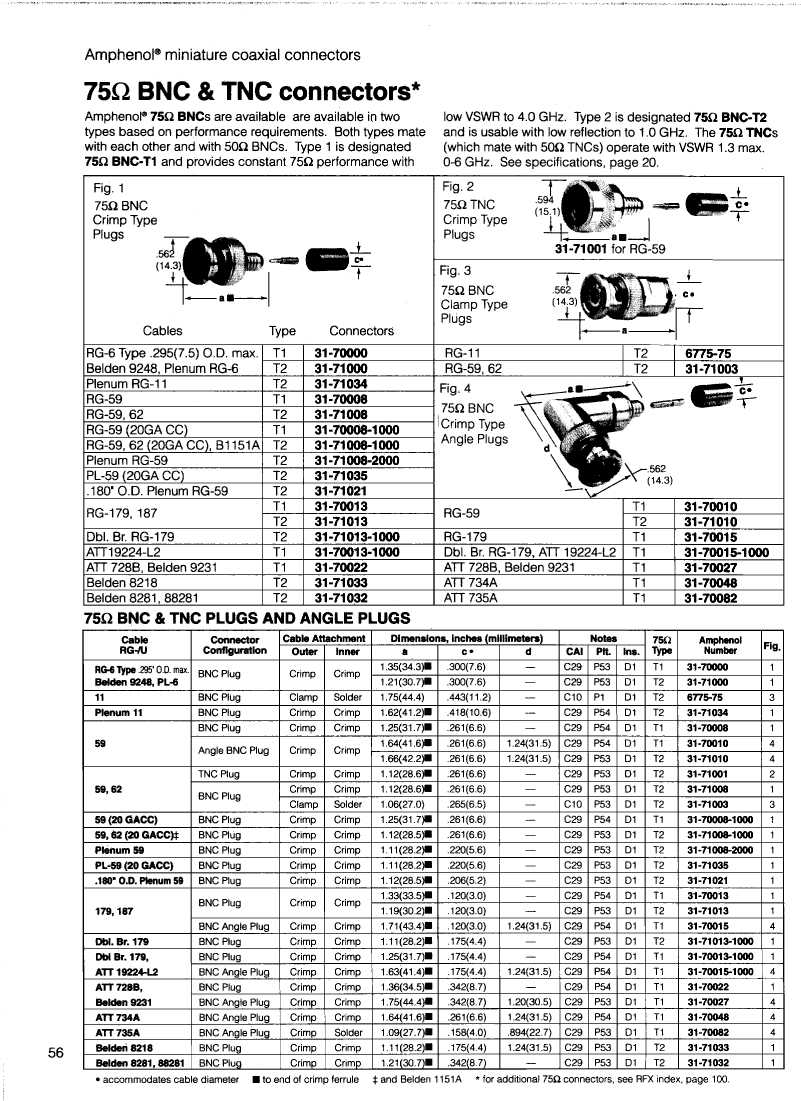

31-71001: DescriptionRF TNC Connector, Male, Cable Mount, Crimp Terminal, Plug; CategoryThe connector The connector; File Size93KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

31-71001 Overview

RF TNC Connector, Male, Cable Mount, Crimp Terminal, Plug

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	VSWR MAX AT 6GHZ
Body/casing type	PLUG
Characteristic impedance	75 Ω
Connector type	RF TNC CONNECTOR
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PTFE
MIL compliance	NO
Manufacturer's serial number	TNC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	11 GHz
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.3
Base Number Matches	1

	31-71001	31-70048	31-70010	31-70027	31-71021
Description	RF TNC Connector, Male, Cable Mount, Crimp Terminal, Plug	RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug,	RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug	RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug	RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	75 Ω	75 Ω	75 Ω	75 Ω	75 Ω
Connector type	RF TNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE
Coupling type	THREADED	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
insulator material	PTFE	PTFE	PTFE	PTFE	PTFE
MIL compliance	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Panel mounting	NO	NO	NO	NO	NO
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Base Number Matches	1	1	1	1	1
Manufacturer's serial number	TNC	-	BNC	BNC	BNC
