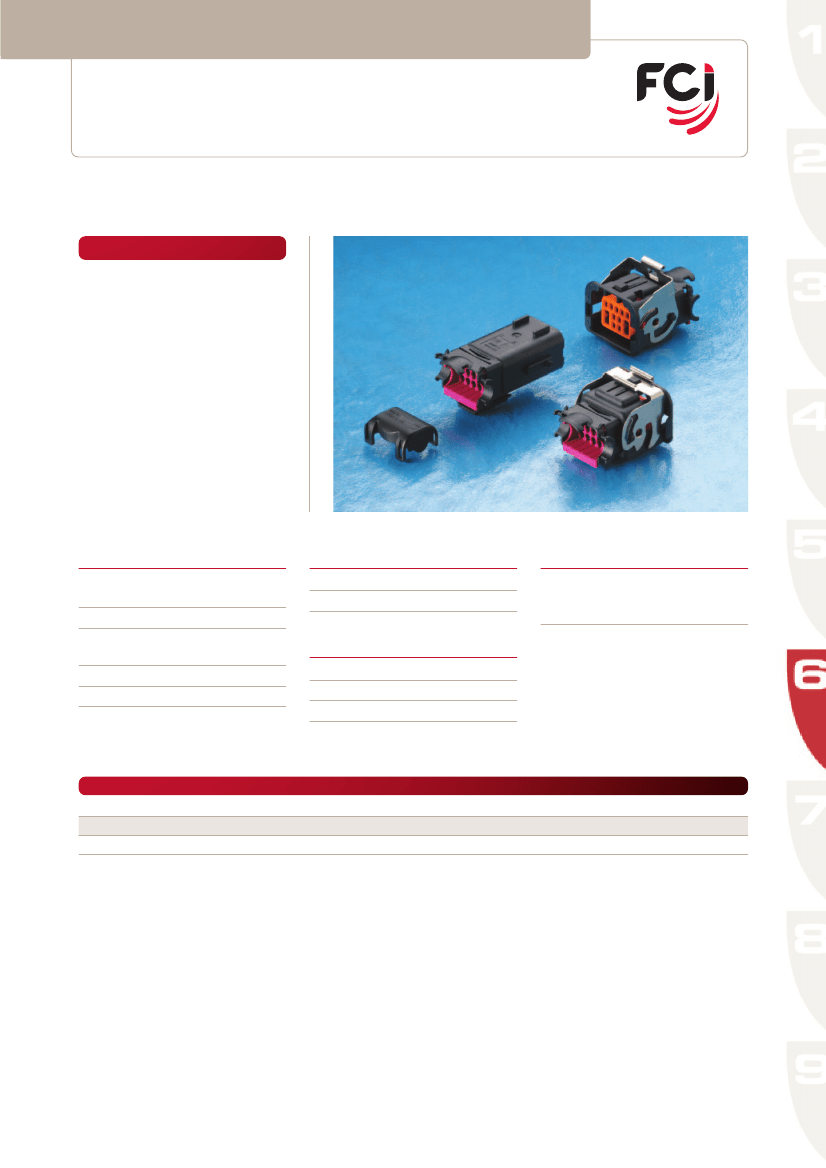

Engine Compartment Connectors
Coupling connectors
DCS-1 / DCS-2
11 way sealed connector system for 1.5 and 5.6 mm terminals
Features
•
11 position housings for 1.5 and
•
•
•
•
•
•
5.6 mm terminals
Circumferential interface seal
Waterproof application with single
wire sealing possible
Plastic locking feature and locking
latch as mating support
Terminal position assurance (TPA)
on rear side
Mechanical polarization
Cable protection cover
Performance characteristics
•
Temperature range:
from -40°C to +120°C
Construction
•
Housing material:
•
Interface seal:
PBT
Silicone
Connector compatibility
•
Useable terminals:
DCS-2 1.5 mm and DCS-1 Box
5.6 mm female terminals
•
Contact retention force:
•
Contact insertion force:
> 80 N
< 10 N
for 1.5 mm / < 20 N for 5.6 mm
< 80 N
IPX 9 K
Tooling
•
TPA removal tool:
•
Cavity plug:
consult us
•
Matable with:
DCS-2 1.5 mm and 5.6 mm male
terminals
•
Connector mating force:
•
Sealing protection:
•
Terminal removal tool: consult us
consult us
Part Numbers
3 043 16 01
3 053 05 01
3 099 12 01
No. of position
11
11
Terminal size
9 x [1.5 mm] / 2 x [5.6 mm]
9 x [1.5 mm] / 2 x [5.6 mm]
Type
Female housing
Male Housing
Cover
Colour
Black
Black
Black
6.97
Rev 01/04
Engine Compartment Connectors
Coupling connectors
DCS-1 / DCS-2
11 way sealed connector system for 1.5 and 5.6 mm terminals

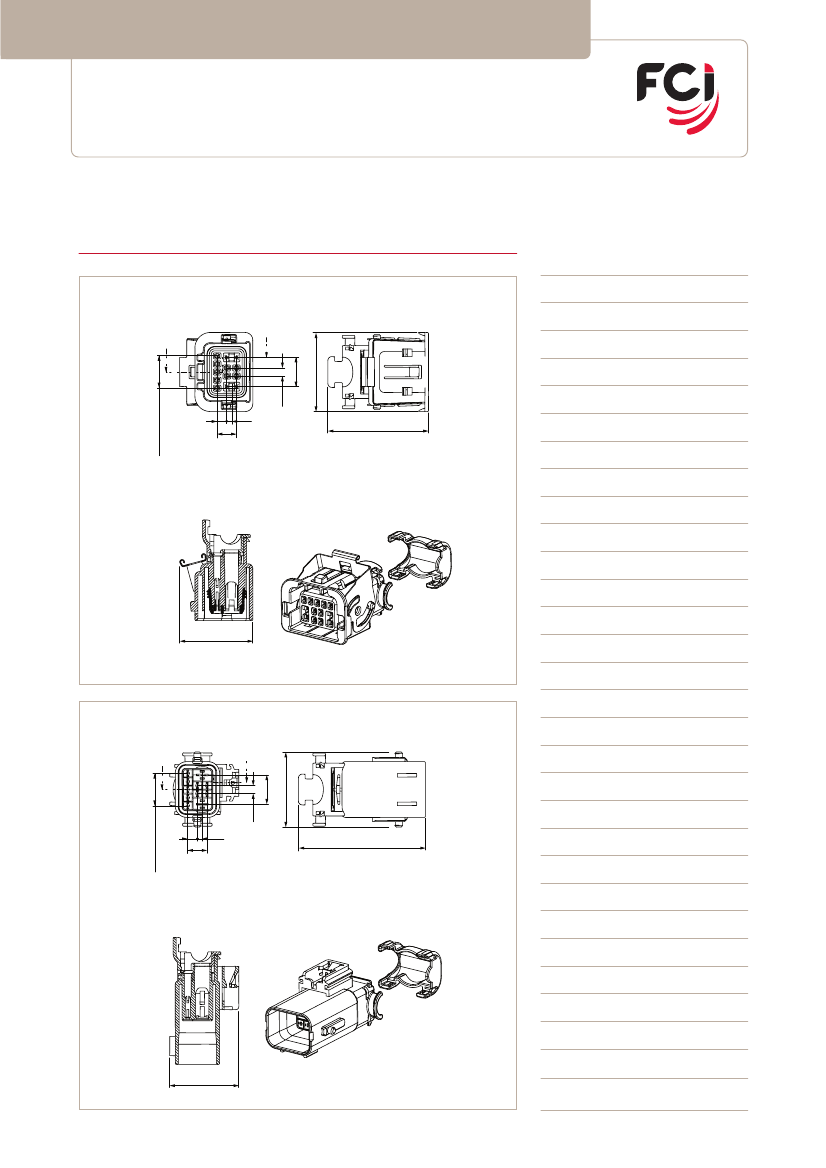

Dimensional characteristics
Notes :
Female housing
A
A
15.2
41
(4x4.2=)16.8
5
10
2.5
52.2
SECTION A-A
37.93
Male housing
A
A
15.2
39
(4x4.2=)16.8
5
10
2.5
65.9
SECTION A-A
4.2
4.2
37.93
1:1
6.98
Rev 01/04
