WaveReady™ WRT-780
Dual Multirate WDM Transponder (125 Mb/s–4.25 Gb/s)
Key Features
• Provides automatic rate detection (125 Mb/s–4.25 Gb/s)
• Supports flexible, pluggable SFP interfaces on both line
and client interfaces
• Supports both CWDM and DWDM line side optics
• Supports diagnostic loopback on all ports
• Supports 3R Regeneration on all ports
Flexible WDM Transport Solution

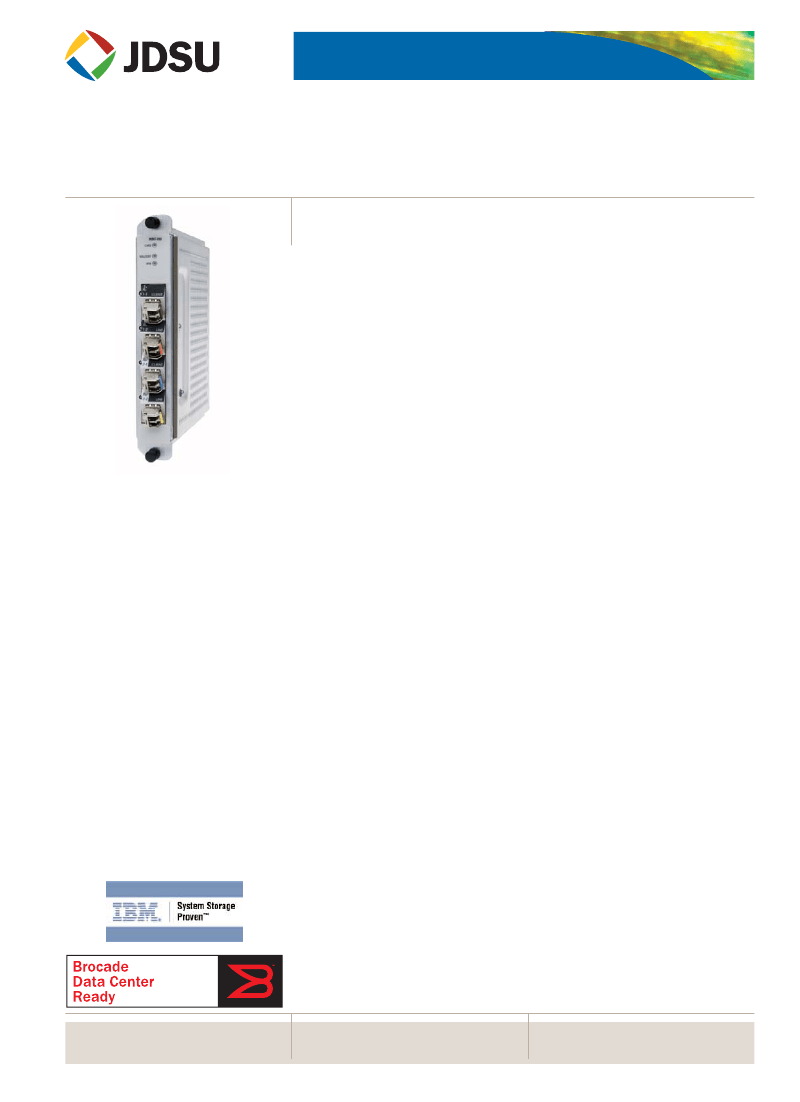

The JDSU WaveReady WRT-780 is a dual multirate transponder that can support
an extended number of services for both coarse (CWDM) and dense wavelength
division multiplexing (DWDM) transport applications. Due to its high flexibility
and density, the WRT-780 is the ideal transport solution for access and metro
wavelength division multiplexing (WDM) networks.
The module has two independent transponders that can transport traffic running
at different rates. The WRT-780 can also be used as a bidirectional four-port
regenerator. Its flexible pluggable (SFP) interfaces support a variety of trans-
ceivers on both client and line interfaces (850, 1310, and 1550 nm; DWDM; and
CWDM).
Applications
• Enables high-density DWDM and
CWDM transport networks
• Offers a cost-effective Ethernet over
WDM solution
• Extends the reach of SANs and Gigabit
Ethernet (GigE)
• Provides wavelength services and
metro optical access overlay
Automatic Rate Detection
The WRT-780 automatically detects incoming data rates so end-user provisioning
is not required. The WRT-780 supports 3R operation (reshape, retime, and
regenerate) at all supported rates between 125 Mb/s and 4.25 Gb/s.
Compliance
• Telcordia GR-253
• NEBS 3
• FCC Part 15, Class A device
• UL 60950-1 first edition
• Class 1 laser safety
• RoHS (exemptions 7b, 8a)
Simple and Easy to Manage
The WRT-780 can be managed using TL-1, simple network management protocol
(SNMP), or by using the WaveReady Node Manager graphical user interface. The
dual-transponder also supports manual data-rate provisioning, diagnostic
loopback for testing, optical power monitoring, and other features. These
functions facilitate fault location and correction and simplify operations required
by service management and service level agreements.
NORTH AMERICA
:
800 498-JDSU (5378)
WORLDWIDE
:
+800 5378-JDSU
WEBSITE
:
www.jdsu.com/waveready
WaveReady WRT-780
2
WRT-780 Dual Multirate WDM Transponder

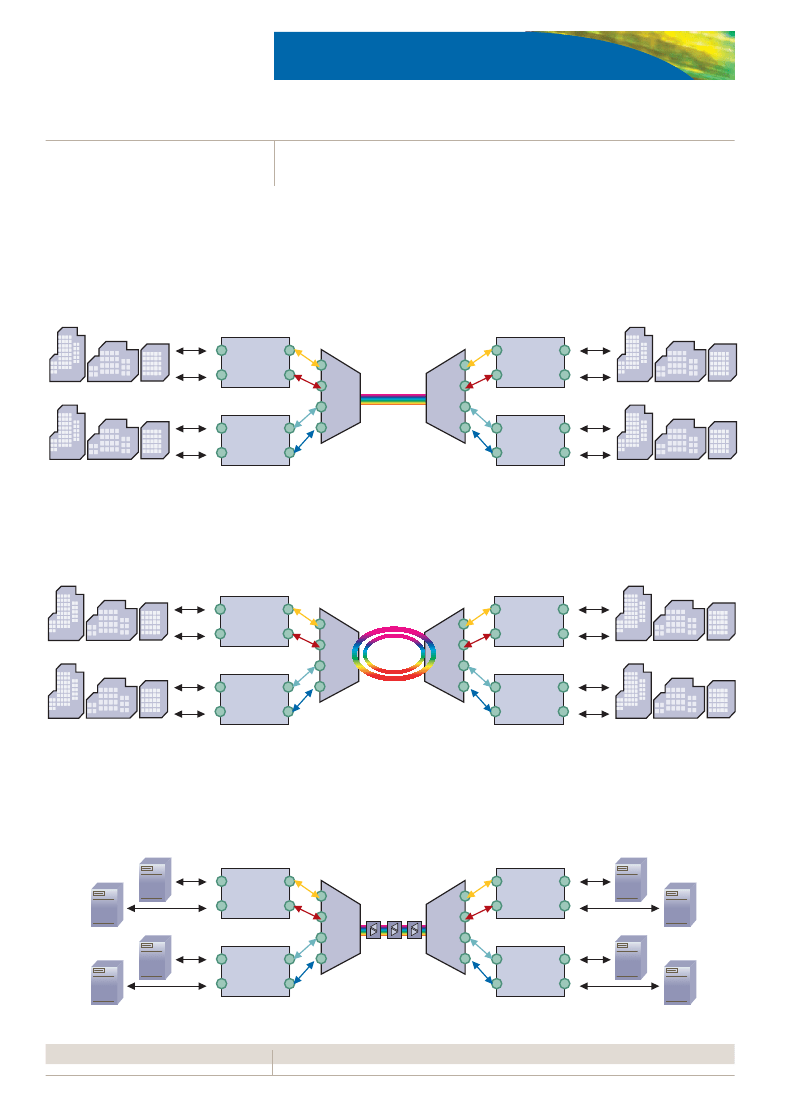

Because of its high density and flexibility, the WRT-780 enables reliable, scalable
and cost-effective transport solutions for both CWDM and/or DWDM networks.
The easy-to-use WRT-780 transponder combined with the plug-and-play features
of the WaveReady platform makes the turn-up of new services easy and simplifies
equipment management.
GigE
GigE
WRT-780
CWDM
WRT-780
GigE
GigE
FC
FC
WRT-780
WRT-780
FC
FC
Where extended reach is required, the WRT-780 can be combined with
WaveReady DWDM amplifiers and dispersion compensation modules to provide
a dense and compact DWDM transport solution.
OC-48
OC-48
WRT-780
WRA2
WRA2
DWDM
GigE
GigE
WRT-780
WRT-780
WRT-780
OC-48
OC-48
GigE
GigE
With the growing need to have storage area networks (SANs) extended over long
distances to support enterprise connectivity or disaster and recovery solutions, the
WRT-780 can be combined with the WaveReady WDM platform to offer a simple,
reliable, and cost-effective SAN transport solution.
4.25 Gb/s
4.25 Gb/s
WRT-780
Dual
Transponder
SAN Extension
over DWDM
WRT-780
Dual
Transponder
4.25 Gb/s
4.25 Gb/s
SAN Switches
4.25 Gb/s
4.25 Gb/s
WRT-780
Dual
Transponder
WRT-780
Dual
Transponder
4.25 Gb/s
4.25 Gb/s
SAN Switches
SAN Switches
SAN Switches
WaveReady WRT-780
3
The following table lists data rates that the WRT-780 supports:
Protocol
Fast Ethernet
SONET OC-3/SDH STM-1
ESCON
Ficon/Fibre Channel 25FC
Ficon/Fibre Channel FC50
SONET OC-12/SDH STM-4
Ficon/Fibre Channel FC100
Gigabit Ethernet
HD-SDI SMPTE 292M
Ficon/Fibre Channel FC200
SONET OC-48/SDH STM-16
SONET OC-48 FEC (G.709 OTU1)
IEEE802.3 10GBaseLX4
Ficon/Fibre Channel FC400
Bit Rate (Mb/s)
125
155.52
200
265.63
531.25
622.08
1062.5
1250
1485
2125
2488.32
2666.06
3125
4250
WaveReady WRT-780
4
Electrical Specifications
1
Parameter
DC supply voltage
Power dissipation
Alarm relay signals
Minimum
Typical
Maximum
—
–48 V
—
—
10 W
16 W
2
Dry contact major and minor alarms. Relay open under
normal operation. Relay closed when power is off.
1. Electrical specifications assume installation in a WaveReady 3500F shelf (DMS-3500FSE03).
2. Assumes 4 DWDM SFPs are installed in the WRT-780.
Physical Specifications
Parameter
Size (H x W x L)
Weight (approximate)
Typical
17.5 x 2.5 x 22.3 cm (6.8 x 1 x 8.8 in)
1.4 kg (3.1 lbs)
Environmental Specifications
Parameter
Normal operating temperature
Extended operating temperature
Storage temperature
Relative humidity (non-condensing)
Minimum
0°C
–5°C
–40°C
5%
Typical
—
—
—
—
Maximum
40°C
55°C
85°C
90%
Interface Specifications
Interface
Optical
Craft
TL1/SNMP
Description
LC/PC on all ports
Requires WaveReady 3100 or 3500F series shelf and a WaveReady COM200 communications
module. Craft access through RS-232/DB-9 connector on front panel of COM200 module.
Requires WaveReady 3500F series shelf and a WaveReady COM200 communications
module. TL1/SNMP interfaces via the 10/100BaseT Ethernet/RJ45 connector on the
front panel of a COM200.
Seven LEDs:
CARD
(power);
MAJ/CRIT
(major/critical alarm);
MIN
(minor alarm);
PORT 1-1
(port status);
PORT 1-2
(port status);
PORT 2-1
(port status);
PORT 2-2
(port status)
Front panel
WaveReady WRT-780
5
Supported Client SFPs
Description
Part
Number
Bit-Rate
(Mb/s)
Launch
Power
(dBm)
Reach
Receiver
Sensitivity
3
(dBm)
N/A
–22 (GigE)
–18 (OC-48)
–22 (GigE)
–18 (OC-48)
–19 (GigE)
–21 (1 Gb/s)
SFP Transceiver, Dual speed
(10/100/1000BaseT) Copper, 100 m
SFP Transceiver, Multirate
(155–2700 Mb/s) with DDM,
1310 nm, 5–10 km
SFP Transceiver, Multirate
(155–2700 Mb/s) with DDM,
1310 nm, 20–30 km
SFP Transceiver, Dual rate
(1062, 1250 Mb/s) with DDM,
1310 nm, 10 km
SFP Transceiver, Tri rate (1062, 2125,
4250 Mb/s) with DDM, 1310 nm, 20 km
SFP Transceiver, Tri rate (1062, 1250,
2125 Mb/s) with DDM, 850 nm
Multimode
SFP Transceiver, Tri rate (1062, 2125,
4250 Mb/s) SFP with DDM, 850 nm
Multimode
WRT-SFPBT1000SC
WRT-SFPS24SC1310
12.5, 125, 1250 N/A
155–2667
–9.5
100 m
10 km
5 km
30 km
20 km
10 km
WRT-SFPS24SCIR1
155–2667
–5
WRT-SFPS10SC1310
1062–1250
–9.5
WRT-SFPS42SC1310
WRT-SFPM20SC0850
1062–4250
1062–2125
–8.4
–9.5
28 km
–19 (1 Gb/s)
20 km
–16.2 (4.25 Gb/s)
4
–17 (1 Gb/s)
0.5–500 m
–15.0 (2 Gb/s)
–17 (1 Gb/s)
–14 (4.25 Gb/s)
WRT-SFPM42SC0850
1062–4250
–9
0.5–500 m
3. Values quoted are for worst-case extinction ratio and BER of 1 x 10
–10
.
4. Depends on the fiber type and data rate.
