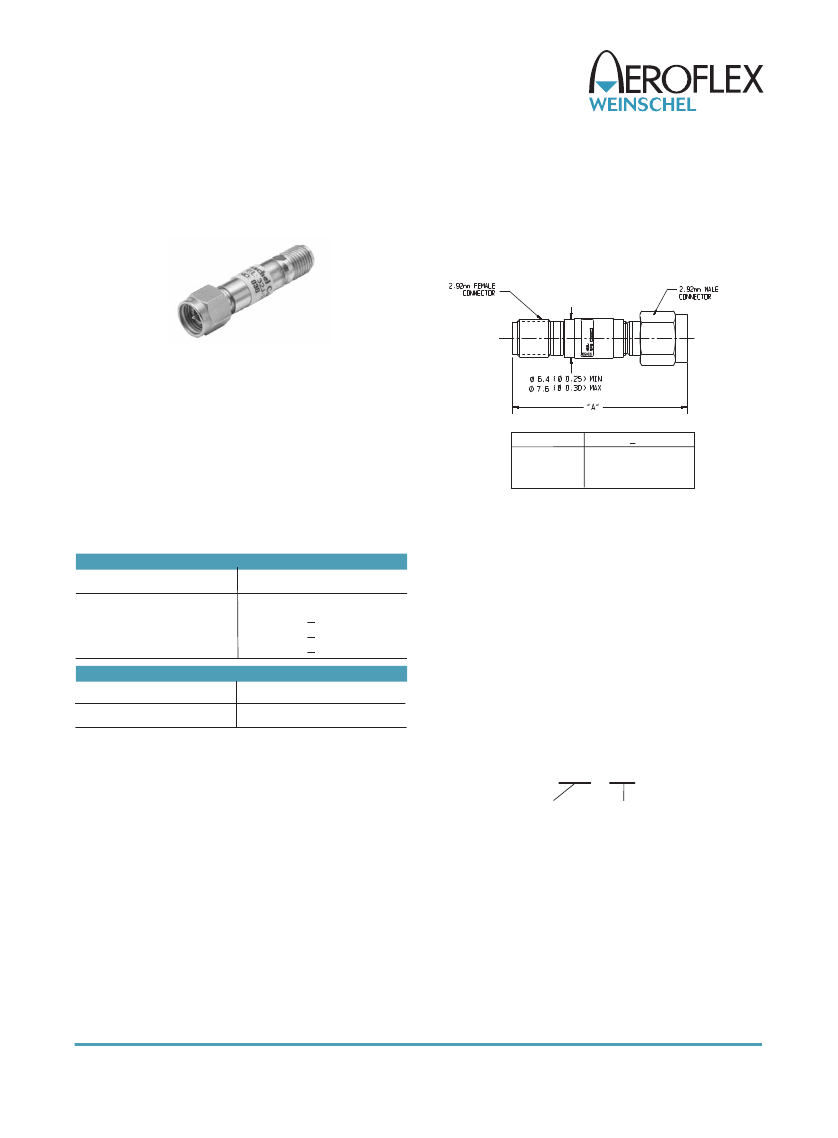

Fixed Coaxial Attenuators
Models 32J
High Reliability, SMK Connectors
Suitable for Space & Airborne Applications
PHYSICAL DIMENSIONS:
dc to 32.0 GHz
2 Watts
RoHS
Features
o
o
o
o
Available in 0.5 dB increments from 0-30 dB.
Rugged injection molded connectors.
Designed to meet environmental requirements of
MIL-DTL-3933.
100% Subjected to Thermal Shock, Peak Power &
Monitored Thermal Cycle (MTC).
dB VALUE
0-12
12.5-20
20.5-30
Aeroflex / Weinschel
DIM A + 0.5 (0.02)
28.6 (1.15)
31.2 (1.23)
33.8 (1.33)
Specifications
NOMINAL IMPEDANCE:
50
Ω
FREQUENCY RANGE:
dc to 32.0 GHz
MAXIMUM DEVIATION OVER FREQUENCY:
NOTE: All dimensions are given in mm (inches) and are maximum,
unless otherwise specified.
Screening
Units are screened 100% as follows:
Thermal Shock:
10 cycles, -55°C to +100°C
Peak Power:
500 Watts, 5
μsec
pulse width; 0.05% duty
cycle for 3 minutes at each end. DC Attenuation is
measured before and after peak power.
Monitored Thermal Cycle:
Units are subjected to 10
thermal cycles between -55 °C to +100 °C. The PIN-to-PIN
DC resistance is continuously monitored and stored.
Attenuation and SWR are tested as final electrical test.
MODEL NUMBER DESCRIPTION:
Nominal ATTN (dB)
0
0.5 - 12
12.5 - 20
20.5 - 30
MAXIMUM SWR:
Deviation (dB)
+ 0.5 / -0.0
+ 0.50
+ 1.00
+ 2.00
Frequency (GHz)
dc - 32
SWR
1.25
POWER RATING:
2 watts
average
to 25°C ambient
temperature, derated linearly to 0.5 watts at 100°C.
500 watts
peak
(5
μsec
pulse width; 0.2% duty cycle).
POWER COEFFICIENT:
< 0.005 dB/dB/watts
TEMPERATURE COEFFICIENT:
< 0.0004 dB/dB/°C
TEMPERATURE RANGE:
-55°C to +100°C
CONNECTORS:
SMK (2.92mm) connectors - mate nonde-
structively with SMA, 3.5mm and SMK (2.92mm)
connectors.
CONSTRUCTION:
Passivated stainless steel body and
connectors; gold plated beryllium copper contacts. Each
unit is sealed using low outgassing sealant.
WEIGHT:
13 g (0.46 oz)
Example:
32J - XX
Basic
Model
Number
Attenuation
Value (dB)
EXPORT CONTROL:
This product is controlled for export under the International Traffic
in Arms Regulations (ITAR). A license from the U.S. Department
of State is required prior to the export of this product from the
United States.
EXPORT WARNING:
Aeroflex’s military and space products are controlled for export
under the International Traffic in Arms Regulations (ITAR) and
may not be sold or proposed or offered for sale to certain
countries. (See ITAR 126.1 for complete information.)
43
5305 Spectrum Drive, Frederick, MD 21703-7362
s
TEL: 301-846-9222, 800-638-2048
s
Fax: 301-846-9116
web: www.aeroflex.com/weinschel
s
email: weinschel-sales@aeroflex.com
Revision Date: 4/18/2013
