CJ380-305-0356: DescriptionCONNECTOR, CABLE TERMINATED, FEMALE, BNC, TRIAXIAL CONNECTOR, CRIMP, JACK; CategoryThe connector The connector; File Size71KB，1 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric View All

CJ380-305-0356 Overview

CONNECTOR, CABLE TERMINATED, FEMALE, BNC, TRIAXIAL CONNECTOR, CRIMP, JACK

CJ380-305-0356 Parametric

Parameter Name	Attribute value
Maker	Artysen Embedded Technologies
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	APPLICABLE CABLE: BELDEN 9192
Body/casing type	JACK
Connector type	RF TRIAXIAL-BNC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	80
Installation method	STRAIGHT
Installation type	CABLE
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
Base Number Matches	1

Preview

Download Datasheet

View All

21

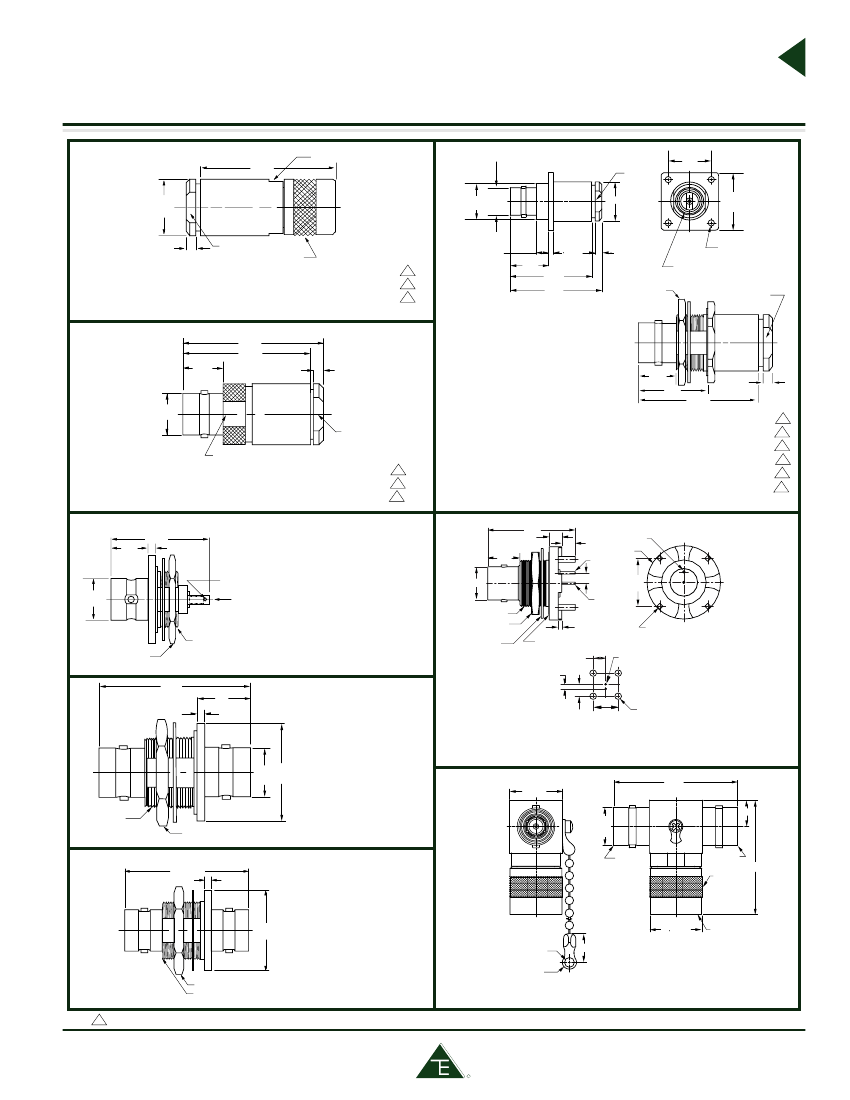

Standard twinax/triax threaded 80/380 series, trc/trn

PL80-9 Shown

1.773

.687 WRENCH FLAT

Top Drawing: BJ89F-10 Shown

.625

WRENCH

FLATS

.844

TYP

.750

DIA

.685 .535

DIA DIA

.750

1.125

TYP

.130

.625 WRENCH FLAT

.781 DIA MAX

MAX

PANEL THK

.250

.094

.761

1.590

1.790

.130

.120 DIA

4 MTG HOLES

CABLE ENTRY

1.000

HEX TYP

2-lug

PL80-

1

3-lug

PL803-

1

Threaded

PL380-

1

Larger bodies available to accommodate cable sizes, contact the factory.

Cable Plug

.625 WRENCH FLATS

CJ80-7 Shown

1.790

1.590

.500

.130

.500

Bottom Drawing: BJ89-10 Shown

.130

.919

1.590

.535

DIA

WRENCH FLATS

Bulkhead Cable Jacks

Cable Jack

Wrench Crimp

2-lug

3-lug

Threaded

CJ80-

CJ803-

CJ380-

1

2-lug

BJ89F-

3-lug

BJ893F-

Threaded

BJ389F-

Wrench Crimp, D Hole Mount

2-lug

BJ89-

3-lug

BJ893-

Threaded

BJ389-

Mounting Holes:

DD6.250 / D11.250 - Cable Groups: -14A, -16, -61, -62

Wrench Crimp, Flange Mount

1.415

.200

CBBJ82 SHOWN

.220

Ø.039 - .041

2 PLACES

01.187

1

BJ80 Shown

1.312

.500

.095

.520

.065 DIA

.535

DIA

ACCEPTS

.065 DIA

CONDUCTOR

INR SHLD

.170

CTR

CONT PIN

.055

MOUNTING SEAL

.387

.170

Ø.0470

2 PLACES

0.092 - .096

4 PLACES

.773

TYP

Ø.535

Bulkhead Jack

Solder Pot

2-lug

BJ80

3-lug

BJ803

Threaded

BJ380

Mounting Hole:

D1.156

BJ83 Shown

.750-32UNEF-2A

1.000 HEX NUT

.125 THK

FLAT WASHER

1.130 MAX OD

.032 THK

.750-32UNEF-2A

1.000 HEX

1.650

.59

.090

Circuit Board

.387

Bulkhead Jack

Insulated

Feed-thru Jack

2-lug

BJ83

3-lug

BJ833

Threaded

BJ383

Mounting Hole:

D1.350

.773

TYP

Ø.1090

4 PLACES

2-lug

CBBJ82

3-lug

CBBJ823

Threaded

CBBJ382

Mounting Hole:

C6.250

1.750

.535 1.060

TYP DIA

BN83 Shown

.750 SQ.

.375

.535

DIA

TYP

JACK

.750-32UNEF-2A

1.000 HEX NUT

BJ88 Shown

1.650 TYP

.90

JACK

,,,,,,,,,

1.060

DIA

,,,,,,,,

.730 DIA

1.619

.773 DIA

MAX

PLUG

1.000 HEX NUT

.750-32UNEF-2A

Feed-thru Jack

2-lug

BJ88

3-lug

BJ883

Threaded

BJ388

Mounting Hole:

D1.343

.140 DIA

MTG HOLE

.200 DIA

.406

2-lug

3-lug

TRC "T" Adapter

Threaded

For other chain options see page 36.

BN83-1

BN833-1

BN383-1

1

- Refers to Cable Group Table, see pages 68-88. "D" mounting holes are on page 45.

Trompeter Products Catalog

ISO 9001

Registered

R

(800) 982-2629

Fax: (818) 706-1040
