50018-20011-001

Description
Board Connector, 200 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size228KB,2 Pages
ManufacturerAces Electronics Co., Ltd.
Download Datasheet Parametric Compare View All

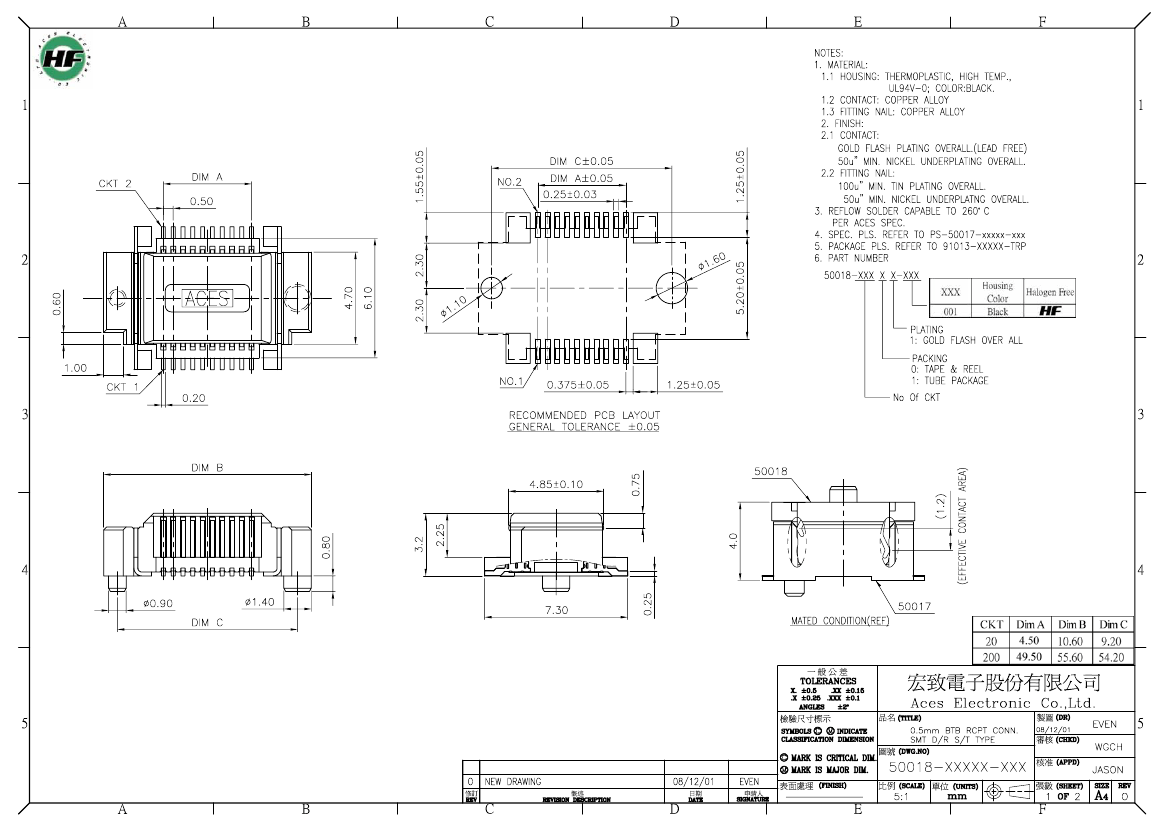

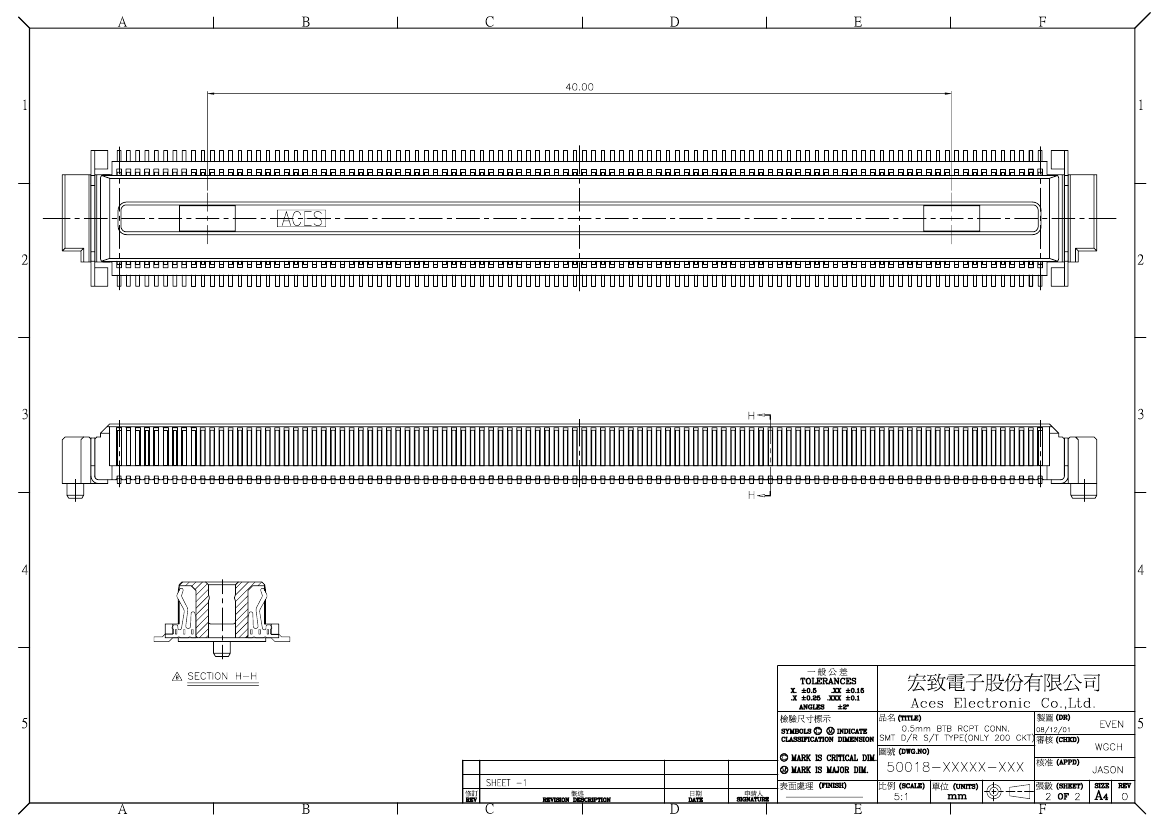

50018-20011-001 Overview

Board Connector, 200 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle

50018-20011-001 Parametric

Parameter NameAttribute value
MakerAces Electronics Co., Ltd.
Reach Compliance Codeunknown
Board mount optionsFITTING NAIL
body width0.191 inch
subject depth0.126 inch
body length2.189 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance55 mΩ
Dielectric withstand voltage300VAC V
Durability30 Cycles
Insulation resistance500000000 Ω
Insulator colorBLACK
insulator materialTHERMOPLASTIC
Manufacturer's serial number50018
Plug contact pitch0.02 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature80 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing6.4516 mm
Plating thicknessFLASH inch
polarization keyPOLARIZED HOUSING
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.508 mm
Termination typeSURFACE MOUNT
Total number of contacts200
Base Number Matches1
