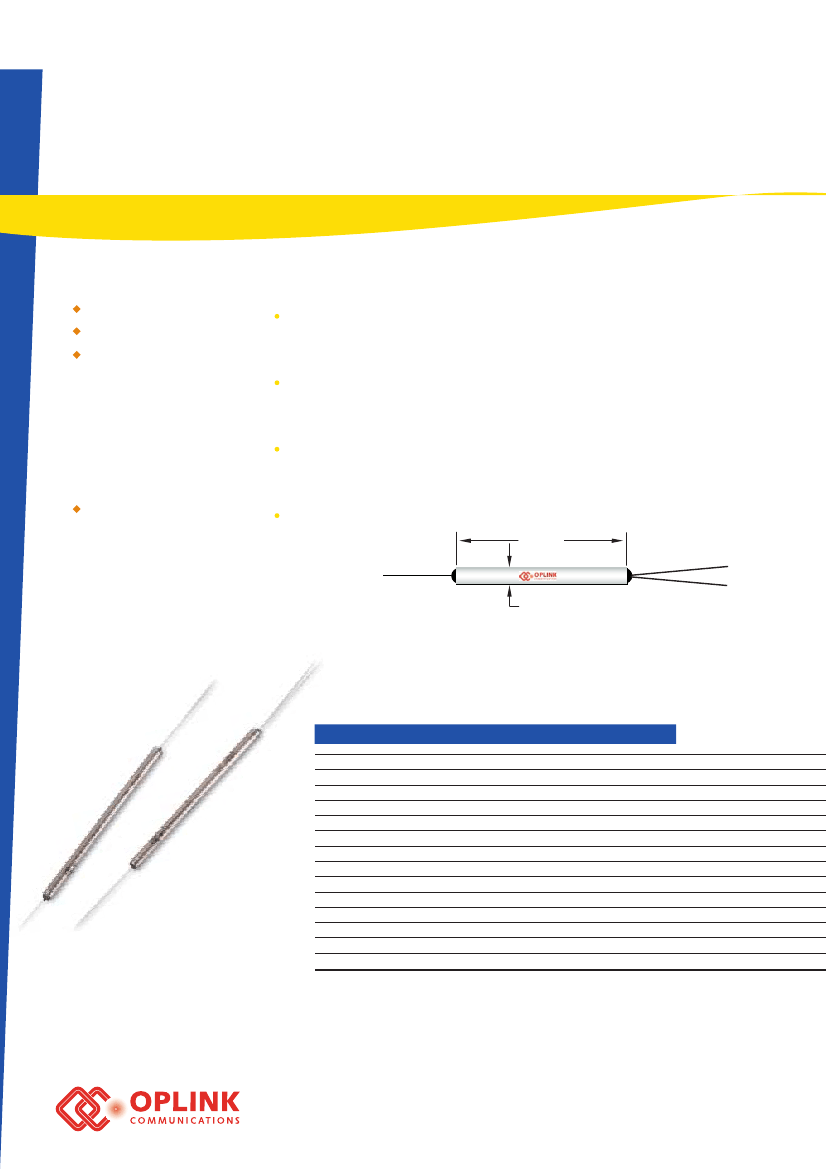

Two Channel Pump Combiner
(1480)
DCPC Series
Features
Low Insertion Loss
High Stability & Reliability
Wide Operating
Temperature Range
TWO-CHANNEL PUMP COMBINER
Oplink’s 1480 nm two-channel pump combiner aremanufactured using the proven
fused biconical taper technology and Oplink’s stringent quality procedures. With low
insertion loss, this device is ideal for combining two pump sources near 1480 nm in
optical fiber amplifiers.
Oplink can provide customized designs to meet specialized feature applications. Also,
Oplink offers modular assemblies that integrate other components to form a full
function module or subsystem.
Applications
Double Pumping
L
Port In
Port Out 1
Port Out 2
Ø
Performance Specifications
DCPC Series
2 x 1
Unit
Wavelength Range
Channel Spacing
Maximum Insertion Loss @ Central Wavelength ±1nm
Polarization Dependent Loss
Directivity
Maximum Power Handling
Return Loss
Operating Temperature
Storage Temperature
Package Dimension *
P1: 250 µm SMF-28 bare fiber
P2: 900 µm loose tube
P3: 3mm cable
Configuration
1400 - 1500
10 ~ 30
< 0.6
< 0.2
> 55
500
> 55
-10 to +70
-40 to +85
(ø) 4.0 x (L) 75
(ø) 4.0 x (L) 80
(L)96 x (W) 12 x (H) 6.4
nm
nm
dB
dB
dB
mW
dB
°C
°C
mm
*
The mechanical tolerance should be +/-0.2 mm on all package dimensions unless otherwise custom specified.
Oplink Communications, Inc.
R1.2007072
Two Channel Pump Combiner (1480)
DCPC Series
Ordering Information
Oplink can provide a remarkable range of customized optical solutions. For detail, please contact Oplink's OEM design team
or account manager for your requirements and ordering information (510) 933-7200.
DCPC
2
Shorter Wavelength
1460nm = 1460
etc.
Channel Spacing
10nm = 10
Configuration
20nm = 20
2 x 1=2
30nm = 30
Fiber Length
1.0 meter = 1
1.5 meter = 5
2.0 meter = 2
Package & Fiber Type
P1+ 250µm bare fiber = 11
P2+ 900µm loose tube = 22
P3+ 3mm cable = 33
46335 Landing Parkway Fremont, CA 94538-6407 Tel: (510 933-7200 Fax: (510) 933-7300 Email: Sales@Oplink.com
RoHS:
1) Add “G” to the end of the above PN for RoHS 6.
Connector
Type
None= 1
FC/PC= 2
FC/SPC= 3
FC/APC= 4
SC/PC= 5
SC/SPC= 6
SC/APC= 7
ST= 8
LC= 9
MU= A
R1.20070727
