DC37PR

Description
D SUBMINIATURE CONNECTOR, PLUG
CategoryThe connector    The connector
File Size200KB，2 Pages
ManufacturerAdam Tech
Download Datasheet Parametric View All

DC37PR Overview

D SUBMINIATURE CONNECTOR, PLUG

DC37PR Parametric

Parameter NameAttribute value
MakerAdam Tech
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresROHS COMPLIANT
body width0.494 inch
subject depth0.461 inch
body length2.729 inch
Body/casing typePLUG
Connector typeD SUBMINIATURE CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeSTAGGERED
Contact resistance20 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Dielectric withstand voltage1000VAC V
IEC complianceNO
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL complianceNO
Manufacturer's serial numberDPR
Plug contact pitch0.109 inch
Match contact row spacing0.112 inch
Installation option 1HOLE .112-.124
Installation option 2LOCKING
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
Plating thicknessFLASH inch
Rated current (signal)5 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialSTEEL
Housing size4/C
Termination typeCRIMP
Total number of contacts37
Base Number Matches1

Preview

Download Datasheet

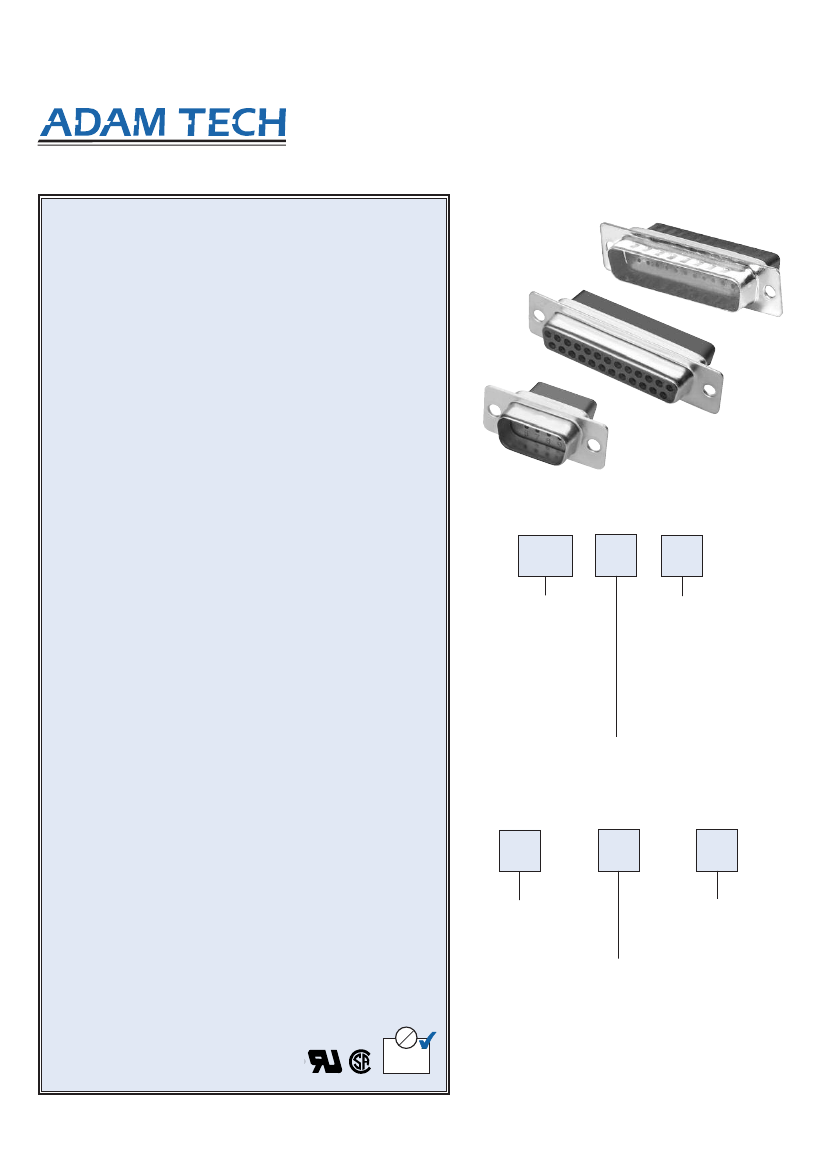

D-SUBMINIATURE
Adam Technologies, Inc.
INTRODUCTION:
Adam Tech Crimp and Poke D-Sub connectors are a popular
interface for many I/O applications. Offered in 9, 15, 25, 37 and 50
positions they are a low cost alternative to soldering a connector to
cable. Contacts are crimped onto discrete wires and pushed into the
connector body. The connector is comprised of a metal shell and
plastic insulator and is available with a variety of mating options. The
contacts are precision stamped and are available in a variety of
platings.
FEATURES:
Low cost no solder alternative
Industry standard compatibility
Durable metal shell design
Precision formed contacts
Variety of Mating and mounting options
MATING CONNECTORS:
Adam Tech D-Subminiatures and all industry standard
D-Subminiature connectors.
SPECIFICATIONS:
Material:
Insulator: PBT, 30% glass reinforced, rated UL94V-0
Insulator Color: Black
Contacts: Phosphor Bronze
Shell: Steel, Tin or Zinc plated
Hardware: Brass, Nickel plated
Contact Plating:
Gold Flash (15 and 30
µin
Optional) over Nickel underplate.
Electrical:
Operating voltage: 250V AC / DC max.
Current rating: 5 Amps max.
Contact resistance: 20 mΩ max. initial
Insulation resistance: 5000 MΩ min.
Dielectric withstanding voltage: 1000V AC for 1 minute
Mechanical:
Insertion force: 0.75 lbs max
Extraction force: 0.44 lbs min
Temperature Rating:
Operating temperature: -65°C to +125°C
PACKAGING:
Anti-ESD plastic trays
APPROVALS AND CERTIFICATIONS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596

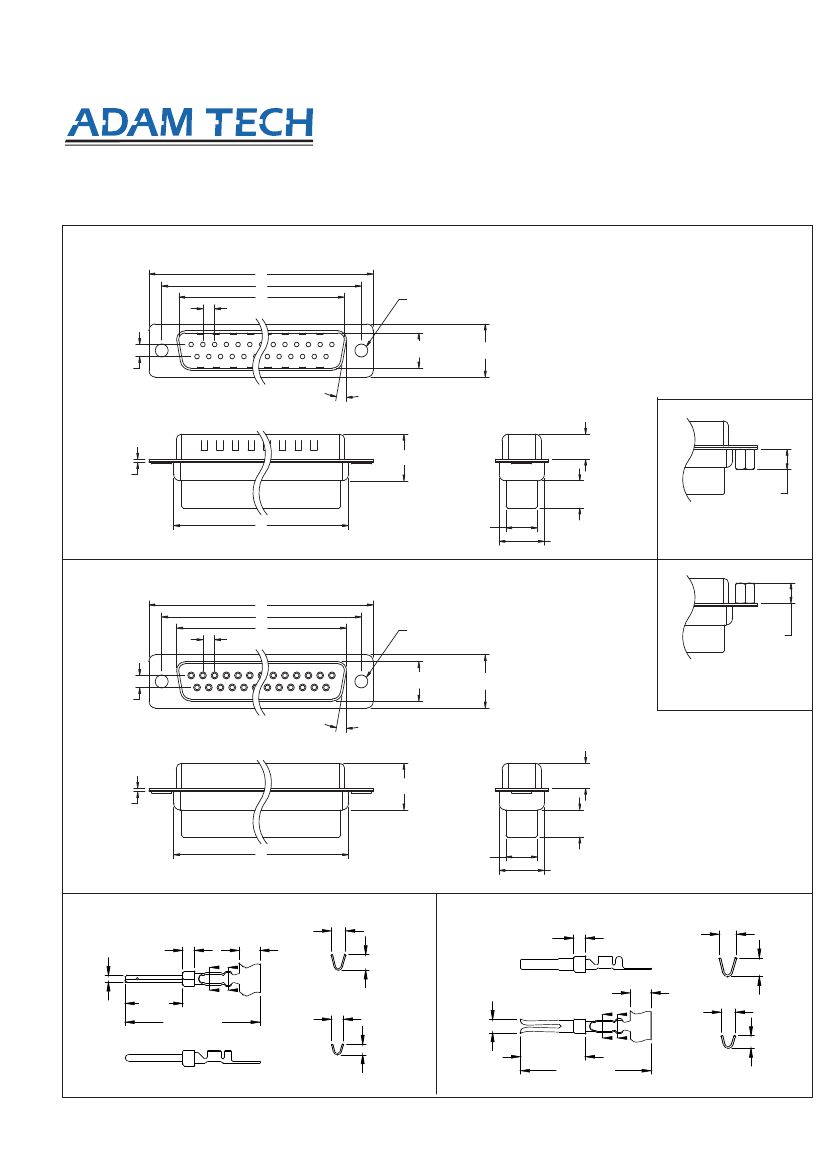

CRIMP AND POKE SYSTEM
DPR / DSR SERIES
ORDERING INFORMATION
HOUSING
DB25
SHELL SIZE/
POSITIONS
DE
09
= 9 Position
DA
15
= 15 Position
DB
25
= 25 Position
DC
37
= 37 Position
DD
50
= 50 Position
SR
SL
MOUNTING OPTIONS
Blank
= .120" diameter
mounting holes
SL
= Riveted #4-40
clinch nuts
JS
= Riveted #4-40
jackscrews
CONTACT TYPE
PR
= Plug, Crimp and Poke
SR
= Socket, Crimp and Poke
CONTACTS
DCP
01
R
CONTACT
WIRE RANGE
DCP
= Plug
Contact
DCS
= Socket
Contact
CONTACT TYPE
01
= 24-26 AWG
02
= 20-22 AWG
03
= 28-30 AWG
PACKAGING
R
= 10,000 piece
reel
B
= 1000 pieces
loose cut
Pb
UL
®
®
®
E
D
COMPLIANT
2002
/ 95
/ EC
RoHS
V
OPTIONS:
Add designator(s) to end of part number
15
= 15 µin gold plating in contact area on crimp contacts
30
= 30 µin gold plating in contact area on crimp contacts
96
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
RoHS
COMPLIANT
