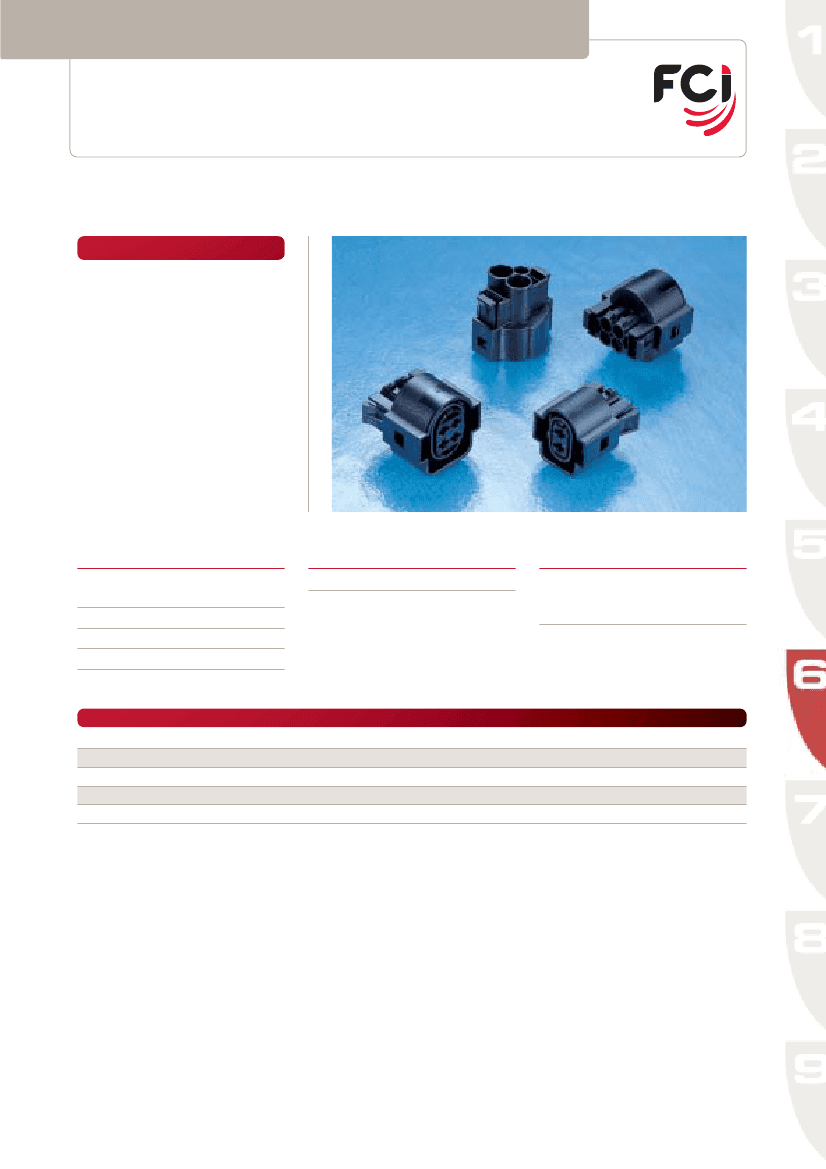

Engine Compartment Connectors
Component-to-wire connectors
DCS-2/4.8 mm terminals
2/3/4/7 way sealed female housings for 2.8 + 4.8 mm terminals
Features
•
2-3-4-7 position housings available
•
Splashproof application with single
wire seal
•
Circumferential interface seal
•
Plastic locking feature
•
Mechanical polarization
Performance characteristics
•
Temperature range:
from -40°C to +120°C
Construction
•
Housing material:
PBT
Connector compatibility
•
Usable terminals:
- DCS-2 2.8 mm female terminals
- 4.8 mm female terminals
•
Contact retention force:
•
Contact insertion force:
•
Connector mating force:
> 80 N
< 20 N
< 100 N
Part Numbers
6 041 16 01
6 049 15 01
6 041 13 11
6 041 14 01
6 043 04 01
No. of position
2
3
4
7
3
2.8 mm
2.8 mm
2.8 mm
2.8 mm
Terminal size
Colour
Black
Black
Black
Black
Black
1 x [2.8 mm] + 2 x [4.8 mm] terminals
6.54
Engine Compartment Connectors
Component-to-wire connectors
DCS-2/4.8 mm terminals
2/3/4/7 way sealed female housings for 2.8 + 4.8 mm terminals

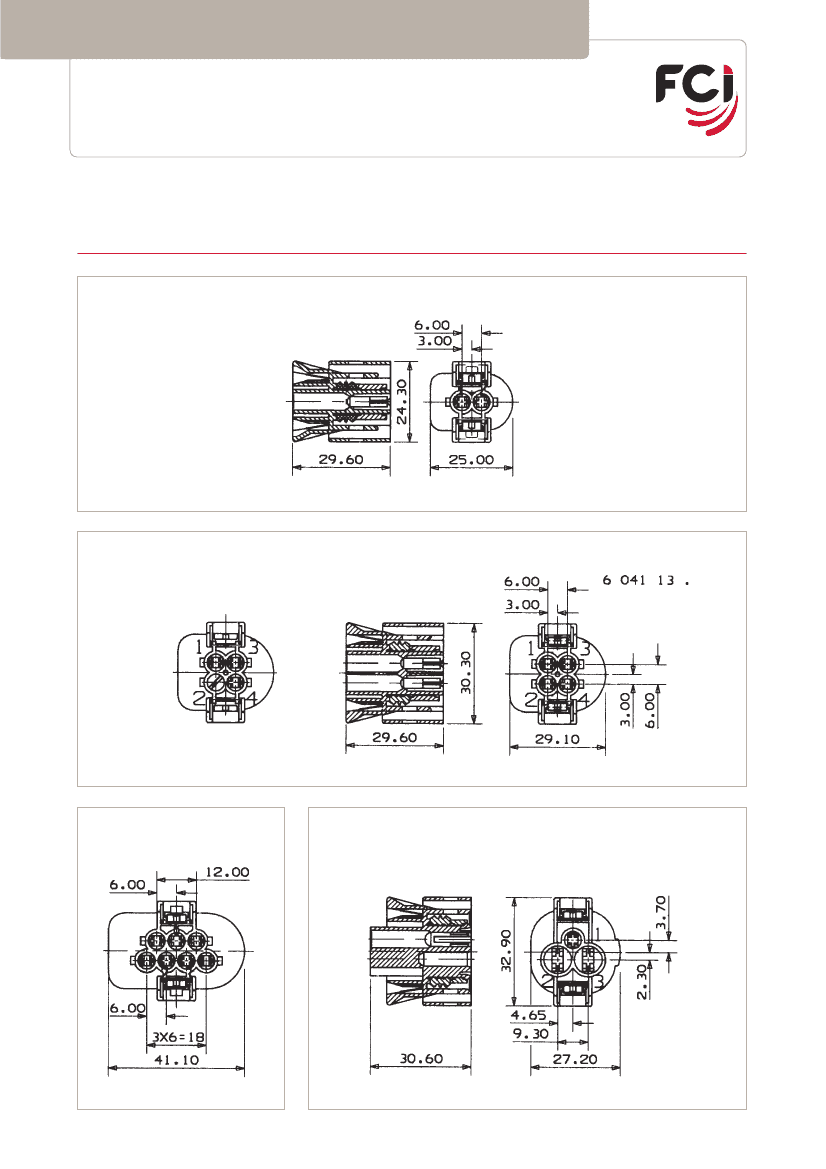

Dimensional characteristics
2 way housing
3/4 way housing
7 way housing
3 way housing (mixed loading)
6.55

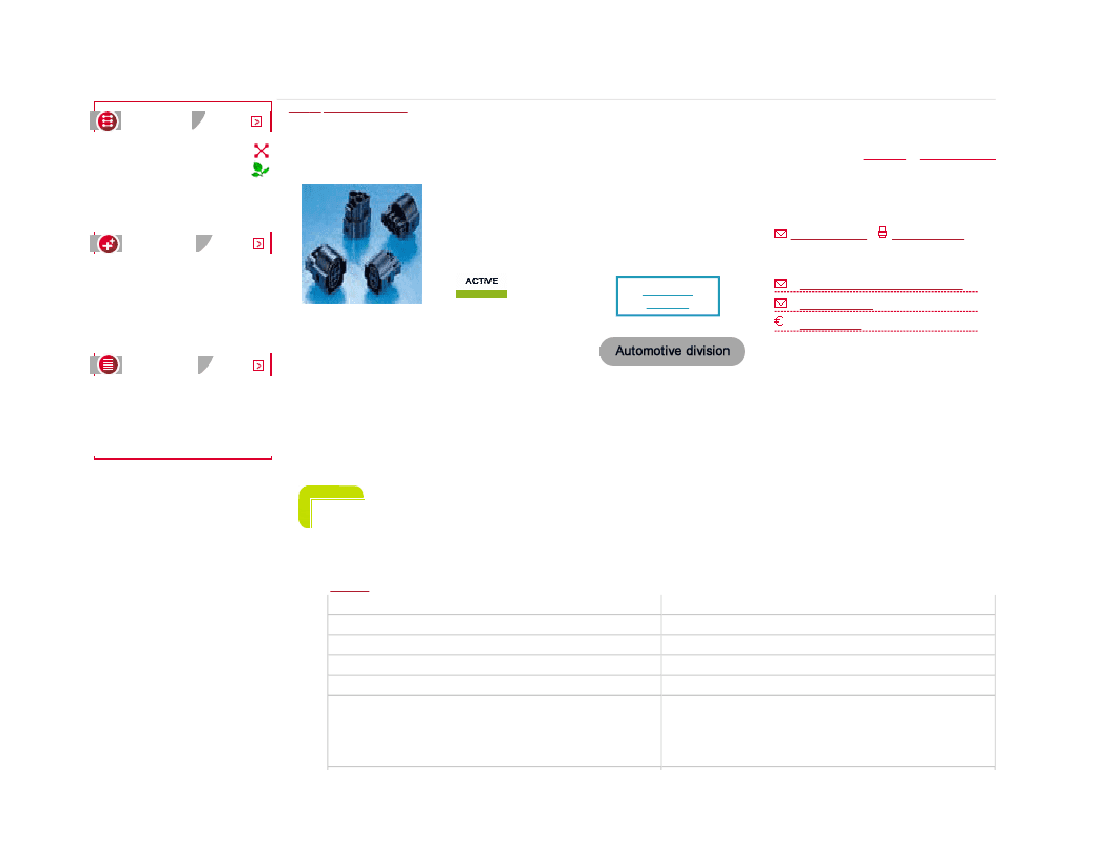

Product Detail Page
Page 1 of 2
Direct Links
Cross Reference
RoHS/LF P/N search
...
Start > Search=60411401*
>
60411401
60411401
Assistant
Add to Favorites
Document & Drawing search
Application tooling
Services
Contact us
Distributor list
Pricing request
Order samples
Literature
Brochures & catalogs
Product documentation
Technical library
60411401
7 way component-to-wire Female housing
Email Datasheet
Print Datasheet
...
FCI Brings You More
Customer
Drawing
Contact our sales/technical support
Sample request
Price request
...
Specifications
General Mechanical Physical Terminal 1 Type Environmental Other Features
General
Application
Ways
Product Type
Coding
Family
Component to Wire
7
Housing
No
Engine Compartment Connectors
Splashproof Application with Single Wire Seal
Mechanical Polarization
Circumferential Interface Seal
Plastic Locking Feature
Features
http://portal.fciconnect.com/Comergent/en/US/adirect/fci?cmd=catProductDetail&showAddButton=true&productID=6041140... 11/23/2007
Product Detail Page
Page 2 of 2
Hybrid
Main Terminal family
Main Terminal size
Sealed
Terminal Size
Mechanical
No
DCS-2
2.8 mm
Yes
2.8
< 100N
Black
PBT
-40°C to+120°C
DCS-2 Female 2.8 mm Terminal
7
< 20N
> 80N
Yes
Female
Displayed data is for information purposes only.
For more information, please contact your local sales office.
The supply of some products might be limited to some
customers.
Connector mating force
Physical
Color
Material
Temperature (Range)
Terminal 1 Type
Terminal type 1
Ways for Terminal Type 1
Contact insertion force for Terminal Type 1
Retention force (Contact) for Terminal Type 1
Environmental
IMDS
Other Features
Type
