74ABT125DB datasheet, PDF - EEWORLD Datasheet

74ABT125DB: DescriptionBus Driver, 1-Func, 4-Bit, True Output, PDSO14; Categorylogic logic; File Size247KB，8 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

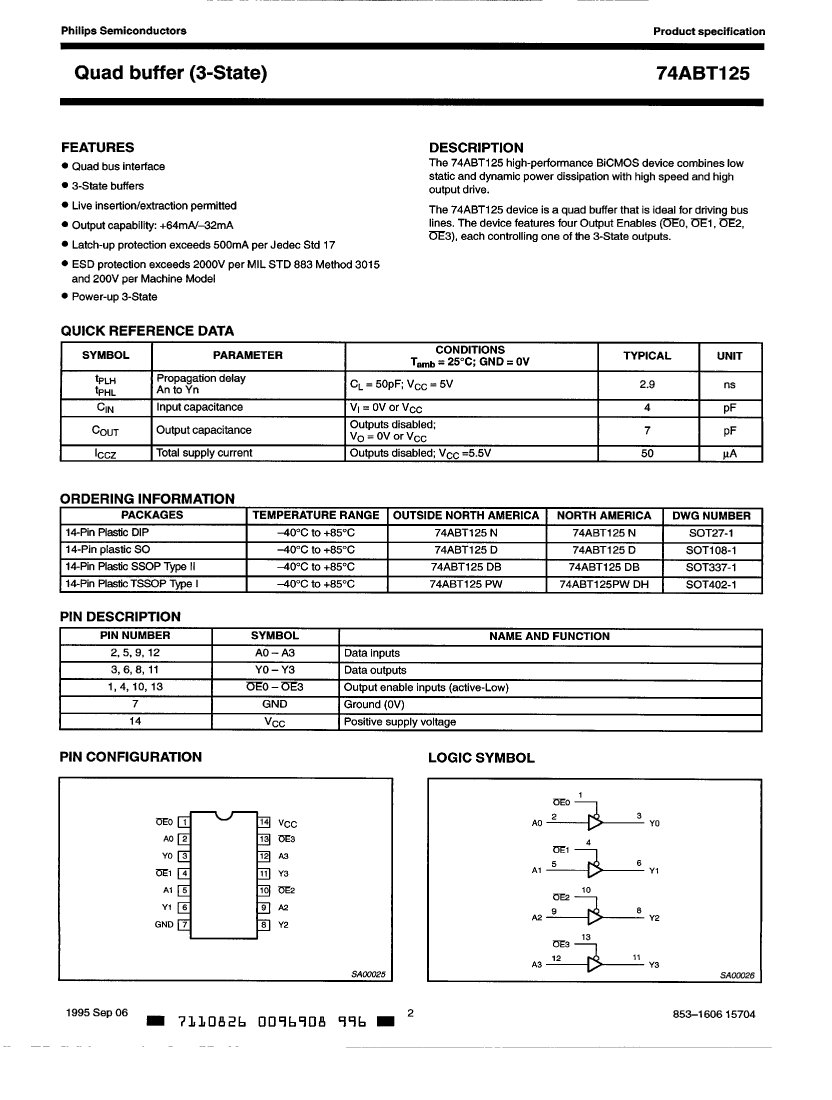

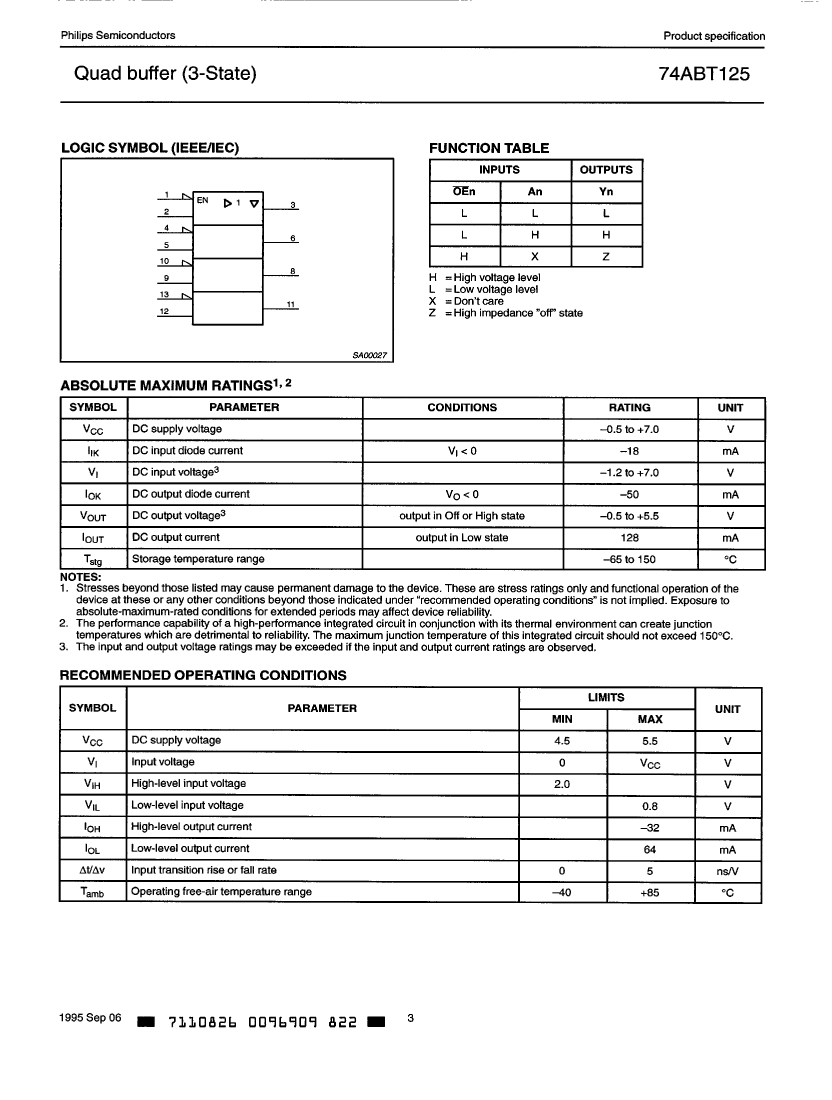

74ABT125DB Overview

Bus Driver, 1-Func, 4-Bit, True Output, PDSO14

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SSOP, SSOP14,.3
Reach Compliance Code	unknown
Control type	ENABLE LOW
JESD-30 code	R-PDSO-G14
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.064 A
Humidity sensitivity level	1
Number of digits	4
Number of functions	1
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE

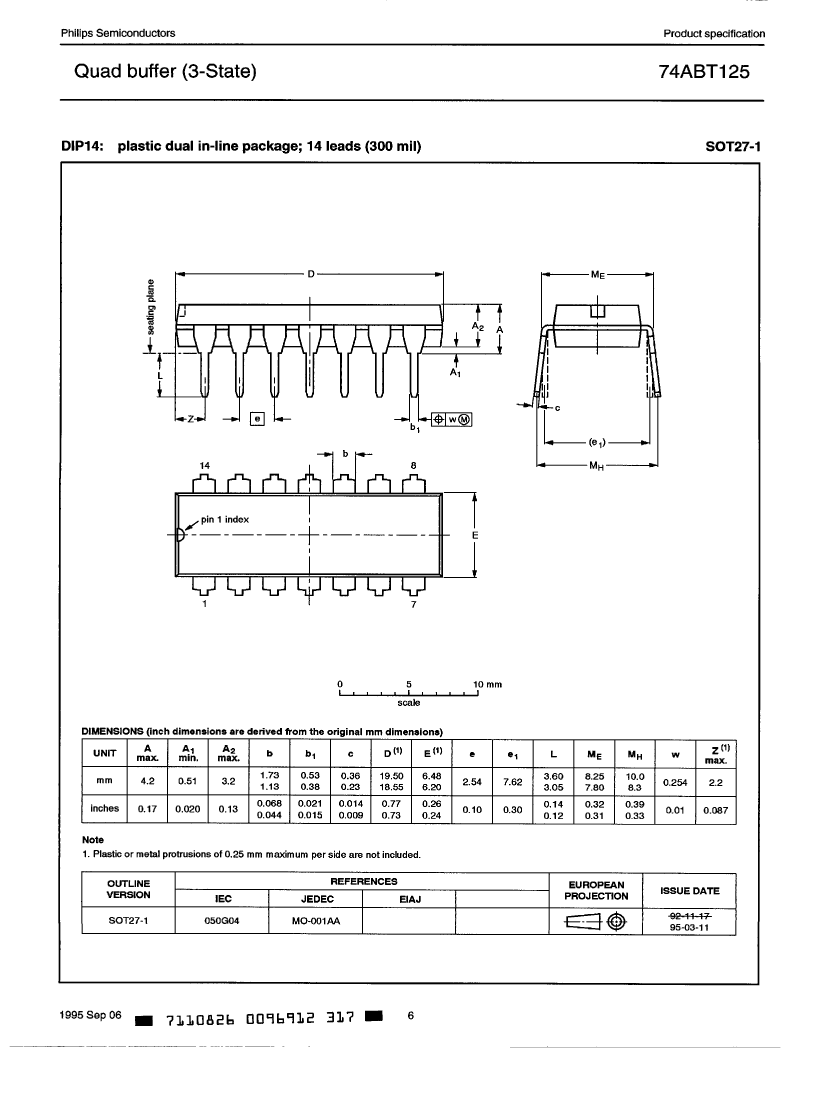

Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP14,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
power supply	5 V

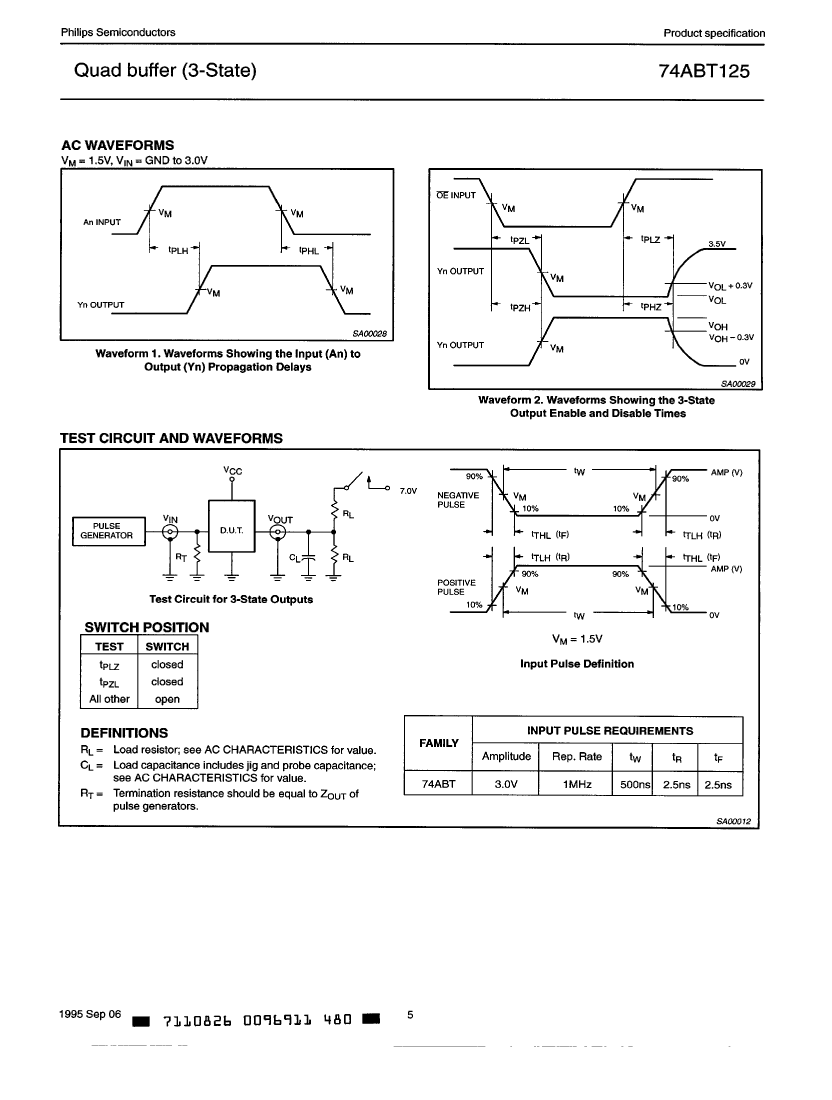

Prop。Delay @ Nom-Sup	4.9 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer

	74ABT125DB	74ABT125PW
Description	Bus Driver, 1-Func, 4-Bit, True Output, PDSO14	Bus Driver, 1-Func, 4-Bit, True Output, PDSO14
Is it Rohs certified?	conform to	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SSOP, SSOP14,.3	TSSOP, TSSOP14,.25
Reach Compliance Code	unknown	unknown
Control type	ENABLE LOW	ENABLE LOW
JESD-30 code	R-PDSO-G14	R-PDSO-G14
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.064 A	0.064 A
Number of digits	4	4
Number of functions	1	1
Number of terminals	14	14
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	TSSOP
Encapsulate equivalent code	SSOP14,.3	TSSOP14,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	5 V	5 V
Prop。Delay @ Nom-Sup	4.9 ns	4.9 ns
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
