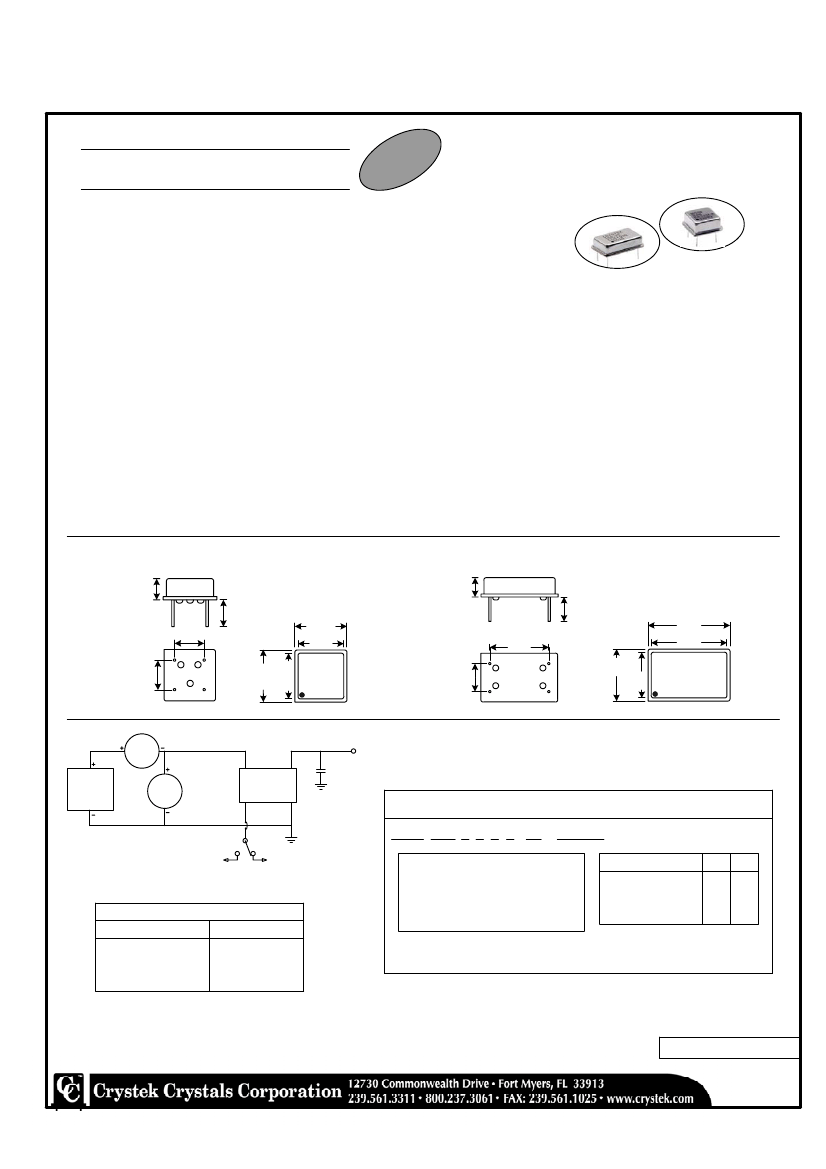

CCO-014S & 014 Models
8 & 14 Pin Dip,
5V, HCMOS/TTL
Frequency Range:
Frequency Stability:
Temperature Range:
Operating:
(Option M)
(Option X)
Storage:
Input Voltage:
Input Current:
Output:
Symmetry:
(Option Y)
Rise/Fall Time:
Logic:
Load:
Aging:
(Option H)
ree
dF S
a
Le oH ant
R pli
m
Co
Clock Oscillator
300KHz to 200MHz
±10ppm to ±100ppm
0°C to 70°C
-20°C to 70°C
-40°C to 85°C
Designed to meet today's
-55°C to 120°C
requirements for
5V ± 0.5V
economical solutions.
60mA Max
HCMOS/TTL
40/60% Max @ 50% Vdd
45/55% Max
4ns Typ, 10ns Max
"0" = 10% Vdd Max
"1" = 90% Vdd Min
15pF/10TTL Max
50pF/10TTL Max
<3ppm 1st/yr, 1ppm every year thereafter
CCO-014S
CCO-014
0.216
(5.50)
0.260
(6.60)
0.520
(13.21)
0.450
(11.43)
CRYSTEK
P/N
Frequency
DC
0.450
(11.43)
1
0.300
(7.62)
14
8
0.260
(6.60)
0.600
(15.24)
7
0.520
(13.21) 0.450
(11.43)
0.820
(20.83)
0.750
(19.05)
CRYSTEK
Part Number
Frequency
Date Code
0.216
(5.50)
Pin
1
0.300
(7.62)
Pin
8
0.300
(7.62)
Pin
4
0.520
(13.21)
Pin
5
mA
M
OUT
pin 8
or 14
VM
pin 1
pin 5
or 8
O/P Load
incl Probe Cl
Vdd
OUT
PWR
Supply
OSC.
Cont
GND
pin 4
or 7
Crystek Part Number Guide
CCO-014 T X Y H- 25 - 49.152
#1
#2
#3 #4 #5 #6
#7
#8
High Impedance
GND or "LOW"
Oscillation
OPEN or "HIGH"
Tri-State Function
Function pin 1
Open
"1" level 2.4V Min
"0" level 0.4V Max
Output pin
Active
Active
High Z
#1 Crystek Clock Osc.
#2 Model (014 or 014S)
#3 Tristate: Blank= no Tristate, T= Tristate
#4 Temp. Range: Blank= 0/70°C, M= -20/70°C, X= -40/85°C
#5 Symmetry: Blank=(40/60), Y=(45/55)
#6 Load: Blank= standard, H= 50pF
#7 Stability: (see Table 1)
#8 Frequency in MHz: 3 or 6 decimal places
Stability Indicator:
Blank (std)
50
25
20
10
±
±
±
±
±
100ppm
50ppm
25ppm
20ppm
10ppm
0/70
**
**
**
**
**
-20/70
-40/85
**
**
**
**
Table 1
Example:
CCO-014TXY-25-25.000 = (full size) 5.0V Tristate, -40/85°C, 45/55, 25ppm, 25.000 MHz
CCO-014ST-50-19.660800 = (half size) 5.0V Tristate, 0/70, 40/60, 50ppm, 19.660800 MHz
Specifications subject to change without notice.
TD-02075 Rev.D
