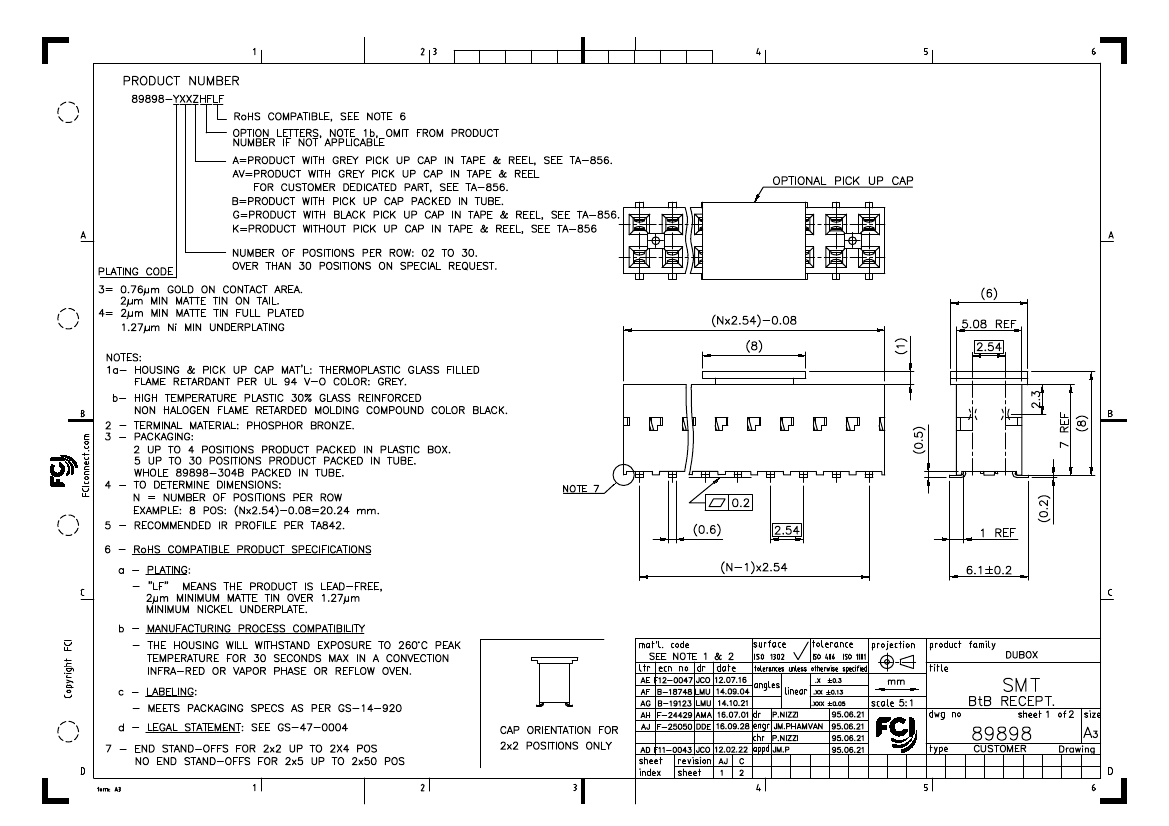

Dubox®, Board To Board Connector, Receptacle, Vertical, Surface Mount, Dual Entry, Double Row , 30 Positions, 2.54mm (0.100in) Pitch

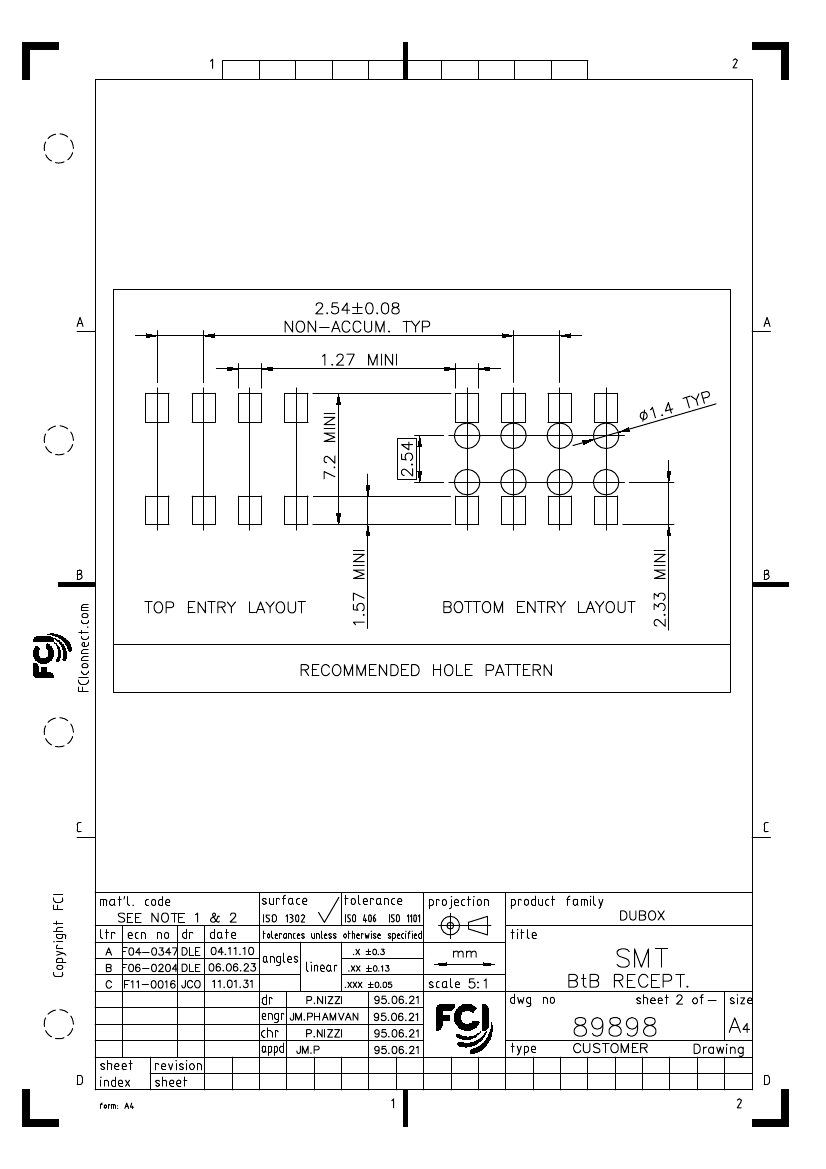

| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Objectid | 1714039778 |
| package instruction | ROHS COMPLIANT |
| Contacts | 30 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Samacsys Description | Dubox®, Board To Board Connector, Receptacle, Vertical, Surface Mount, Dual Entry, Double Row , 30 Positions, 2.54mm (0.100in) Pitch |
| Samacsys Manufacturer | Amphenol Communication Solutions |
| Samacsys Modified On | 2022-11-07 12:11:10 |
| YTEOL | 9.1 |
| Other features | ROHS COMPLIANT, TAPE PACKAGING |
| body width | 0.2 inch |
| subject depth | 0.276 inch |
| body length | 1.497 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD (30) |
| Contact completed and terminated | Matte Tin (Sn) - with Nickel (Ni) barrier |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1400VAC V |
| Durability | 225 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 1.4734 N |
| Insulation resistance | 100000000000 Ω |
| Insulator color | GRAY |
| insulator material | GLASS FILLED POLYETHYLENE |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Manufacturer's serial number | 89898 |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -65 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 5.588 mm |
| Plating thickness | 30u inch |
| Rated current (signal) | 3 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal pitch | 2.54 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 30 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .3058 N |
