73399-101 datasheet, PDF - EEWORLD Datasheet

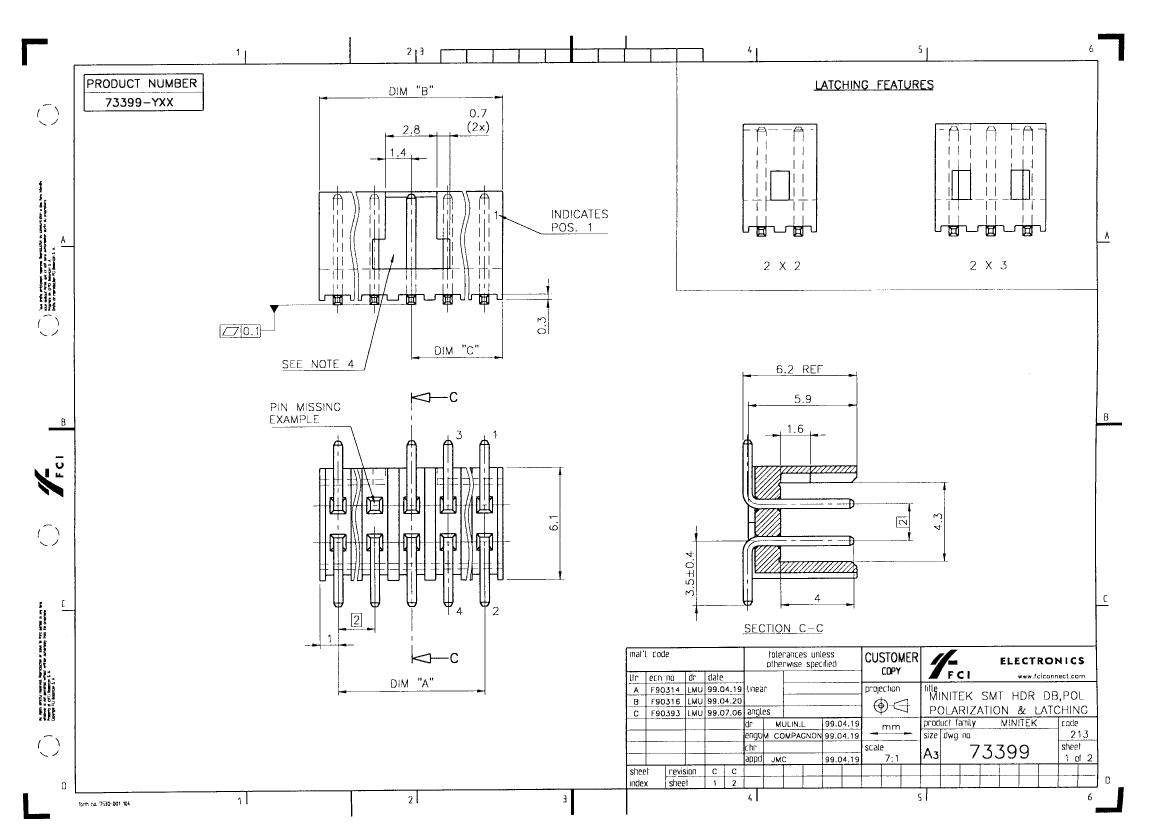

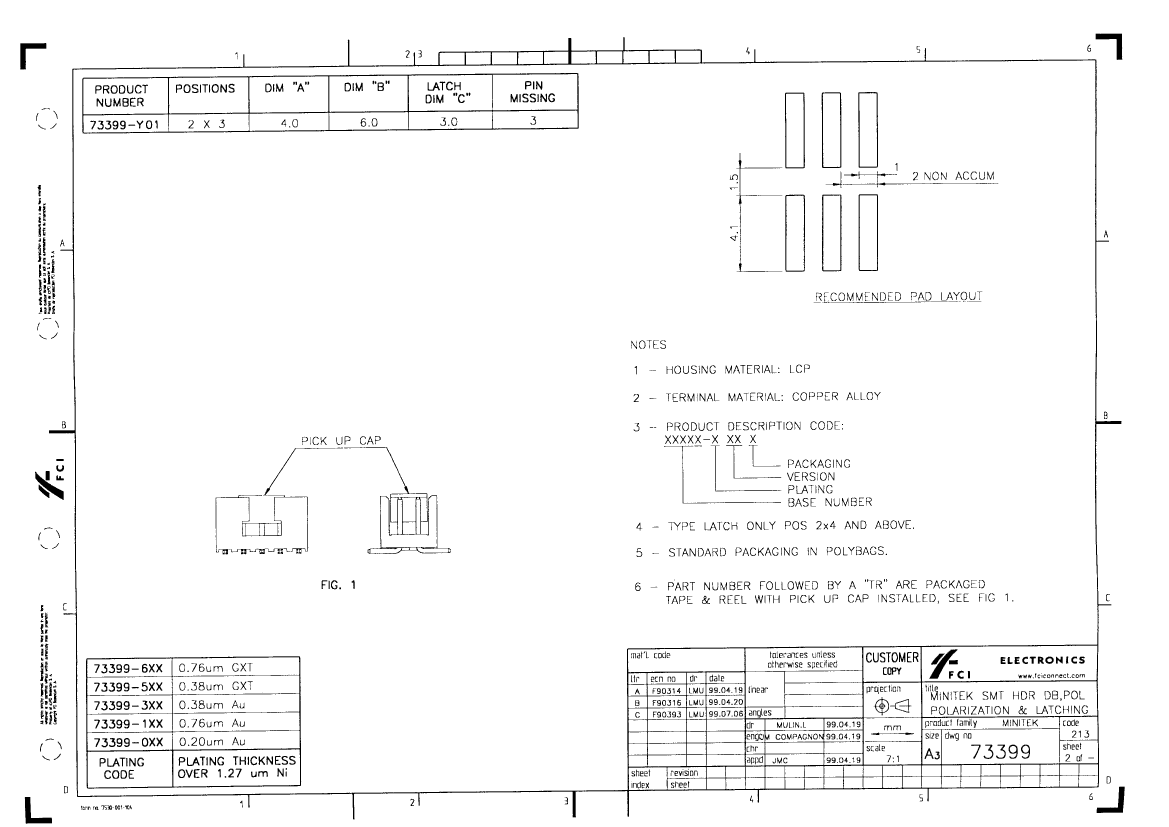

73399-101: DescriptionBoard Connector, 5 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size145KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

73399-101 Overview

Board Connector, 5 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	73399
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	5
Base Number Matches	1

PDM: Rev:C

STATUS:

Released

Printed: Jan 14, 2004

	73399-101	73399-001	73399-301	73399-501	73399-601
Description	Board Connector, 5 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 5 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 5 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 5 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 5 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	73399	73399	73399	73399	73399
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	5	5	5	5	5
Base Number Matches	1	1	1	1	1
