54LS221/BFAJC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS221/BFAJC

54LS221/BFAJC: DescriptionMonostable Multivibrator, LS Series, 2-Func, TTL, CDFP16, CERAMIC, FP-16; Categorylogic logic; File Size174KB，7 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54LS221/BFAJC Overview

Monostable Multivibrator, LS Series, 2-Func, TTL, CDFP16, CERAMIC, FP-16

54LS221/BFAJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	DFP, FL16,.3
Reach Compliance Code	unknown
Other features	NON-RETRIGGERABLE; TRIGGERABLE FROM CLEAR INPUT ALSO; MIN OUTPUT PULSE WIDTH = 20NS
series	LS
JESD-30 code	R-GDFP-F16
JESD-609 code	e0
length	9.65 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	MONOSTABLE MULTIVIBRATOR
Number of data/clock inputs	2
Number of functions	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	27 mA
propagation delay (tpd)	128 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.15 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.415 mm
Base Number Matches	1

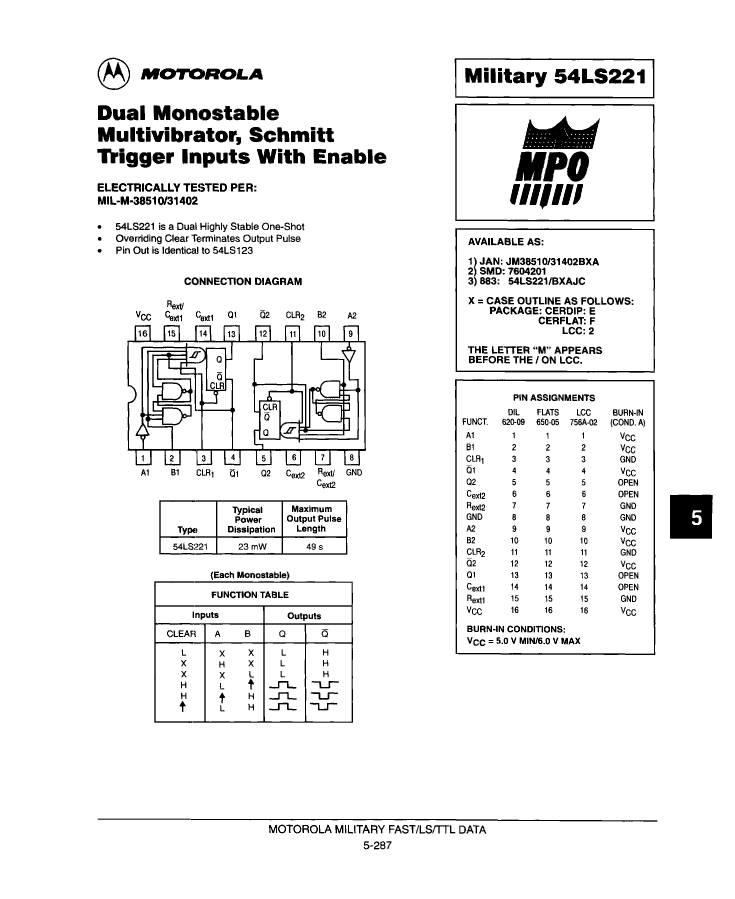

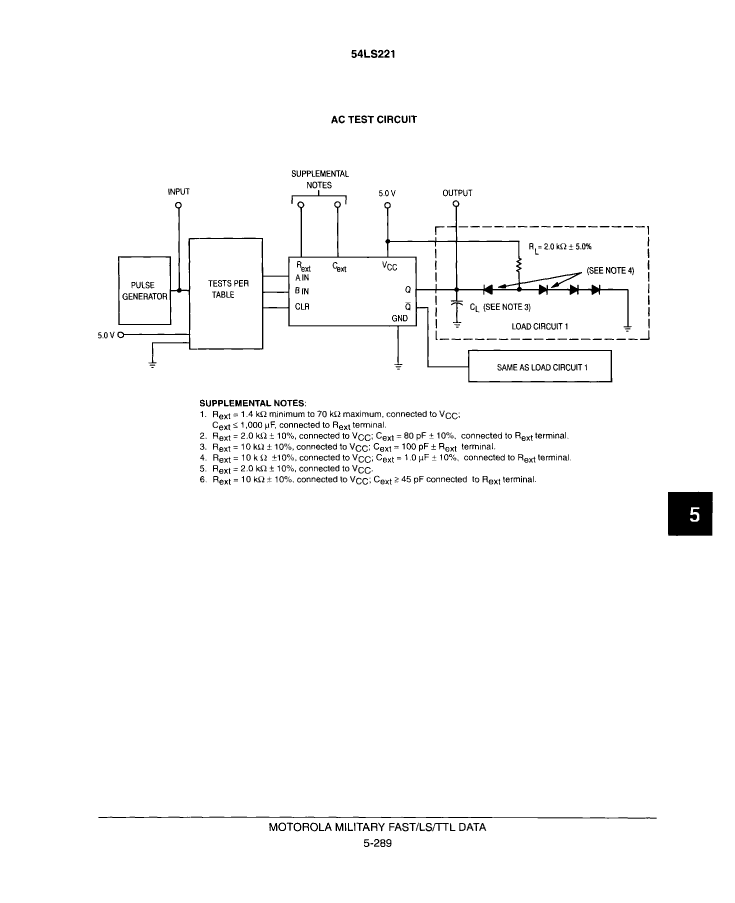

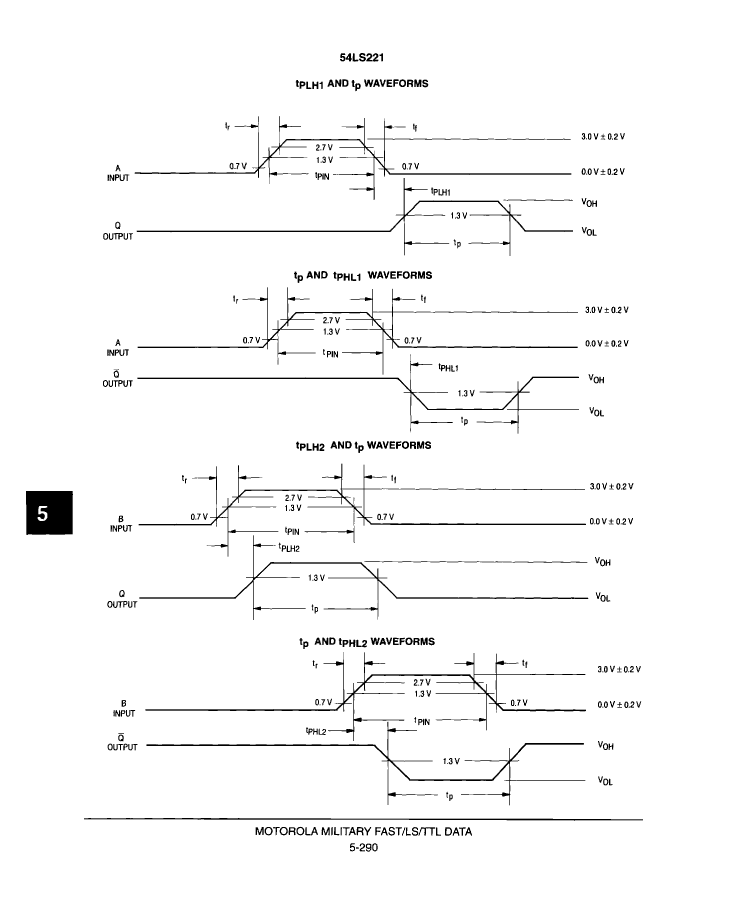

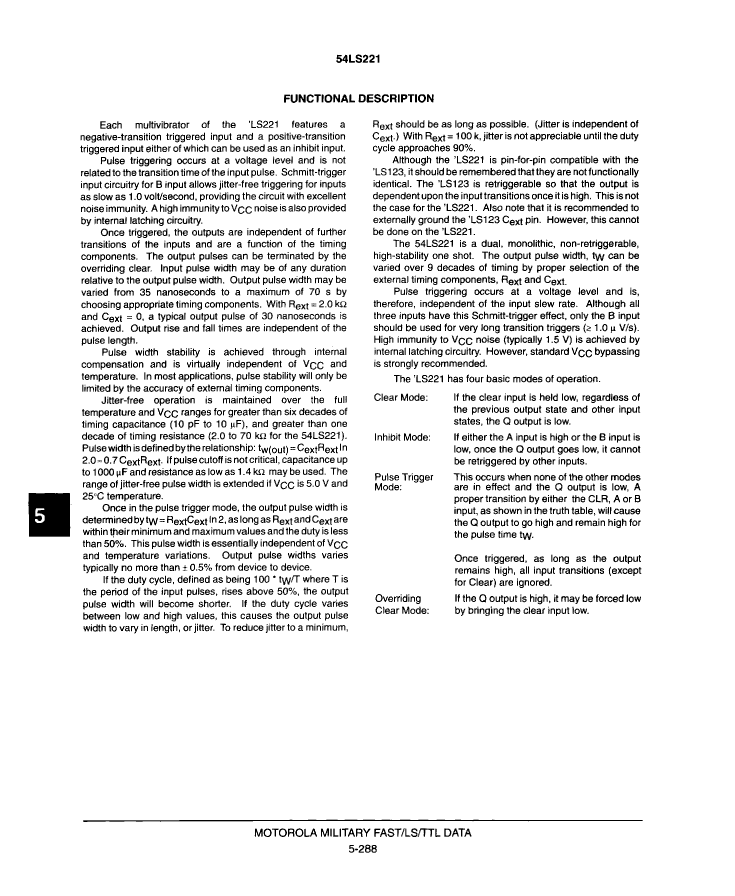

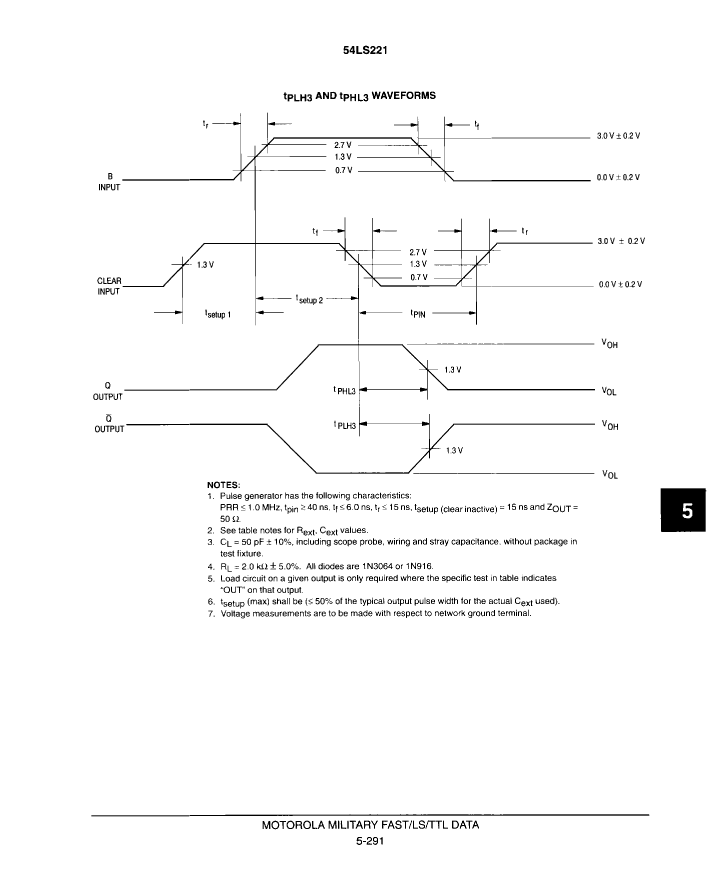

Preview

Download Datasheet

View All

54LS221/BFAJC Related Products

	54LS221/BFAJC	7604201EA	7604201EX	76042012A	7604201FX	7604201FA	76042012X	54LS221/BEAJC	54LS221M/B2AJC
Description	Monostable Multivibrator, LS Series, 2-Func, TTL, CDFP16, CERAMIC, FP-16	LS SERIES, DUAL MONOSTABLE MULTIVIBRATOR, CDIP16, CERDIP-16	LS SERIES, DUAL MONOSTABLE MULTIVIBRATOR, DIP16, 0.250 X 0.875 INCH, DIP-16	Monostable Multivibrator, LS Series, 2-Func, TTL, CQCC20, CERAMIC, LCC-20	Monostable Multivibrator, LS Series, 2-Func, TTL, 0.250 X 0.375 INCH, FP-16	Monostable Multivibrator, LS Series, 2-Func, TTL, CDFP16, CERAMIC, DFP-16	Monostable Multivibrator, LS Series, 2-Func, TTL, CQCC20, CERAMIC, CC-20	Monostable Multivibrator, LS Series, 2-Func, TTL, CDIP16, CERDIP-16	Monostable Multivibrator, LS Series, 2-Func, TTL, CQCC20, CERAMIC, LCC-20
package instruction	DFP, FL16,.3	CERDIP-16	DIP,	QCCN,	DFP,	DFP,	CERAMIC, CC-20	DIP, DIP16,.3	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
series	LS	LS	LS	LS	LS	LS	LS	LS	LS
JESD-30 code	R-GDFP-F16	R-GDIP-T16	R-XDIP-T16	S-CQCC-N20	R-XDFP-F16	R-GDFP-F16	S-CQCC-N20	R-GDIP-T16	S-CQCC-N20
Logic integrated circuit type	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR
Number of data/clock inputs	2	2	2	2	2	2	2	2	2
Number of functions	2	2	2	2	2	2	2	2	2
Number of terminals	16	16	16	20	16	16	20	16	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP	DIP	QCCN	DFP	DFP	QCCN	DIP	QCCN
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	FLATPACK	IN-LINE	IN-LINE	CHIP CARRIER	FLATPACK	FLATPACK	CHIP CARRIER	IN-LINE	CHIP CARRIER
propagation delay (tpd)	128 ns	128 ns	128 ns	128 ns	128 ns	128 ns	128 ns	128 ns	128 ns
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	YES	YES	YES	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	FLAT	FLAT	NO LEAD	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	DUAL	DUAL	QUAD	DUAL	DUAL	QUAD	DUAL	QUAD
Base Number Matches	1	1	1	1	1	1	1	1	1
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	-	-
Other features	NON-RETRIGGERABLE; TRIGGERABLE FROM CLEAR INPUT ALSO; MIN OUTPUT PULSE WIDTH = 20NS	NON-RETRIGGERABLE; TRIGGERABLE FROM CLEAR INPUT ALSO; MIN OUTPUT PULSE WIDTH = 20NS	-	NON-RETRIGGERABLE; TRIGGERABLE FROM CLEAR INPUT ALSO; MIN OUTPUT PULSE WIDTH = 20NS	-	NON-RETRIGGERABLE; TRIGGERABLE FROM CLEAR INPUT ALSO; MIN OUTPUT PULSE WIDTH = 20NS	NON-RETRIGGERABLE; TRIGGERABLE FROM CLEAR INPUT ALSO; MIN OUTPUT PULSE WIDTH = 20NS	NON-RETRIGGERABLE; TRIGGERABLE FROM CLEAR INPUT ALSO; MIN OUTPUT PULSE WIDTH = 20NS	NON-RETRIGGERABLE; TRIGGERABLE FROM CLEAR INPUT ALSO; MIN OUTPUT PULSE WIDTH = 20NS
length	9.65 mm	19.3 mm	-	8.885 mm	-	9.65 mm	8.885 mm	19.3 mm	8.89 mm
Load capacitance (CL)	50 pF	50 pF	-	50 pF	-	50 pF	-	50 pF	50 pF
Maximum supply current (ICC)	27 mA	27 mA	-	27 mA	-	27 mA	-	27 mA	27 mA
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	-	MIL-STD-883	-	MIL-STD-883	-	-	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum seat height	2.15 mm	4.19 mm	-	1.9 mm	-	2.15 mm	1.9 mm	4.19 mm	1.9 mm
Terminal pitch	1.27 mm	2.54 mm	-	1.27 mm	-	1.27 mm	1.27 mm	2.54 mm	1.27 mm
width	6.415 mm	7.62 mm	-	8.885 mm	-	6.415 mm	8.885 mm	7.62 mm	8.89 mm
