BHR50VUA: Description10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector; File Size118KB，1 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

BHR50VUA Overview

10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

BHR50VUA Parametric

Parameter Name	Attribute value
Connector type	BOARD CONNECTOR
Contact materials	BRASS
Terminal spacing	2.54 mm
Total number of contacts	10
Processing package description	ROHS COMPLIANT
each_compli	Yes
EU RoHS regulations	Yes
state	Contact Mfr
width	0.3460 inch
body_depth	0.3580 inch
body_diamete	0.8000 inch
Shell style	RECEPTACLE
Contact surface matching	GOLD OVER NICKEL
Contact coated terminals	TIN OVER COPPER
Connector male and female	MALE
contact_patte	RECTANGULAR
contact_resistance	20 mohm
contact_style	SQ PIN-SKT
dielectric_withstanding_voltage__v_	1000VAC
According to DIN	NO
durability	500 Cycles
Filter characteristics	NO
Comply with IEC	NO
insulation_resistance	5.00E9 ohm
insulator_col	BLACK
insulator_material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
jesd_609_code	e3
Manufacturer Series	BHR
mating_contact_pitch__inch_	0.1
mating_contact_row_spacing__inch_	0.1
Meet MIL	NO
hybrid connection	NO
mounting_option_1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
umber_of_connectors	ONE
umber_of_pcb_rows	2
Number of load rows	2
Minimum operating temperature	-40 Cel
erating_temperature_max__cel_	105
Options	GENERAL PURPOSE
cb_contact_patte	RECTANGULAR
cb_contact_row_spacing__mm_	2.54
lating_thickness__inch_	FLASH
larization_key	POLARIZED HOUSING
ed_current__signal_	1 A
eference_standard	UL, CSA
eliability	COMMERCIAL
sub_category	Headers and Edge Type Connectors
erminal_length	0.1300 inch
Terminal type	SOLDER
UL flammability code	94V-0
dditional_feature	ROHS COMPLIANT

Preview

Download Datasheet

View All

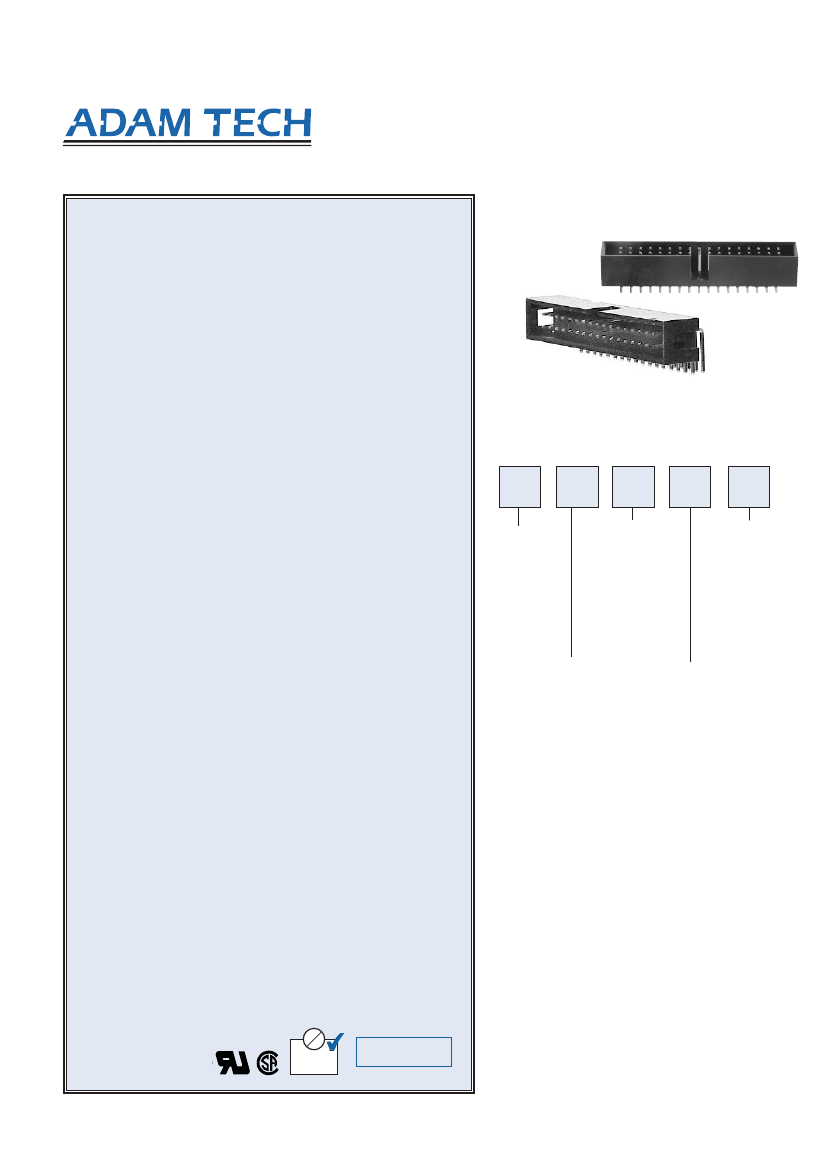

.100" BOX HEADERS

Adam Technologies, Inc.

.100" X .100" [2.54 X 2.54] CENTERLINE

BHR SERIES

INTRODUCTION:

Adam Tech BHR Series .100" Box Headers are a dual row shrouded

header for use with dual row IDC female socket connectors. Our low

profile, space saving design has a center slot for the socket’s

polarization bump. Adam Tech’s Box Headers are available in

Straight PCB Mount, Right Angle PCB Mount and SMT Mounting.

Plating options include choice of Gold, Tin or Selective Gold. SMT

versions are manufactured with a Hi-Temp insulator. Additional

options include latches and custom pin lengths.

FEATURES:

Superior low profile design

Slot for IDC socket Polarization bump

Straight PCB, Right Angle PCB and SMT versions

Gold, Tin or Selective Gold plating

Options include Elevated types and integral latches

Hi-Temp insulator available

MATING SOCKETS:

Adam Tech .100" X .100" dual row IDC sockets

SPECIFICATIONS:

Material:

Insulator: PBT, glass reinforeced, rated UL94V-0

Optional Hi-Temp insulator: Nylon 6T, rated UL94V-0

Insulator Color: Black (Gray optional)

Contacts: Brass

Plating:

U = Gold flash (30u” optional) over nickel underplate

SG = Gold flash (30u” optional) over nickel underplate on

contact area, tin over copper underplate on tails.

T = Tin over copper underplate overall

Electrical:

Operating voltage: 250V AC max.

Current rating: 1 Amp max

Contact resistance: 20 mΩ max. initial

Insulation resistance: 5000 MΩ min.

Dielectric withstanding voltage: 1000V AC for 1 minute

Mechanical:

Mating durability: 500 cycles min.

Temperature Rating:

Operating temperature: -55°C to +105°C

PACKAGING:

Anti-ESD plastic trays

SAFETY AGENCY APPROVALS:

UL Recognized File No. E224053

CSA Certified File No. LR1578596

ORDERING INFORMATION

BHR

SERIES

INDICATOR

BHR

= .100"

Box Header

MOUNTING

ORIENTATION

= Straight

Mount

= Right Angle

Mount

PIN LENGTH

= Standard

solder tail

= Special length,

customer

specified

SMT

= Surface

Mount

NO. OF

POSITIONS

08, 10, 14, 16,

20, 24, 26, 30,

34, 40, 44, 50,

60, 64

CONTACT PLATING

= Gold Plated

= Tin Plated

= Gold Plating in contact

area, tin plated tails

COMPLIANT

2002 / 95

/ EC

RoHS

HI-TEMP

INSULATOR

AVA I L A B L E

OPTIONS:

Add designator(s) to end of part number

=Box header with long latches

=Box header with short latches

= 30 µin gold plating in contact area

GY=Gray

color insulator

HT=

Hi-Temp insulator for Hi-Temp soldering processes

up to 260°C

(Add this option for thru-hole products only.

All SMT products are manufactured with Hi-Temp insulators)

909 Rahway Avenue

•

Union, New Jersey 07083

•

T: 908-687-5000

•

F: 908-687-5710

•

WWW.ADAM-TECH.COM

RoHS

COMPLIANT

257
