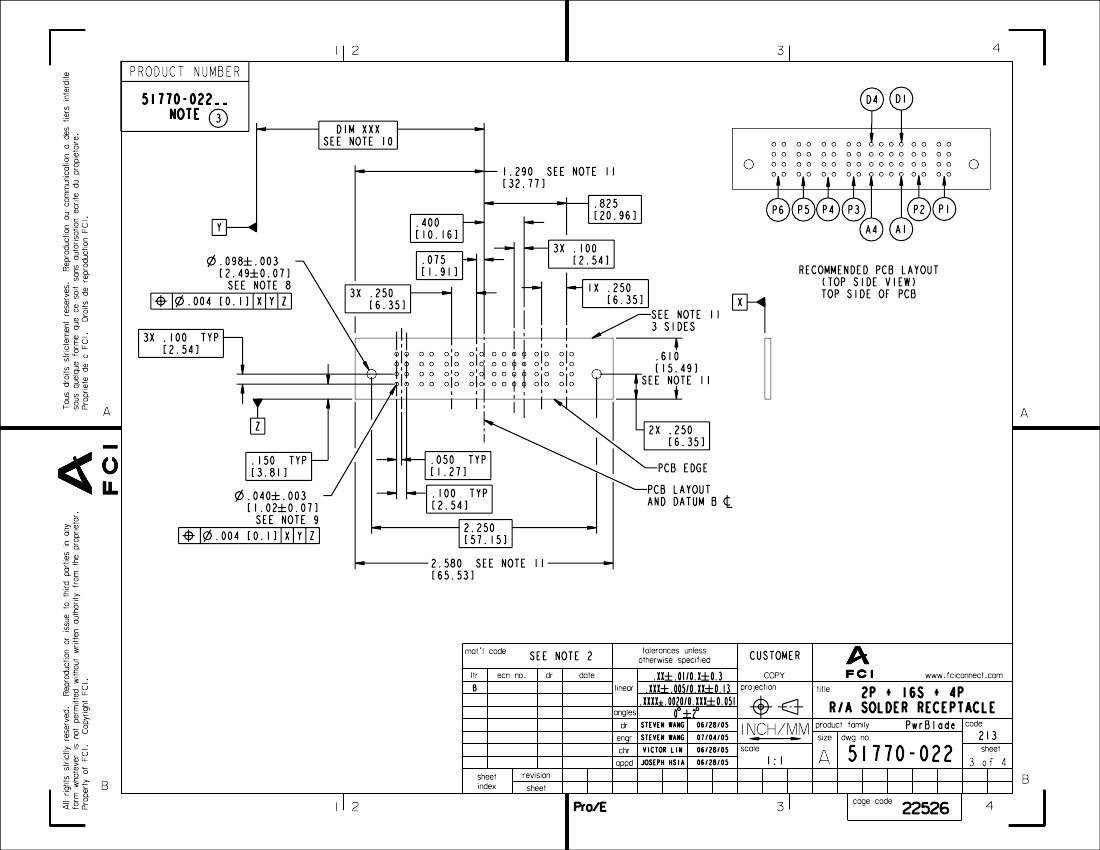

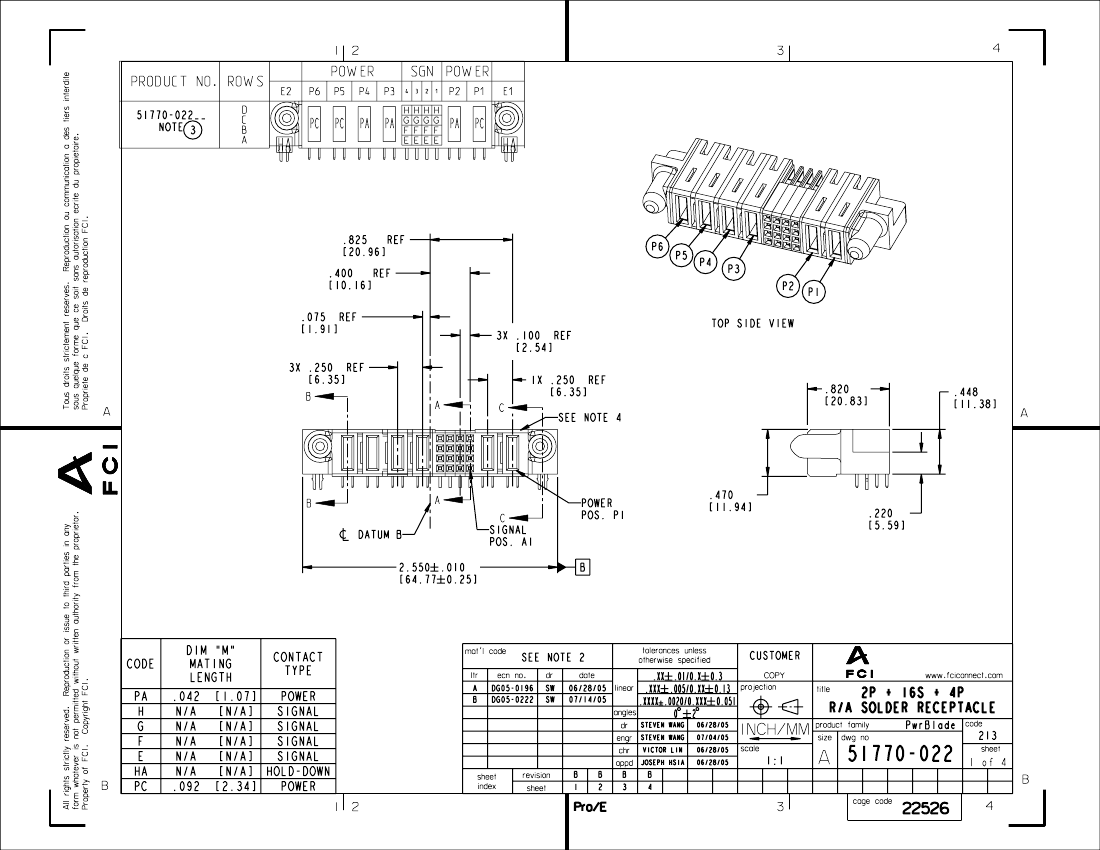

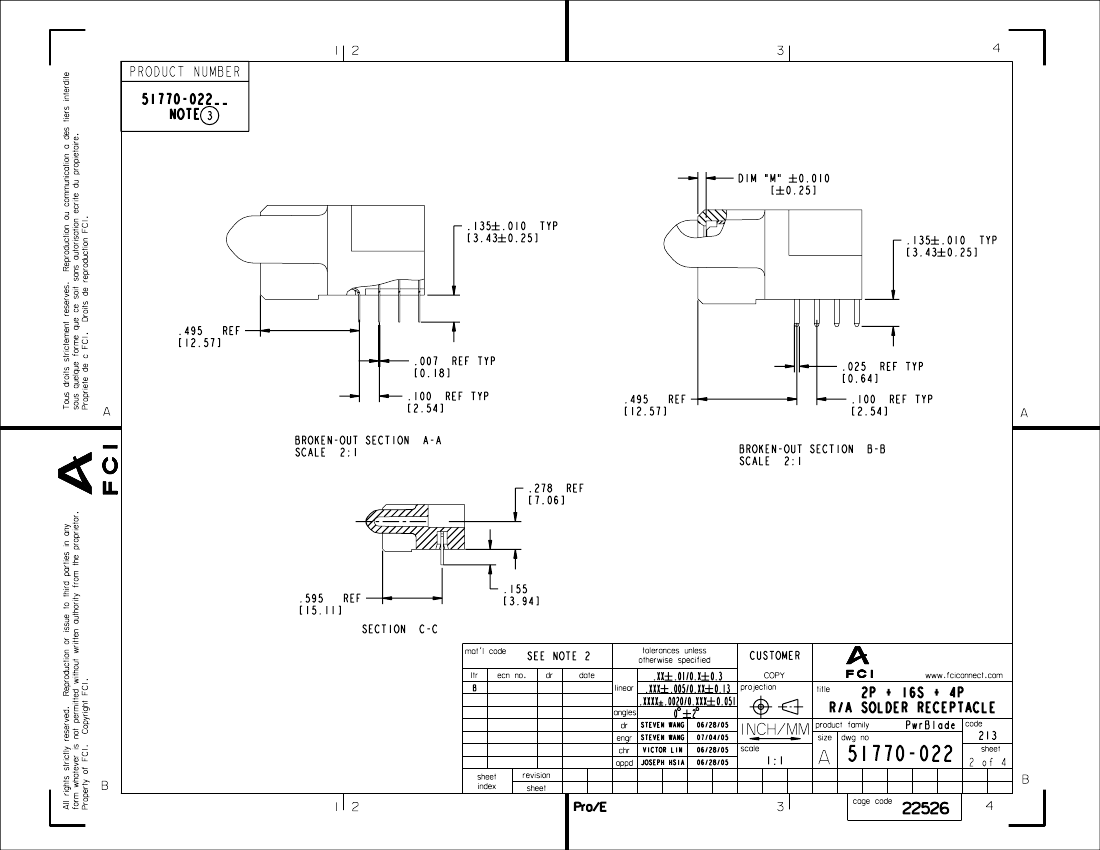

51770-022LF |
51770-022 |
| Description |
Board Connector, 22 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Guide Pin, Receptacle, LEAD FREE |
Board Connector, 22 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Guide Pin, Receptacle |
| Is it Rohs certified? |
conform to |
incompatible |
| Maker |
Amphenol |
Amphenol |
| Reach Compliance Code |
compliant |
compliant |
| ECCN code |
EAR99 |
EAR99 |
| Is Samacsys |
N |
N |
| Other features |
TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM |
TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM |
| Board mount options |
SPLIT BOARD LOCK |
SPLIT BOARD LOCK |
| body width |
0.47 inch |
0.47 inch |
| subject depth |
0.82 inch |
0.82 inch |
| body length |
2.55 inch |
2.55 inch |
| Body/casing type |
RECEPTACLE |
RECEPTACLE |
| Connector type |
BOARD CONNECTOR |
BOARD CONNECTOR |
| Contact arrangement |
S16P6 |
S16P6 |
| Contact to complete cooperation |
NOT SPECIFIED |
NOT SPECIFIED |

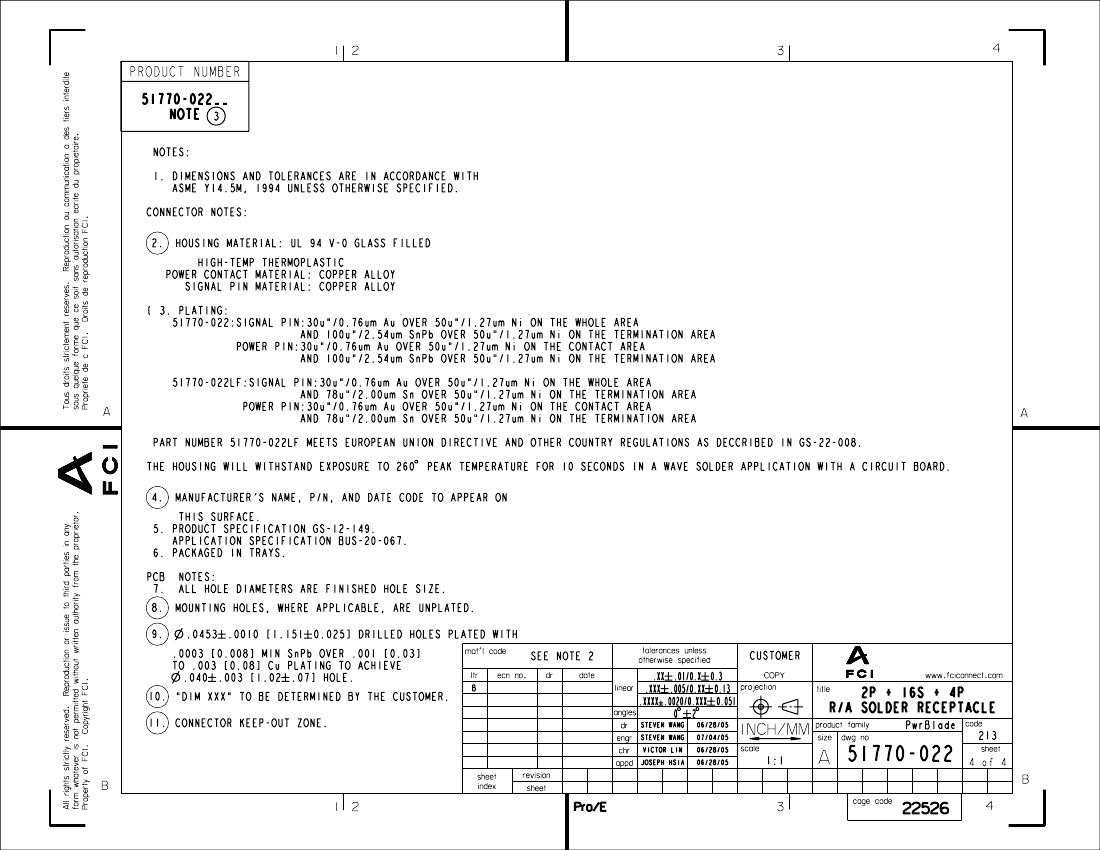

| Contact completed and terminated |
TIN OVER NICKEL |
TIN/LEAD OVER NICKEL |
| Contact point gender |
FEMALE |
FEMALE |
| Contact material |
NOT SPECIFIED |
NOT SPECIFIED |
| Contact resistance |
20 mΩ |
20 mΩ |
| Contact style |
HYBRID |
HYBRID |
| DIN compliance |
NO |
NO |
| Dielectric withstand voltage |
2500VDC V |
2500VDC V |
| Durability |
200 Cycles |
200 Cycles |
| Filter function |
NO |
NO |
| IEC compliance |
NO |
NO |
| maximum insertion force |
.973 N |
.973 N |
| Insulation resistance |
500000000 Ω |
500000000 Ω |
| insulator material |
GLASS FILLED THERMOPLASTIC |
GLASS FILLED THERMOPLASTIC |
| MIL compliance |
NO |
NO |
| Manufacturer's serial number |
51770 |
51770 |
| Mixed contacts |
YES |
YES |
| Installation option 1 |
GUIDE PIN |
GUIDE PIN |
| Installation option 2 |
LOCKING |
LOCKING |
| Installation method |
RIGHT ANGLE |
RIGHT ANGLE |
| Installation type |
BOARD |
BOARD |
| Number of connectors |
ONE |
ONE |
| Number of rows loaded |
4 |
4 |
| Maximum operating temperature |
85 °C |
85 °C |
| Minimum operating temperature |
-55 °C |
-55 °C |
| Options |
GENERAL PURPOSE |
GENERAL PURPOSE |
| Plating thickness |
30u inch |
30u inch |
| Guideline |
UL |
UL |
| reliability |
COMMERCIAL |
COMMERCIAL |
| Terminal length |
0.135 inch |
0.135 inch |
| Terminal pitch |
2.54 mm |
2.54 mm |
| Termination type |
SOLDER |
SOLDER |
| Total number of contacts |
22 |
22 |
| UL Flammability Code |
94V-0 |
94V-0 |
| Evacuation force-minimum value |
.1668 N |
.1668 N |
| Base Number Matches |
1 |
1 |
