BDC01A datasheet, PDF - EEWORLD Datasheet

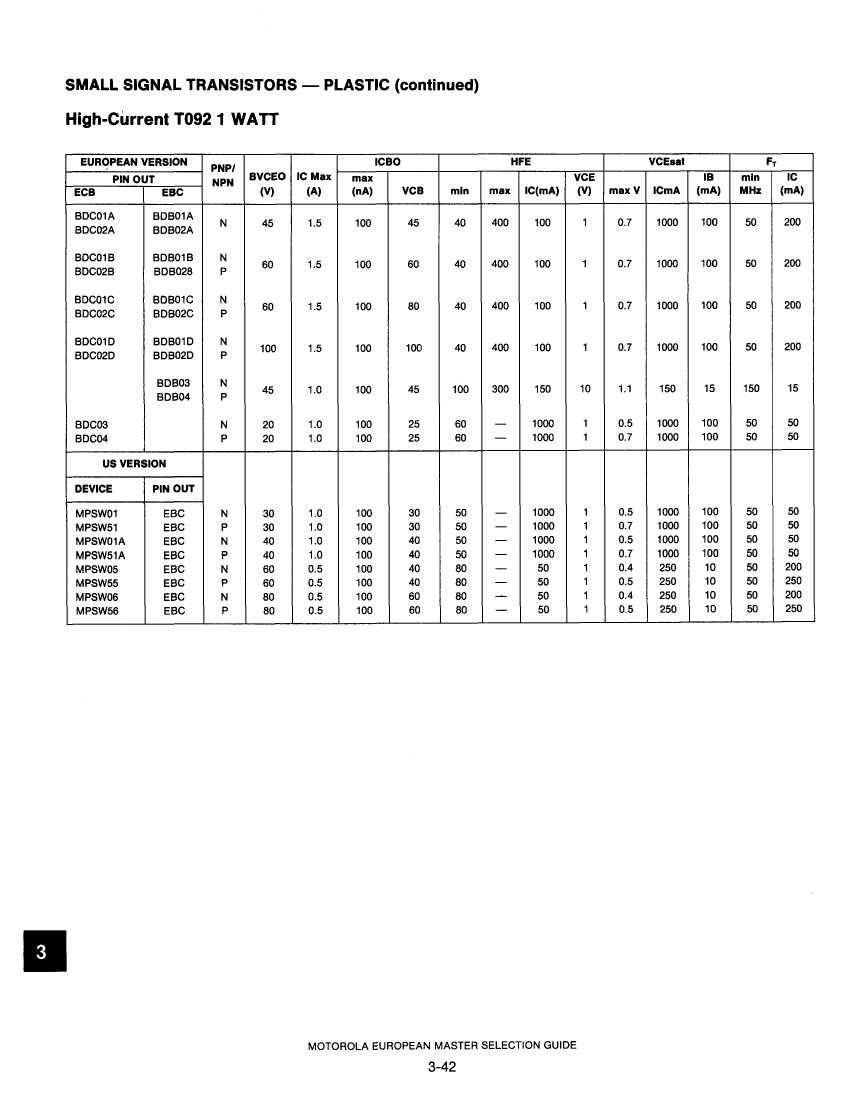

BDC01A: DescriptionTransistor; CategoryDiscrete semiconductor The transistor; File Size29KB，1 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BDC01A Overview

Transistor

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	,
Reach Compliance Code	unknown
Is Samacsys	N
Maximum collector current (IC)	1.5 A
Configuration	Single
Minimum DC current gain (hFE)	40
JESD-609 code	e0
Maximum operating temperature	150 °C
Polarity/channel type	NPN
Maximum power dissipation(Abs)	1 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	50 MHz
Base Number Matches	1

	BDC01A	BDC01B	BDC02A	BDC02B	BDC02C	BDB02C	BDC02D	BDB01A
Description	Transistor	Transistor	Transistor	Transistor	Transistor	Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-226AE	Small Signal Bipolar Transistor, 0.5A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-92	Transistor
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum collector current (IC)	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	0.5 A	0.5 A	0.5 A
Configuration	Single	Single	Single	Single	Single	SINGLE	SINGLE	Single
Minimum DC current gain (hFE)	40	40	40	40	40	25	25	40
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Polarity/channel type	NPN	NPN	PNP	PNP	PNP	PNP	PNP	NPN
Maximum power dissipation(Abs)	1 W	1 W	1 W	1 W	1 W	1 W	1 W	1 W
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz
Is Samacsys	N	N	N	N	N	N	-	-
Base Number Matches	1	1	1	1	1	1	1	-
