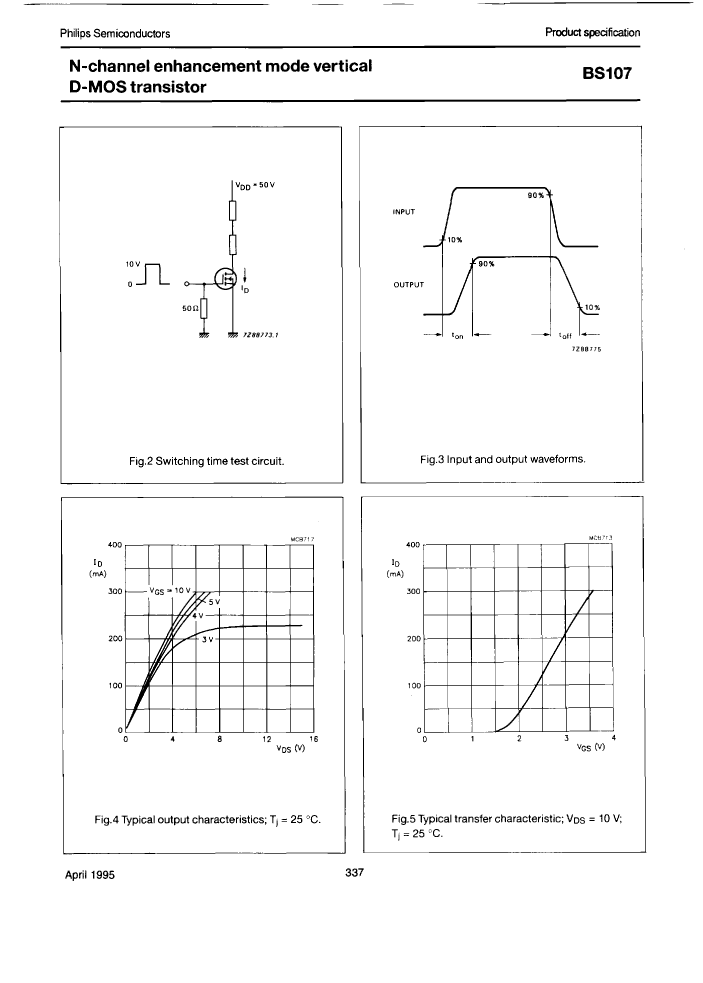

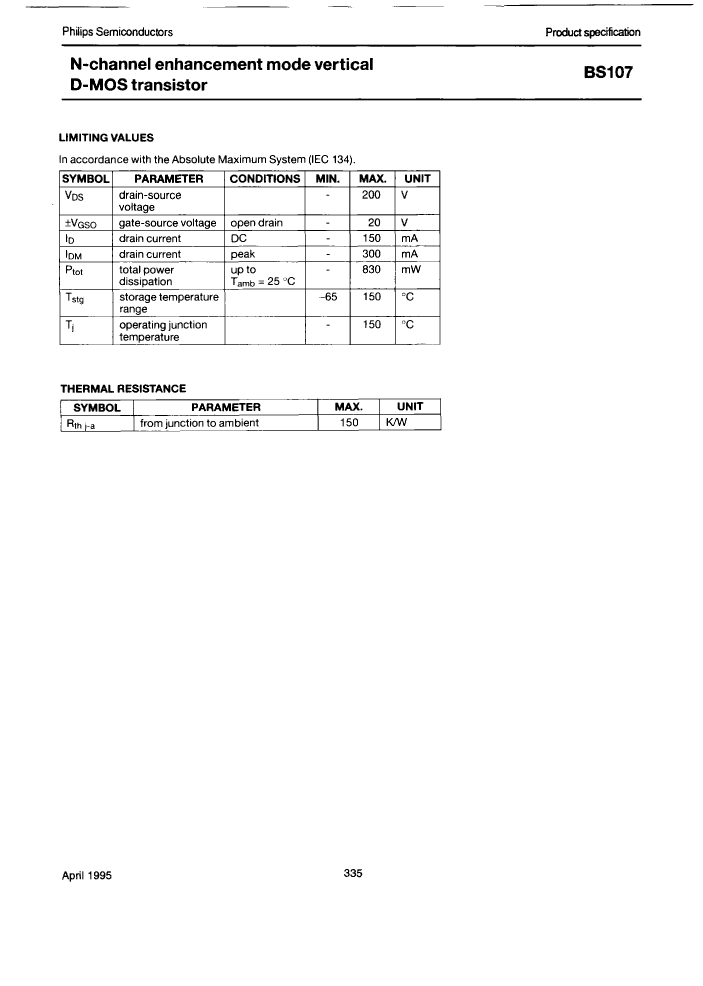

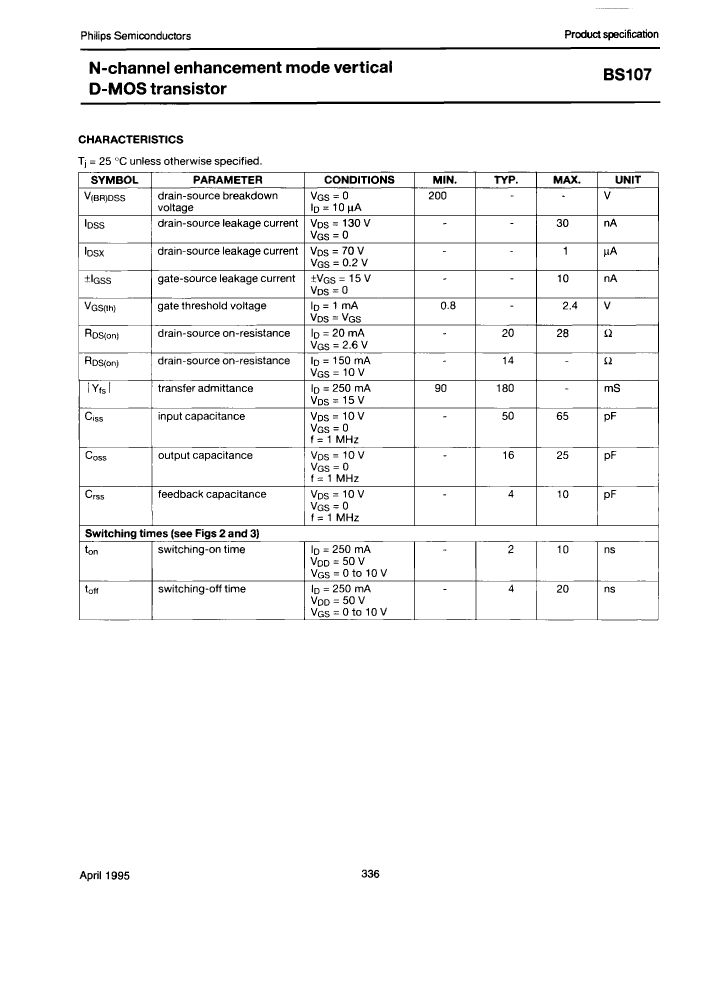

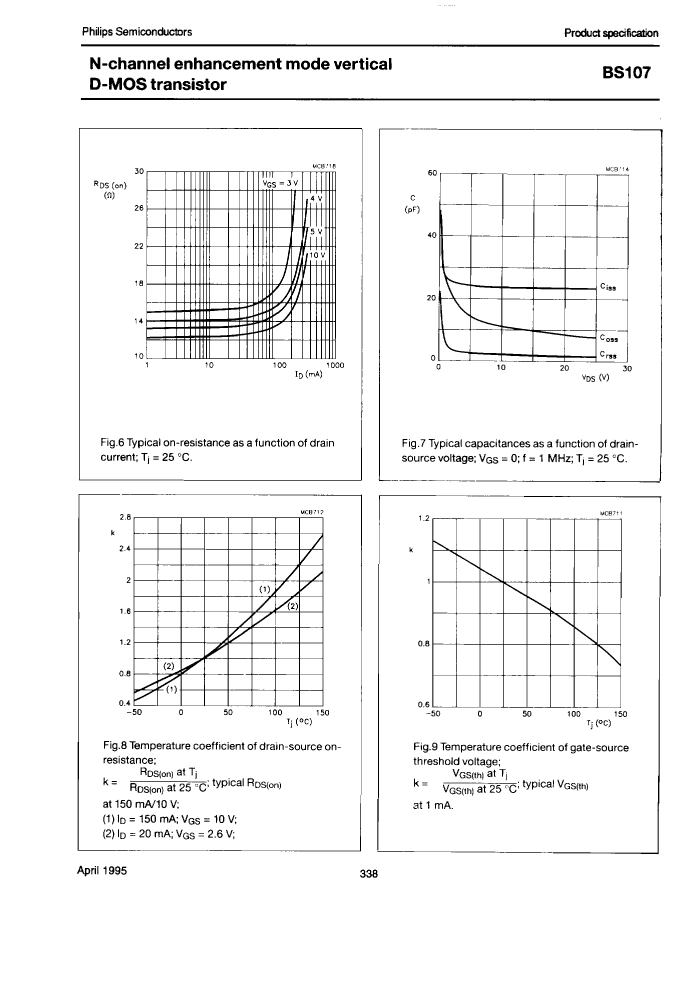

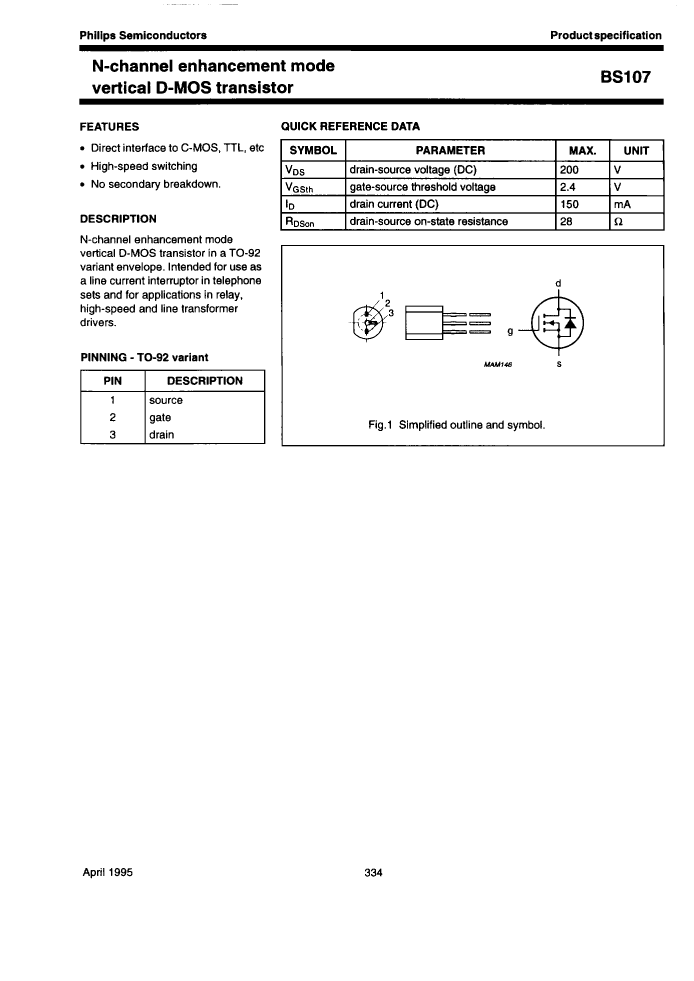

BS107T/R Overview

TRANSISTOR 150 mA, 200 V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET, TO-92, FET General Purpose Small Signal

Parameter Name	Attribute value
Maker	NXP
package instruction	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOGIC LEVEL COMPATIBLE
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	200 V
Maximum drain current (Abs) (ID)	0.13 A
Maximum drain current (ID)	0.15 A
Maximum drain-source on-resistance	28 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	10 pF
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	1 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON

	BS107T/R	BS107AMO
Description	TRANSISTOR 150 mA, 200 V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET, TO-92, FET General Purpose Small Signal	TRANSISTOR 150 mA, 200 V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET, TO-92, FET General Purpose Small Signal
Maker	NXP	NXP
package instruction	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	200 V	200 V
Maximum drain current (Abs) (ID)	0.13 A	0.13 A
Maximum drain current (ID)	0.15 A	0.15 A
Maximum drain-source on-resistance	28 Ω	28 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	10 pF	10 pF
JEDEC-95 code	TO-92	TO-92
JESD-30 code	O-PBCY-T3	O-PBCY-T3
Number of components	1	1
Number of terminals	3	3
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	N-CHANNEL	N-CHANNEL
Maximum power dissipation(Abs)	1 W	1 W
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
