MC54HC138AJD datasheet, PDF - EEWORLD Datasheet

MC54HC138AJD: DescriptionDecoder/Driver, HC/UH Series, Inverted Output, CMOS, CDIP16, 620-09; Categorylogic logic; File Size443KB，7 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

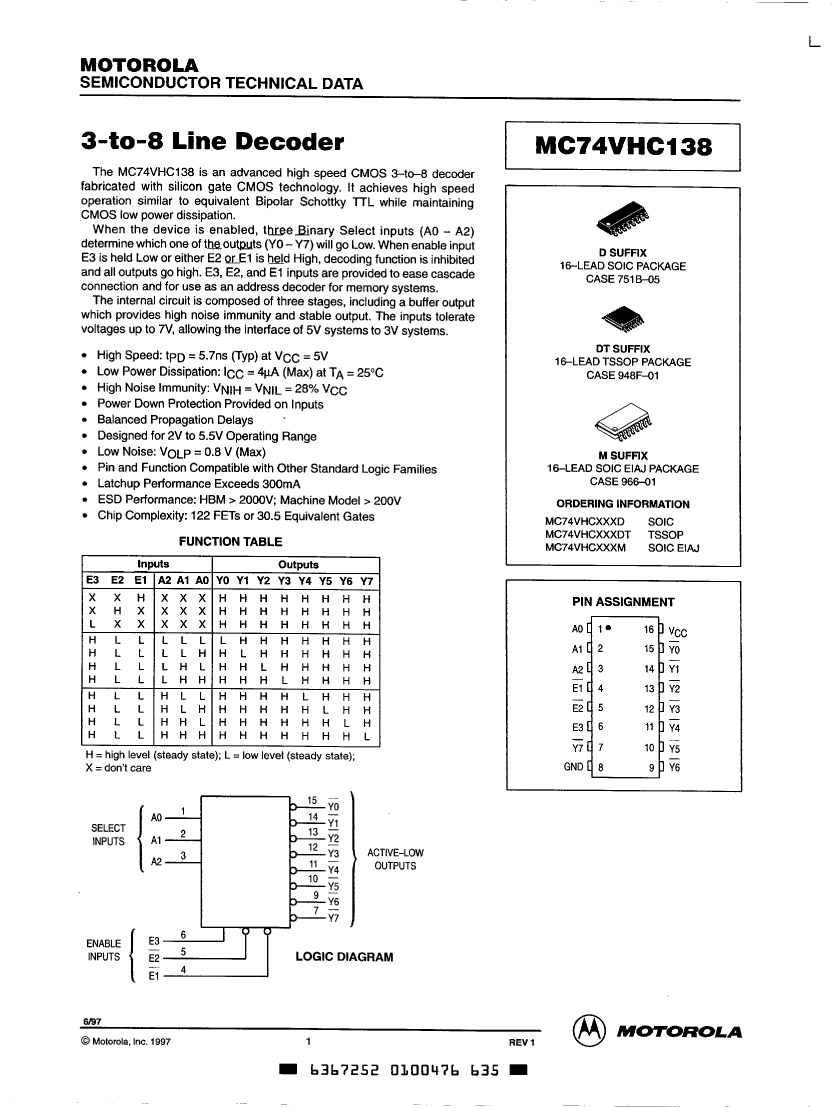

MC54HC138AJD Overview

Decoder/Driver, HC/UH Series, Inverted Output, CMOS, CDIP16, 620-09

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	620-09
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
series	HC/UH
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.3 mm
Load capacitance (CL)	50 pF

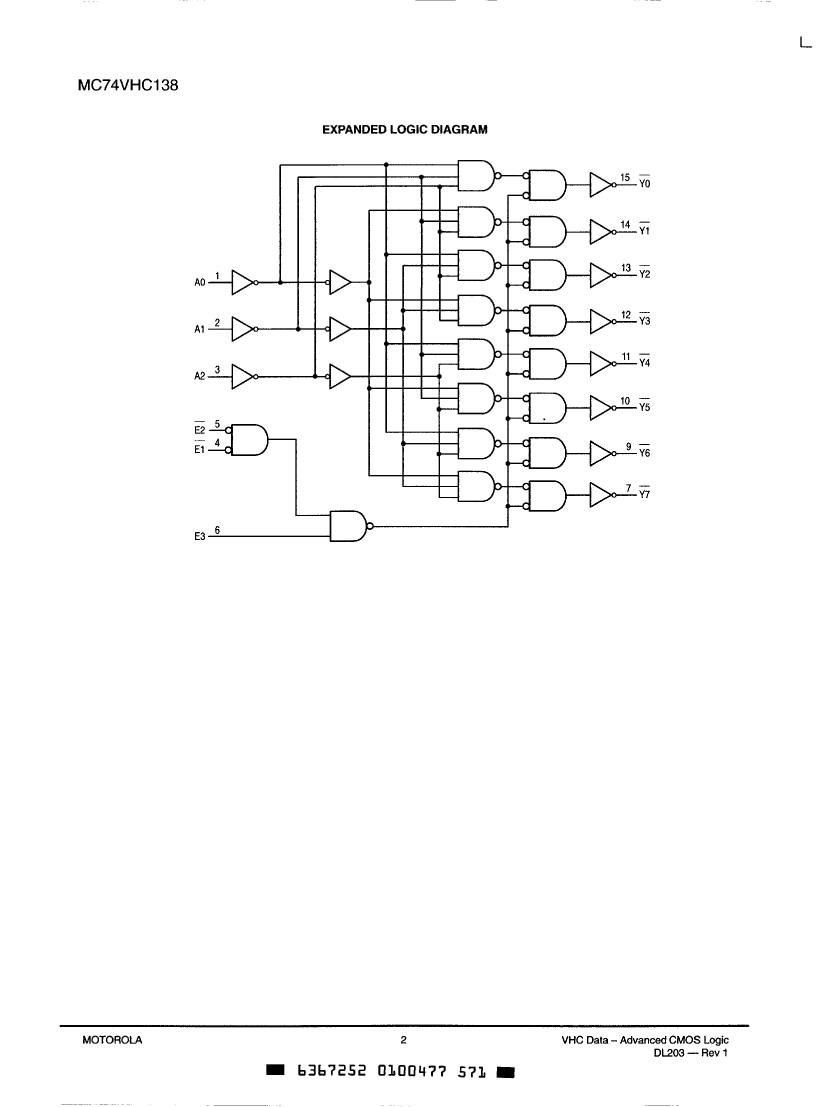

Logic integrated circuit type	OTHER DECODER/DRIVER
MaximumI(ol)	0.004 A
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/6 V

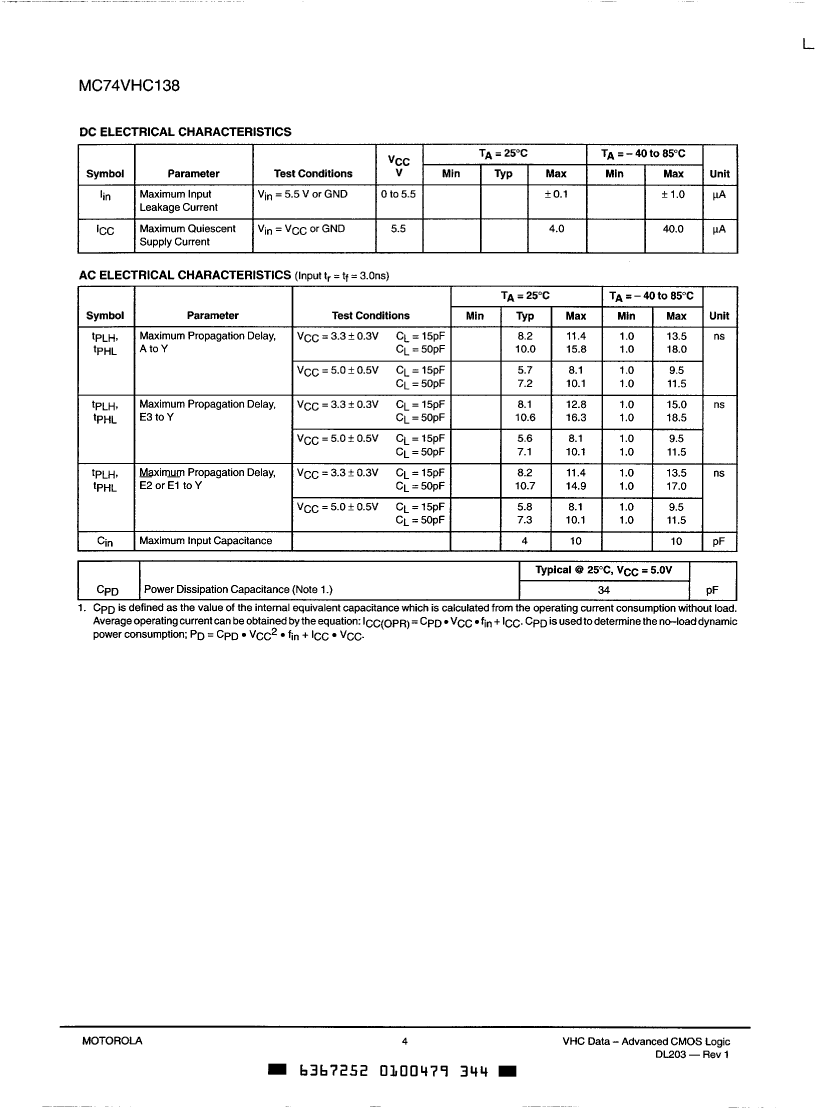

Prop。Delay @ Nom-Sup	41 ns

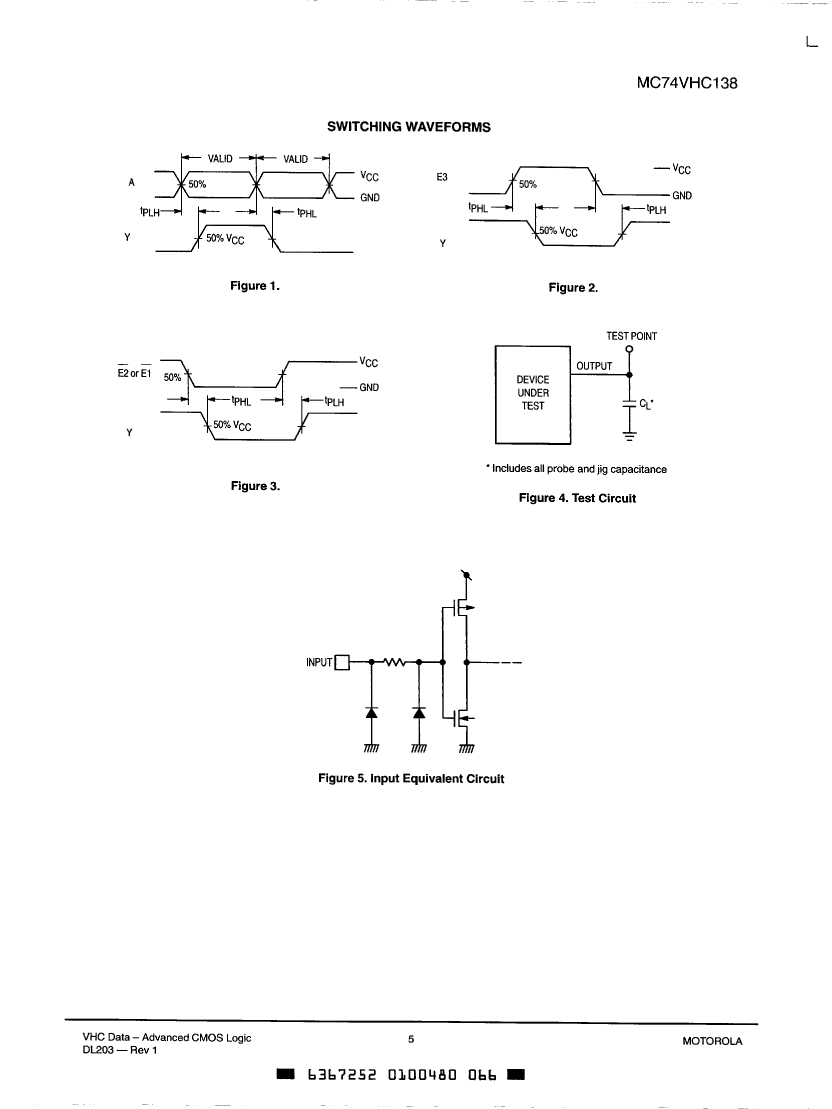

propagation delay (tpd)	41 ns
Certification status	Not Qualified
Maximum seat height	4.19 mm

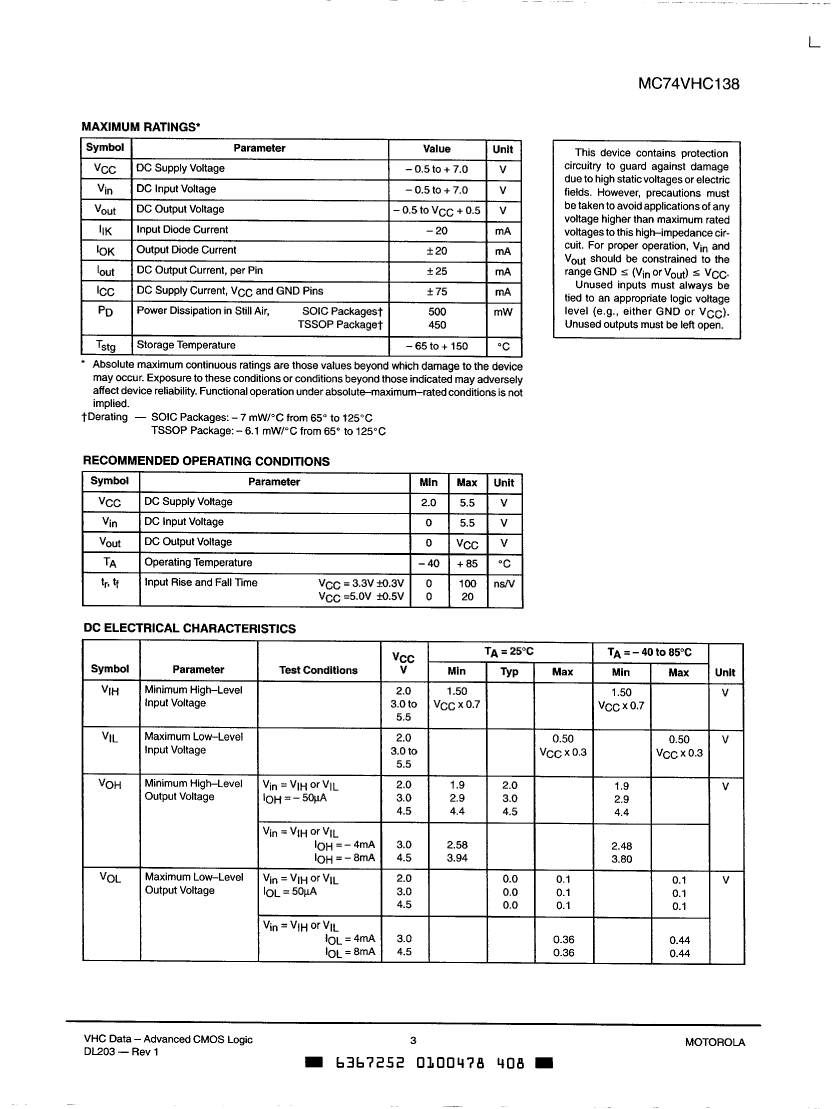

Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

	MC54HC138AJD	MC74HC138ND	MC74HC138DD	MC74HC138NDS
Description	Decoder/Driver, HC/UH Series, Inverted Output, CMOS, CDIP16, 620-09	Decoder/Driver, CMOS, PDIP16	Decoder/Driver, CMOS, PDSO16	Decoder/Driver, CMOS, PDIP16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	620-09	DIP, DIP16,.3	SOP, SOP16,.25	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown
JESD-30 code	R-GDIP-T16	R-PDIP-T16	R-PDSO-G16	R-PDIP-T16
JESD-609 code	e0	e0	e0	e0
Logic integrated circuit type	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER
Number of functions	1	1	1	1
Number of terminals	16	16	16	16
Maximum operating temperature	125 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-40 °C	-40 °C	-40 °C
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	SOP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	SOP16,.25	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE
power supply	2/6 V	2/6 V	2/6 V	2/6 V
surface mount	NO	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	-
