MC10H188PS datasheet, PDF - EEWORLD Datasheet

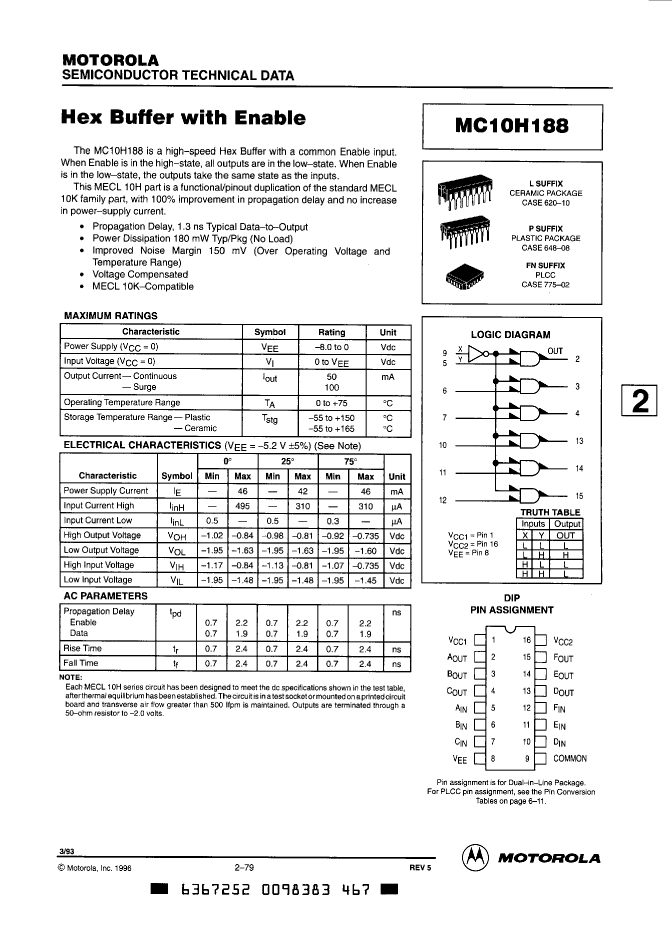

MC10H188PS: DescriptionBus Driver, 1-Func, 6-Bit, Inverted Output, ECL10K, PDIP16; Categorylogic logic; File Size70KB，1 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC10H188PS Overview

Bus Driver, 1-Func, 6-Bit, Inverted Output, ECL10K, PDIP16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Reach Compliance Code	unknown
Is Samacsys	N
Control type	ENABLE HIGH
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Logic integrated circuit type	BUS DRIVER
Number of digits	6
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
technology	ECL10K
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	MC10H188PS	MC10H188PDS	MC10H188LS	MC10H188LD
Description	Bus Driver, 1-Func, 6-Bit, Inverted Output, ECL10K, PDIP16	Bus Driver, 1-Func, 6-Bit, Inverted Output, ECL10K, PDIP16	Bus Driver, 1-Func, 6-Bit, Inverted Output, ECL10K, CDIP16	Bus Driver, 1-Func, 6-Bit, Inverted Output, ECL10K, CDIP16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
Reach Compliance Code	unknown	unknown	unknown	unknown
Control type	ENABLE HIGH	ENABLE HIGH	ENABLE HIGH	ENABLE HIGH
JESD-30 code	R-PDIP-T16	R-PDIP-T16	R-XDIP-T16	R-XDIP-T16
JESD-609 code	e0	e0	e0	e0
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	6	6	6	6
Number of functions	1	1	1	1
Number of terminals	16	16	16	16
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
surface mount	NO	NO	NO	NO
technology	ECL10K	ECL10K	ECL10K	ECL10K
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
