LMUN5334DW1T1G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> LMUN5334DW1T1G

LMUN5334DW1T1G: DescriptionSmall Signal Bipolar Transistor, 0.1A I(C), 2-Element, NPN and PNP, Silicon,; CategoryDiscrete semiconductor The transistor; File Size420KB，29 Pages; ManufacturerLRC; Websitehttp://www.lrc.cn

Download Datasheet Parametric Compare View All

LMUN5334DW1T1G Overview

Small Signal Bipolar Transistor, 0.1A I(C), 2-Element, NPN and PNP, Silicon,

LMUN5334DW1T1G Parametric

Parameter Name	Attribute value
Maker	LRC
package instruction	,
Reach Compliance Code	unknown
Is Samacsys	N
Maximum collector current (IC)	0.1 A
Minimum DC current gain (hFE)	80
Number of components	2
Polarity/channel type	NPN/PNP
Maximum power dissipation(Abs)	0.385 W
surface mount	YES
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

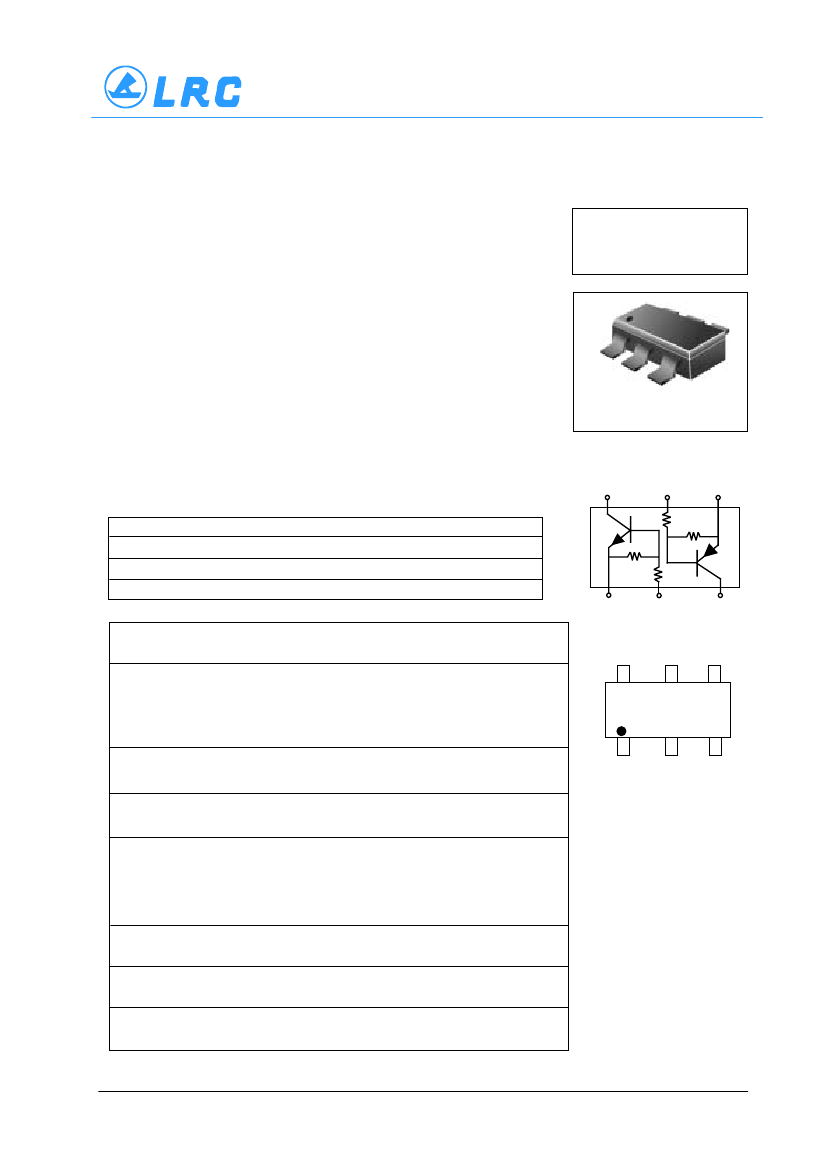

LESHAN RADIO COMPANY, LTD.

Dual Bias Resistor Transistors

NPN and PNP Silicon Surface Mount

Transistors with Monolithic Bias

Resistor Network

The BRT (Bias Resistor Transistor) contains a single transistor with a monolithic bias network

consisting of two resistors; a series base resistor and a base–emitter resistor. These digital tran-

sistors are designed to replace a single device and its external resistor bias network. The BRT

eliminates these individual components by integrating them into a single device. In the

LMUN5311DW1T1 series, two complementary BRT devices are housed in the SOT–363 package

which is ideal for low power surface mount applications where board space is at a premium.

• Simplifies Circuit Design

• Reduces Board Space

• Reduces Component Count

• Pb-Free Package is available

LMUN5311DW1T1

Series

SOT-363/SC-88

MAXIMUM RATINGS

= 25°C unless otherwise noted, common for Q

and Q

, – minus sign for Q

(PNP) omitted)

Rating

Collector-Base Voltage

Collector-Emitter Voltage

Collector Current

THERMAL CHARACTERISTICS

Characteristic

(One Junction Heated)

Total Device Dissipation

= 25°C

Derate above 25°C

Thermal Resistance –

Junction-to-Ambient

Characteristic

(Both Junctions Heated)

Total Device Dissipation

= 25°C

Derate above 25°C

Thermal Resistance –

Junction-to-Ambient

Thermal Resistance –

Junction-to-Lead

Junction and Storage

Temperature

1. FR–4 @ Minimum Pad

Symbol Value

CBO

CEO

100

Unit

Vdc

mAdc

Symbol

Max

187 (Note 1.)

256 (Note 2.)

1.5 (Note 1.)

2.0 (Note 2.)

Unit

mW/°C

°C/W

MARKING DIAGRAM

θJA

670 (Note 1.)

490 (Note 2.)

xx = Device Marking

(See Page 2)

Symbol

Max

250 (Note 1.)

385 (Note 2.)

2.0 (Note 1.)

3.0 (Note 2.)

Unit

mW/°C

°C/W

°C

DEVICE MARKING

INFORMATION

See specific marking information in

the device marking table on page 2 of

this data sheet.

θJA

θJL

, T

stg

493 (Note 1.)

325 (Note 2.)

188 (Note 1.)

208 (Note 2.)

–55 to +150

2. FR–4 @ 1.0 x 1.0 inch Pad

LMUN5311DW–1/29

LMUN5334DW1T1G Related Products

	LMUN5334DW1T1G	LMUN5330DW1T1	LMUN5330DW1T1G	LMUN5334DW1T1	LMUN5335DW1T1G	LMUN5335DW1T1	LMUN5314DW1T1G	LMUN5314DW1T1
Description	Small Signal Bipolar Transistor, 0.1A I(C), 2-Element, NPN and PNP, Silicon,	Small Signal Bipolar Transistor, 0.1A I(C), 2-Element, NPN and PNP, Silicon	Small Signal Bipolar Transistor, 0.1A I(C), 2-Element, NPN and PNP, Silicon,	Small Signal Bipolar Transistor, 0.1A I(C), 2-Element, NPN and PNP, Silicon	Small Signal Bipolar Transistor, 0.1A I(C), 2-Element, NPN and PNP, Silicon,	Small Signal Bipolar Transistor, 0.1A I(C), 2-Element, NPN and PNP, Silicon	Small Signal Bipolar Transistor, 0.1A I(C), 2-Element, NPN and PNP, Silicon,	Small Signal Bipolar Transistor, 0.1A I(C), 2-Element, NPN and PNP, Silicon
Maker	LRC	LRC	LRC	LRC	LRC	LRC	LRC	LRC
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Is Samacsys	N	N	N	N	N	N	N	N
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Minimum DC current gain (hFE)	80	3	3	80	80	80	80	80
Number of components	2	2	2	2	2	2	2	2
Polarity/channel type	NPN/PNP	NPN/PNP	NPN/PNP	NPN/PNP	NPN/PNP	NPN/PNP	NPN/PNP	NPN/PNP
Maximum power dissipation(Abs)	0.385 W	0.385 W	0.385 W	0.385 W	0.385 W	0.385 W	0.385 W	0.385 W
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Base Number Matches	1	1	1	1	1	1	1	1
