S5H3R Pin Diode Switch
Single Pole, Five Throw
Reflective
Features:
•
Incorporated TTL-compatible driver for
convenient system integration and operates
from +5 V and -15 V DC power supplies.
DC blocks at all RF ports.
Ruggedized construction.
RoHS-compliant versions available.
Hermetic versions available.
•
•
•
•
Specifications:
Parameter
Frequency Range
Insertion Loss (max)
VSWR (max) 50 ohms
Isolation (min)
Switching Speed (max)
CW RF Power, Operating (max)
Specification
0.01 – 1
1.5
1.5
75
250
1
Units
GHz
dB
ratio
dB
nsec
W
Notes:
DC Bias:
(Standard)
DC Bias:
(-5 option)
DC Bias:
(-12 option)
Control:
+5 V +/- 0.5 V @ 160 mA max
-15 V +/- 3 V @ 50 mA max
+5 V +/- 0.5 V @ 200 mA max
-5 V +/- 0.5 V @ 60 mA max
+15 V +/- 3 V @ 160 mA max
-15 V +/- 3 V @ 50 mA max
TTL 0 = Low Loss
TTL 1 = Isolation
E1 controls J2 – J1
E2 controls J3 – J1
E3 controls J4 – J1
E4 controls J5 – J1
E5 controls J6 – J1
Mechanical Specifications:
Case Styles:
Finish:
Bias & Control Pins:
Weight:
Mounting:
S5 Outline (Five bit control)
S5-3 Outline (Three bit control)
Gold Plate per MIL-G-45204
ø0.02” x 0.15” long
60 g max
ø0.10” through holes
(2) places
Switching speed is defined as 50% TTL to 90% RF (t-on) and 50%
TTL to 10% RF (t-off).
Three Bit Control:
(-3 option)
Environmental Specifications:
MIL-E-5400, MIL-STD-202, MIL-E-16400
Operating Temp:
-55 °C to +85 °C
Storage Temp:
-65 °C to +125 °C
Humidity:
MIL-STD-202F, M103, Cond B
Shock:
MIL-STD-202F, M213, Cond B
Altitude:
MIL-STD-202F, M105, Cond B
Vibration:
MIL-STD-202F, M204, Cond B
Thermal Shock:
MIL-STD-202F, M107, Cond A
Temperature Cycle:
MIL-STD-202F, M105C, Cond D
Screening:
E3 E2 E1
0
0 0
0
0 1
0
1 0
0
1 1
1 0 0
1 0 1
1 1 0
1 1 1
Low Loss Path
J2 - J1
J3 - J1
J4 - J1
J5 - J1
J6 - J1
ALL OFF
ALL OFF
ALL OFF
Internal Visual per MIL-STD-883, Method 2017
Temperature Cycle: -65 °C to +100 °C, 10 cycles
Hermetically-sealed switches are fine and gross leak checked per
MIL-STD-883, Method 1014.
Optional High-Rel screening available upon request. Contact the
factory to discuss your screening requirements.
SIGNAL & CONTROL SOLUTIONS
Revision Date: 2/25/2014
40 Industrial Way East, Eatontown , NJ 07724 [USA]
Phone: (732) 460-0212, Fax: (732) 460-0214
www.aeroflex.com/ascs, email: ascs-sales@aeroflex.com
SIGNAL & CONTROL SOLUTIONS

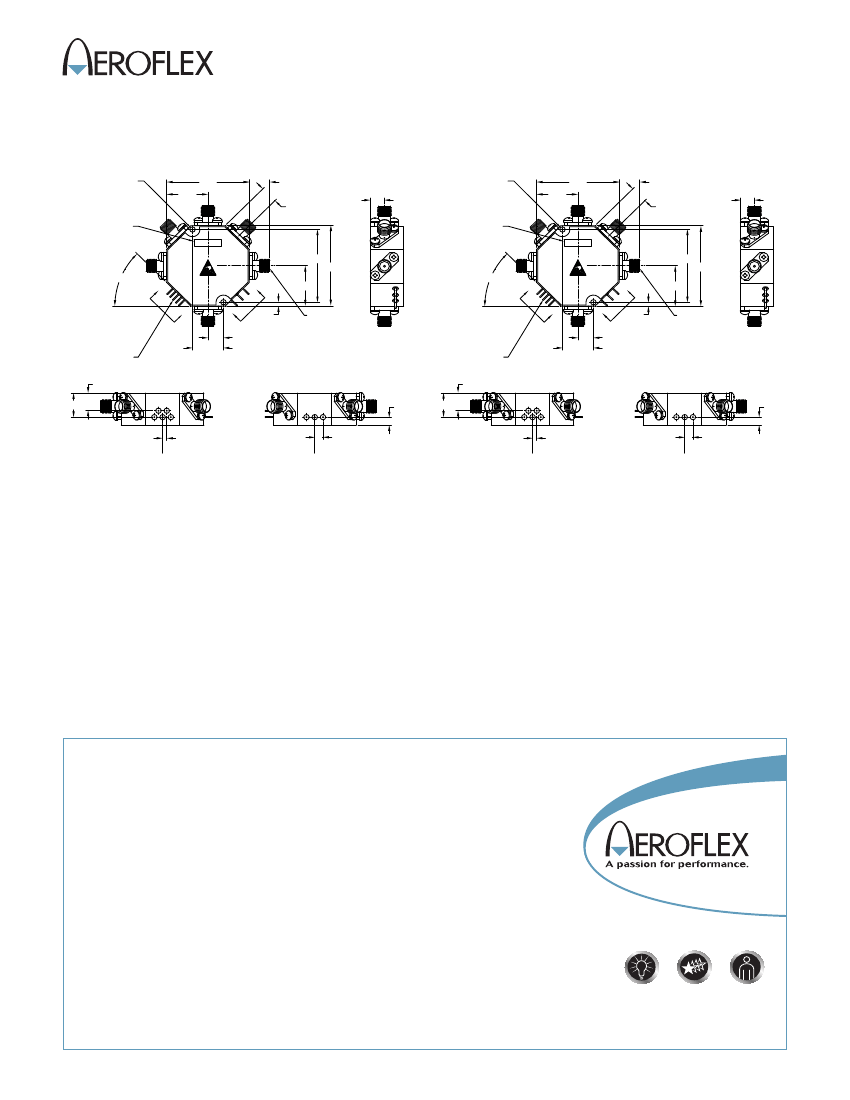

Outline Drawing:
S5H3R Pin Diode Switch
SP5T, Reflective
2X
Ø0.100 THRU
MOUNTING HOLE
1.50
0.75
0.38
REF.
0.31
TYP
0.25
2X
Ø0.100 THRU
MOUNTING HOLE
1.50
0.75
0.38
REF.
0.31
TYP
0.25
MODEL NUMBER
J3
J4
J5
MODEL NUMBER
J3
J4
J5
ACC
J2
SN:
0000
DC:
WWYY
J6
1.360
1.50
B
0.75
45°
A
ACC
J2
SN:
0000
DC:
WWYY
J6
1.360
1.50
B
0.75
45°
E
E 5
E 4
E 3
E1 2
E
N 3
E /C
N 2
E1 /C
A
+V
G
-V
+V
G
-V
J1
J1
A
B
0.07
0.28
6X
SMA FEMALE
0.560
A
B
0.07
0.28
6X
SMA FEMALE
8X
Ø0.020 X 0.15 LG
SOLDER PIN
0.33
0.45
0.560
8X
Ø0.020 X 0.15 LG
SOLDER PIN
VIEW B-B
0.15
TYP.
0.45
0.33
VIEW A-A
VIEW A-A
VIEW B-B
0.15
TYP.
C
L
0.08
(4) PLCS.
C
L
0.15
(2) PLCS.
C
L
0.08
(4) PLCS.
C
L
0.15
(2) PLCS.
OUTLINE CASE STYLE S5
OUTLINE CASE STYLE S5-3
Part Number Ordering Information:
•
•
•
•
•
•
•
•
•
•
Add
Add
Add
Add
Add
Add
Add
Add
Add
Add
“-RC” suffix: RoHS-compliant
“-H” suffix: Hermetic seal
“-5” suffix: +/-5 V DC supplies
“-5-RC” suffix: +/-5 V DC supplies, RoHS-compliant
“-5-H” suffix: +/-5 V DC supplies, Hermetic seal
“-12” suffix: +/-15 V DC supplies
“-12-RC” suffix: +/-15 V DC supplies, RoHS-compliant
“-12-H” suffix: +/-15 V DC supplies, Hermetic seal
“-3” suffix: Three bit logic control
“-3-RC” suffix: Three bit logic control, RoHS-compliant
•
•
•
•
•
•
•
Add “-3-H” suffix: Three bit logic control, Hermetic seal
Add “-3-5” suffix: Three bit logic control, +/-5 V DC supplies
Add “-3-5-RC” suffix: Three bit logic control, +/-5 V DC supplies,
RoHS-compliant
Add “-3-5-H” suffix: Three bit logic control, +/-5 V DC supplies,
Hermetic seal
Add “-3-12” suffix: Three bit logic control, +/-15 V DC supplies
Add “-3-12-RC” suffix: Three bit logic control, +/-15 V DC
supplies, RoHS-compliant
Add “-3-12-H” suffix: Three bit logic control +/-15 V DC supplies,
Hermetic seal
Aeroflex Signal & Control Solutions
Aeroflex Microelectronic Solutions
40 Industrial Way East
Eatontown , NJ 07724 [USA]
Fax: (732) 460-0214
Sales
Phone: (732) 460-0212
ASCS-sales@aeroflex.com
ISO 9001:2008 certified
www.aeroflex.com/Microwave www.aeroflex.com/ASCS
Aeroflex Signal & Control Solutions reserves the right to make changes to any products
and services herein at any time without notice. Consult Aeroflex or an authorized sales
representative to verify that the information in this data sheet is current before using
this product. Aeroflex does not assume any responsibility or liability arising out of the
application or use of any product or service described herein, except as expressly
agreed to in writing by Aeroflex; nor does the purchase, lease, or use of a product or
service from Aeroflex convey a license under any patent rights, copyrights, trademark
rights, or any other of the intellectual rights of Aeroflex or of third parties.
Copyright 2014 Aeroflex Signal & Control Solutions. All rights reserved.
Revision Date: 2/25/2014
