CT2565-001-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> CT2565-001-2

CT2565-001-2: DescriptionMil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, MQIP78, 2.100 X 1.870 INCH, 0.250 INCH HEIGHT, HERMETIC SEALED, METAL, PLUG IN-78; CategoryThe embedded processor and controller Microcontrollers and processors; File Size356KB，31 Pages; ManufacturerCobham Semiconductor Solutions

Download Datasheet Parametric View All

CT2565-001-2 Overview

Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, MQIP78, 2.100 X 1.870 INCH, 0.250 INCH HEIGHT, HERMETIC SEALED, METAL, PLUG IN-78

CT2565-001-2 Parametric

Parameter Name	Attribute value
Parts packaging code	QIP
package instruction	QIP,
Contacts	78
Reach Compliance Code	unknown
Is Samacsys	N
boundary scan	NO
maximum clock frequency	12 MHz
letter of agreement	MIL-STD-1553B
Data encoding/decoding methods	BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate	0.125 MBps
External data bus width	16
JESD-30 code	R-MQIP-P78
length	53.34 mm
low power mode	NO
Number of serial I/Os	2
Number of terminals	78
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
encapsulated code	QIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	6.35 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	QUAD
width	41.91 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
Base Number Matches	1

Preview

Download Datasheet

View All

CT2565

Bus Controller, Remote Terminal and BUS Monitor

FOR MIL-STD-1553B

Features

Second Source Compatible to the BUS-65600

RTU implements all dual redundant mode codes

Selective mode code illegalization available

16 bit microprocessor compatibility

BC checks status word for correct address and set flags

RTU illegal mode codes externally selectable

16 bit µProcessor compatibility

DMA handshaking for subsystem message transfers

MIL-PRF-38534 compliant circuits available

DESC SMD #5962–88585 Pending

Packaging – Hermetic Metal

• 78 Pin, 2.1" x 1.87" x .25" Plug-In type package

• 82 Lead, 2.2" x 1.61" x .18" Flat package

CIRCUIT TECHNOLOGY

www.aeroflex.com

A E

ISO

9001

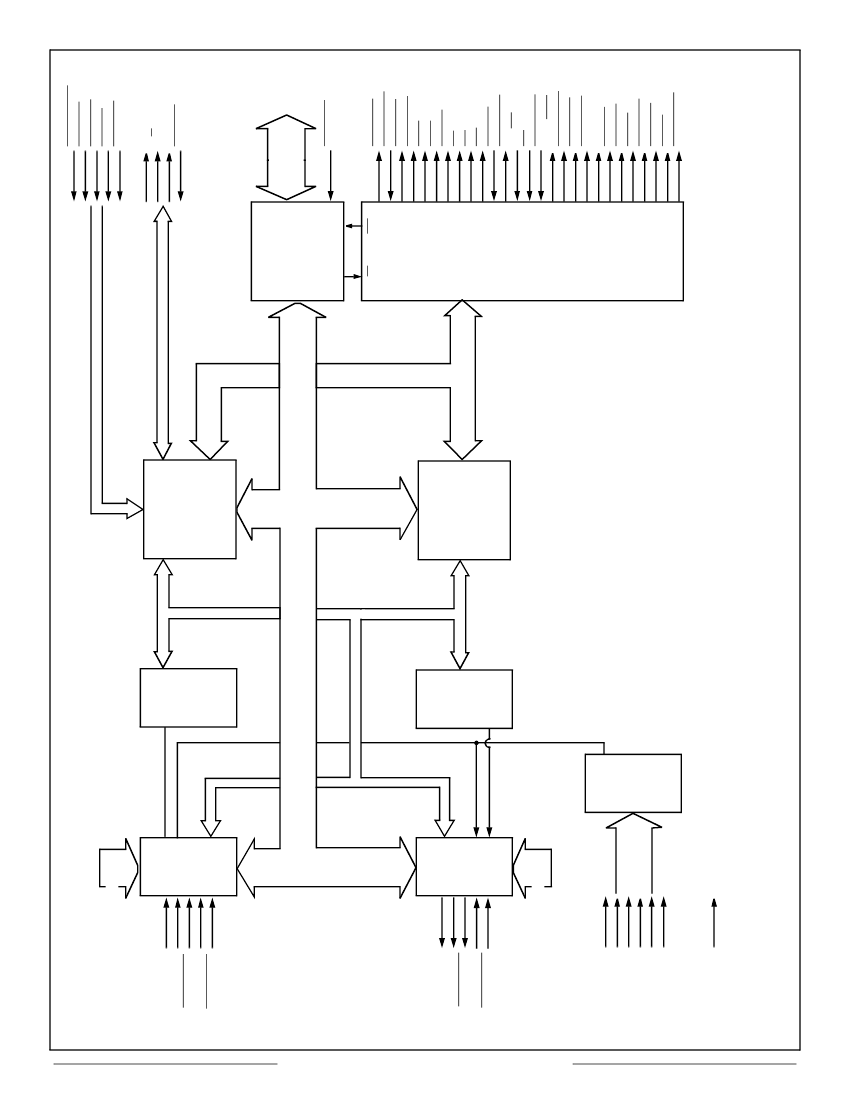

General Description

The CT2565 is a dual redundant MIL-STD-1553 Bus Controller (BC), Remote Terminal (RT), and

Bus Monitor, (BM) Bus packaged in a 1.9" x 2.1" hermetic hybrid. It provides all the functions

required to interface a MIL-STD-1553 dual redundant serial data bus transceiver, (Aeroflex's

ACT4487 for example) and a subsystem parallel three-state data bus. Utilizing a custom monolithic

IC, the CT2565 provides selectable operation as a Bus Controller, Remote Terminal or a Bus

Monitor (BM).

The CT2565 is compatible with most µprocessors. It provides a 16 bit three-state parallel data bus

and uses direct memory access (DMA type) handshaking for subsystem transfers. All message

transfer timing as well as DMA and control lines are provided internally. Subsystem overhead

associated with message transfers is therefore minimized. Interface control lines are common for

both BC and RT operation.

The CT2565 features the capability for implementing all dual redundant MIL-STD-1553 mode

codes. In addition, any mode code may (optional) be illegalized through the use of an external

(200ns access time) PROM. Complete error detection capability is provided, for both BC and RTU

operation. Error detection includes: response time-out, inter message gaps, sync, parity,

Manchester, word count and bit count. The CT2565 complies with all the requirements of

MIL-STD-1553.

The hybrid is screened in accordance with the requirements of MIL-STD-883 and operates over the

full military temperature range of -55°C to +125°C.

eroflex Circuit T

echnology
