19C Series 0 to 3psi to 0 to 500psi
Low Cost, Stainless Steel Isolated Pressure Sensors
General Description
The stainless steel 19C Series devices were developed for pressure applications that involve
measurement of hostile media in harsh environments. These sensors will accommodate any media
that will not adversely attack 316 stainless steel.
These 19mm sensors are available for use with either a constant voltage or current source. They
feature a variety of pressure connections to allow use in a wide range of OEM equipment.
The 19C Series devices are rugged and reliable transducers for use in a wide variety of pressure
sensing applications where corrosive liquids or gases are monitored. Contact your local Invensys
representative or the Invensys factory for additional details.
Sensor Systems
Features
Reliable Semiconductor Technology
•
Calibrated and Temperature Compensated
•
Isolated
•
Rugged--Stainless Steel Package
•
Small Size
•
Absolute & Gage Pressures
•
Reliable Semiconductor Technology
Equivalent Circuit
Applications
•
Industrial Controls
Ordering Information - Part # Description
19
C
XXXP
A ,G
1 ,2 … 9
K /L
K = 1 0 V d c E x c ita tio n
L = 1 .5 m A E x c ita tio n
P re s s u re C o n n e c tio n s
1 = C e ll w / B o d y O -R in g
2 = F lu s h M o u n t
3 = F lu s h M o u n t w / F la n g e
4 = 1 /8 -2 7 N P T
5 = 1 /4 -1 8 N P T
6 = 7 /1 6 U N F
7 = 1 /4 B S P P
8 = E u ro O -R in g
9 = 1 /4 V C R (F e m a le N u t)
19m m
c e ll
C = C o m p e n s a te d
P re s s u re R a n g e
in (P ) P S I
A = A b s o lu te P re s s u re
G = G a u g e P re s s u re
For example: Part
#19C100PA4K
= 19 mm Cell, Compensated, 100 psi, Absolute, 1/8NPT Port, with 10 Vdc excitation.
04/06/01
Rev 02
19C Series 0 to 3psi to 0 to 500psi
Pressure Sensor Characteristics (all devices)
Environmental Specifications
Compensated: 0°C to +82°C
Operating:
-40°C to +125°C
Storage:
-40°C to +125°C
SenSym/ICT
Vibration: 10G at 20-2000 Hz
Shock:
100G for 11 msec
Life:
1 Million cycles minimum
Insulation Resistance 100MΩ at 50 Vdc
Maximum Ratings (all devices)
Voltage Version “K”: Supply Voltage V
S
= +15 Vdc
Current Version “L”: Supply Current I
S
= +2.0 mA
Pressure Range Specifications
SenSym/ICT
PART # *
19C 003P G (1…9) (K/L)
19C 005P G (1...9) (K/L)
19C 010P G (1...9) (K/L)
19C 015P (A/G) (1...9) (K/L)
19C 030P (A/G) (1...9) (K/L)
19C 050P (A/G) (1...9) (K/L)
19C 100P (A/G) (1...9) (K/L)
19C 200P (A/G) (1...9) (K/L)
19C 300P (A/G) (1...9) (K/L)
19C 500P (A/G) (1...9) (K/L)
PRESSURE
RANGE
0-3 psig
0-5 psig
0-10 psig
0-15 psi
0-30 psi
0-50 psi
0-100 psi
0-200 psi
0-300 psi
0-500 psi
PROOF
PRESSURE (7)
9 psig
15 psig
30 psig
45 psi
90 psi
150 psi
300 psi
600 psi
900 psi
1200 psi
BURST
PRESSURE (8)
15 psig
25 psig
30 psig
75 psi
150 psi
250 psi
500 psi
1000 psi
1500 psi
2400 psi
*
Note: Parts are available in Absolute and Gauge pressure (A=Absolute, G=Gauge) and in a variety of ports (1 thru 9).
04/06/01
Rev 02
19C Series 0 to 3psi to 0 to 500psi
Performance Characteristics
(1)
Characteristic
Zero pressure offset
(2)
Full scale span
(2)
Full scale span (3 and 5 psi “K” units only)
(3)
Nonlinearity
(3)
Pressure hysteresis
Repeatability
(4)
Temp. effect on span
(4)
Temp. effect on offset
(4)
Temp. effect on span (0-3 and 0-5 psi only)
(4)
Temp. effect on offset (0-3 and 0-5 psi only)
Thermal hysteresis (0 to 82°C)
(5)
Long term stability of offset & Span
(6)
Response time (10% to 90%)
(9)
Common Mode Voltage (Voltage Version “K”)
Input impedance (Current Version “L”)
Input impedance (Voltage Version “K”)
Output impedance
Specification Notes:
Min
-2
98
48
--
--
--
--
--
--
--
--
--
--
.50
2.0
8.0
3.0
Typical
0
100
50
±0.1
±0.015
±0.010
±0.5
±0.5
--
--
±0.1
±0.1
0.1
1.25
4.5
25
4.5
Max
+2
102
52
±0.25
±0.030
±0.030
±1.0
±1.0
±2.0
±2.0
±0.3
±0.3
--
2.0
8.0
50
6.0
SenSym/ICT
Units
mV
mV
mV
%FSS
%FSS
%FSS
%FSS
%FSS
%FSS
%FSS
%FSS
%FSS
ms
Vdc
kΩ
kΩ
kΩ
Note 1:
Reference Conditions (unless otherwise noted): Supply, V
S
=10 Vdc±0.01Vdc or I
S
=1.5 mA±0.0015mA; Ta=25°C.
Note 2:
Span is the algebraic difference between the output voltage at full scale pressure and the output at zero pressure.
Full Scale Span (FSS) is ratiometric to the supply voltage.
Note 3:
Linearity is based on best-fit straight line from the zero to the full scale pressure. Hysteresis is the maximum
output difference at any point within the operating pressure range for increasing and decreasing pressure.
Note 4:
Maximum error band of the offset voltage or span over the compensated temperature range, relative to the 25°C
reading.
Note 5:
Long term stability over a six month period.
Note 6:
Response time for a step change from the zero pressure to the full scale pressure.
Note 7:
The maximum pressure that can be applied without changing the transducer’s performance or accuracy.
Note 8:
The maximum pressure that can be applied to a transducer without rupture of either the sensing element or
transducer case.
Note 9:
Common Mode Voltage as measured from output to ground.
04/06/01
Rev 02
19C Series 0 to 3psi to 0 to 500psi
Physical Dimensions

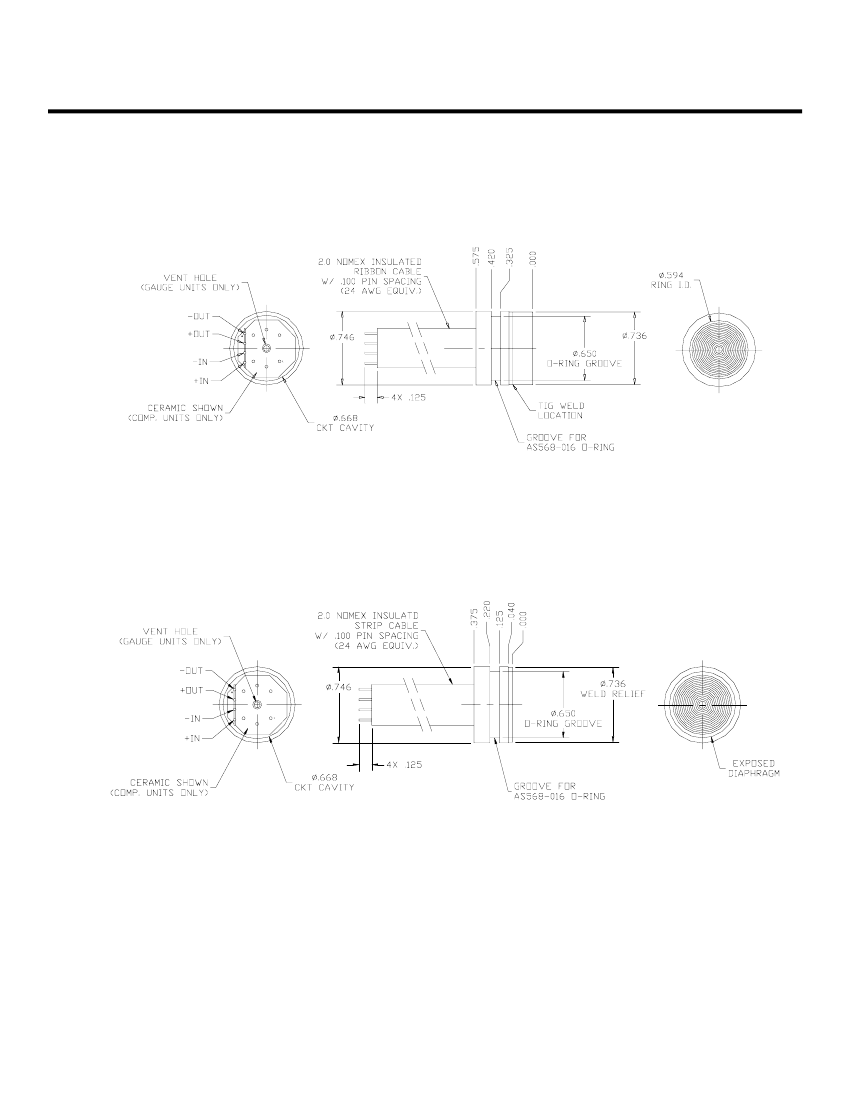

Cell Package “1” (See Note 1)
SenSym/ICT
File: SS60150
Flush Mount Package “2”
File: SS60151
04/06/01
Rev 02
19C Series 0 to 3psi to 0 to 500psi
Physical Dimensions

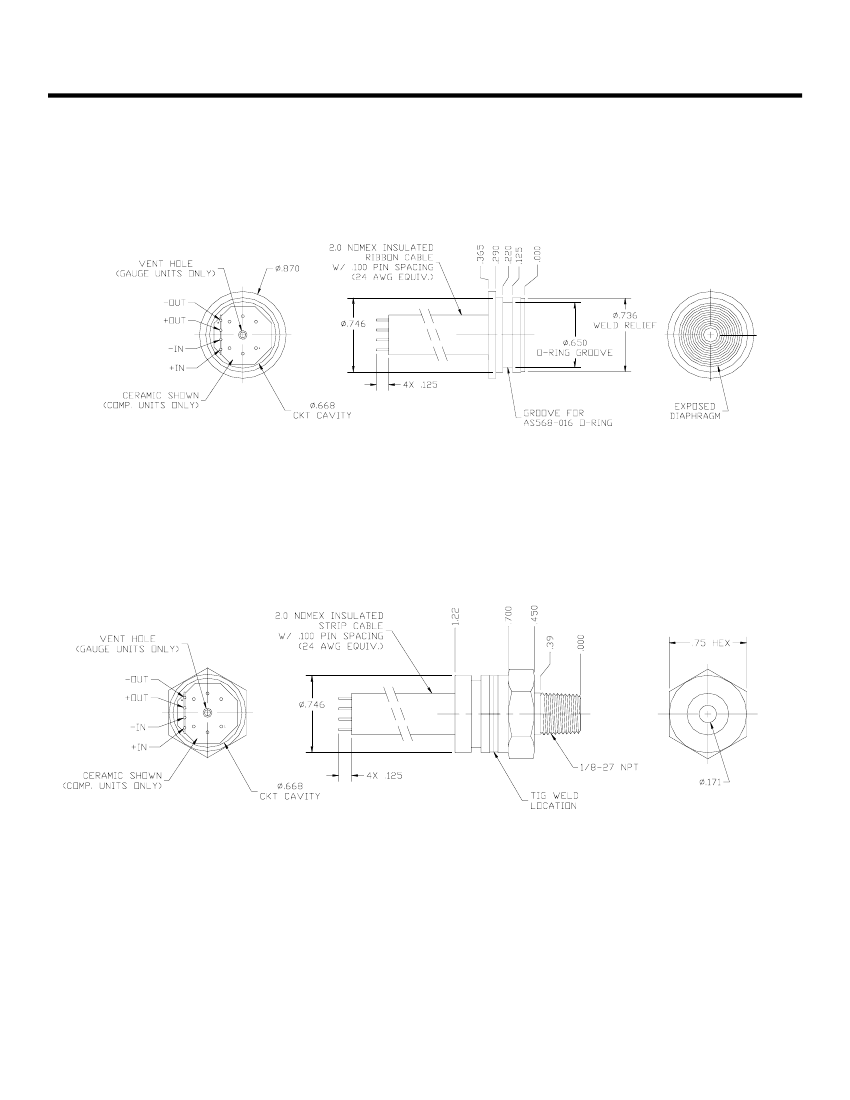

Flush Mount with Flange Package “3”
SenSym/ICT
File: SS60152
Male 1/8-27 NPT Package “4”
File: SS60153
04/06/01
Rev 02
