PZ3064D12BC datasheet, PDF - EEWORLD Datasheet

PZ3064D12BC: DescriptionEE PLD, 14.5ns, PQFP44, 10 X 10 X 1 MM, PLASTIC, SOT-376-1, TQFP-44; CategoryProgrammable logic devices Programmable logic; File Size527KB，14 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric View All

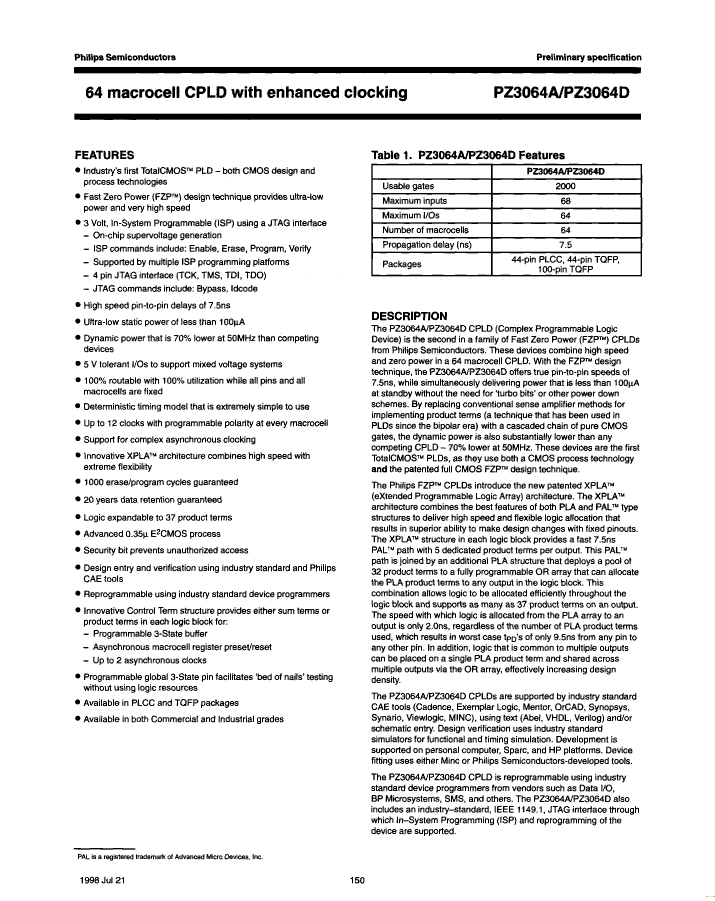

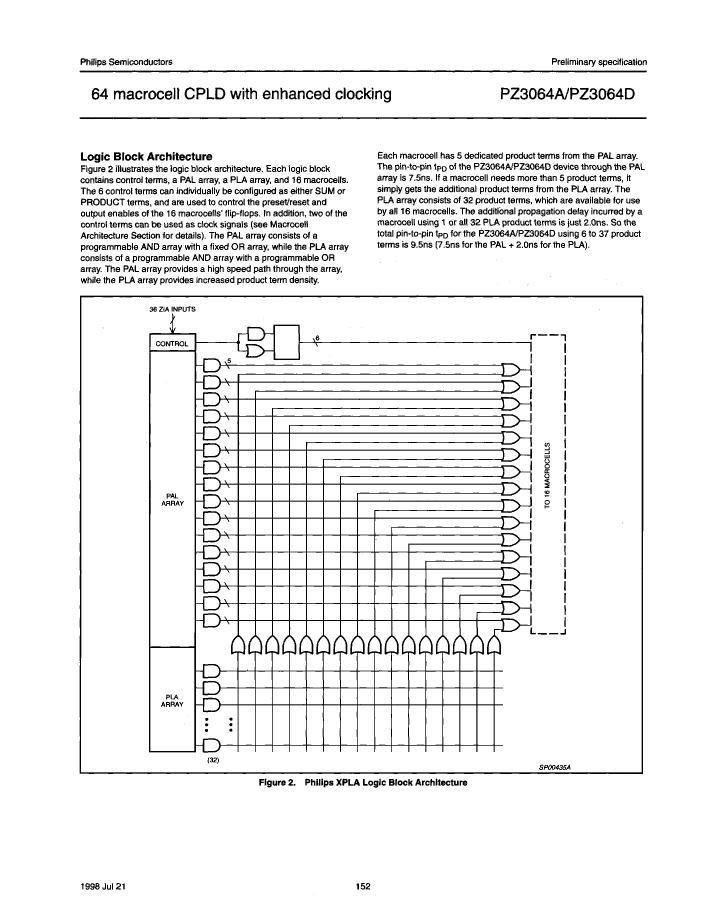

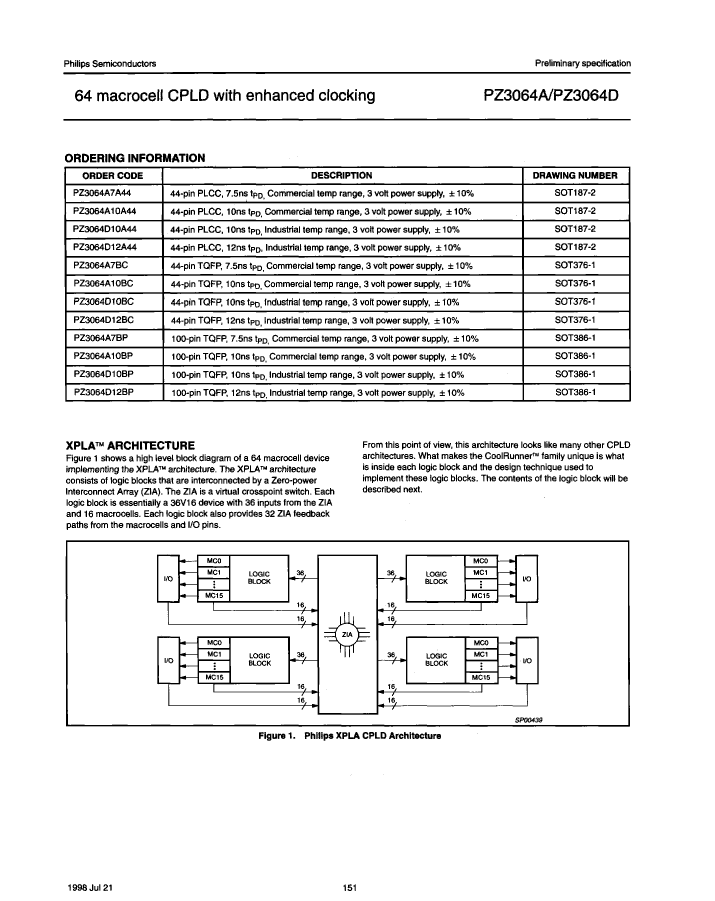

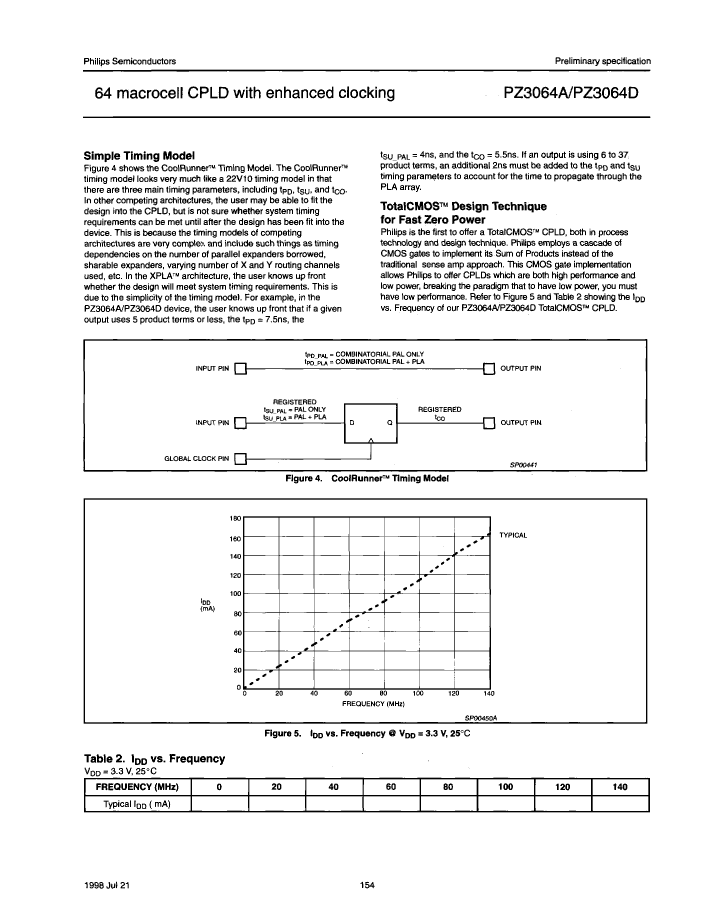

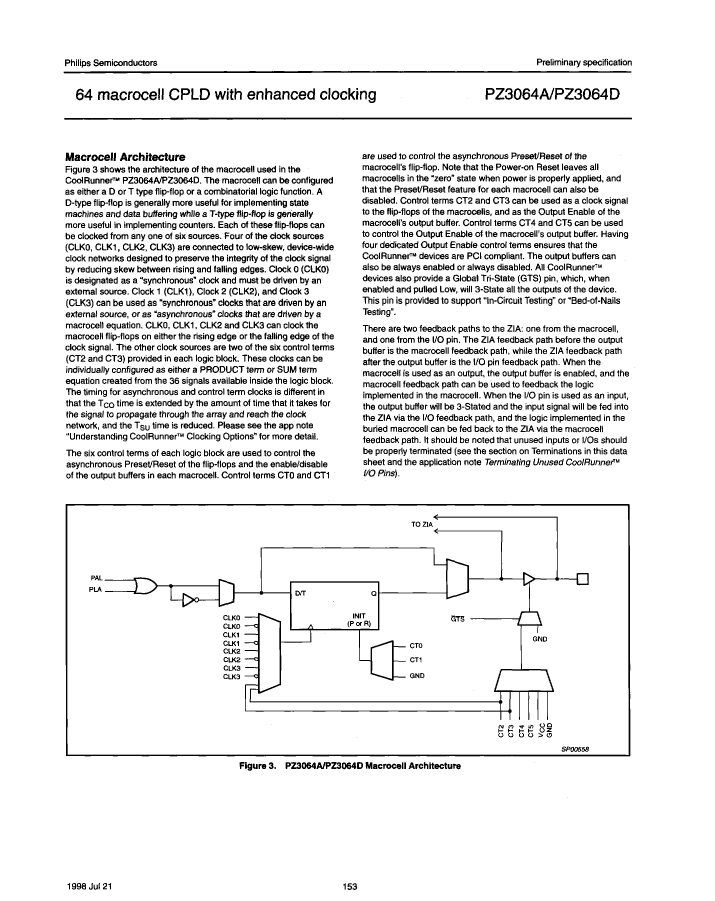

PZ3064D12BC Overview

EE PLD, 14.5ns, PQFP44, 10 X 10 X 1 MM, PLASTIC, SOT-376-1, TQFP-44

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	QFP
package instruction	TQFP,
Contacts	44
Reach Compliance Code	unknown
Other features	32 MACROCELLS
maximum clock frequency	67 MHz
JESD-30 code	S-PQFP-G44
length	10 mm
Dedicated input times	2
Number of I/O lines	32
Number of terminals	44
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	2 DEDICATED INPUTS, 32 I/O
Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	TQFP
Package shape	SQUARE
Package form	FLATPACK, THIN PROFILE
Programmable logic type	EE PLD
propagation delay	14.5 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	10 mm
