M28F256AC datasheet, PDF - EEWORLD Datasheet

M28F256AC: Description32KX8 FLASH 12V PROM, 120ns, PQCC32, PLASTIC, LCC-32; Categorystorage storage; File Size85KB，2 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

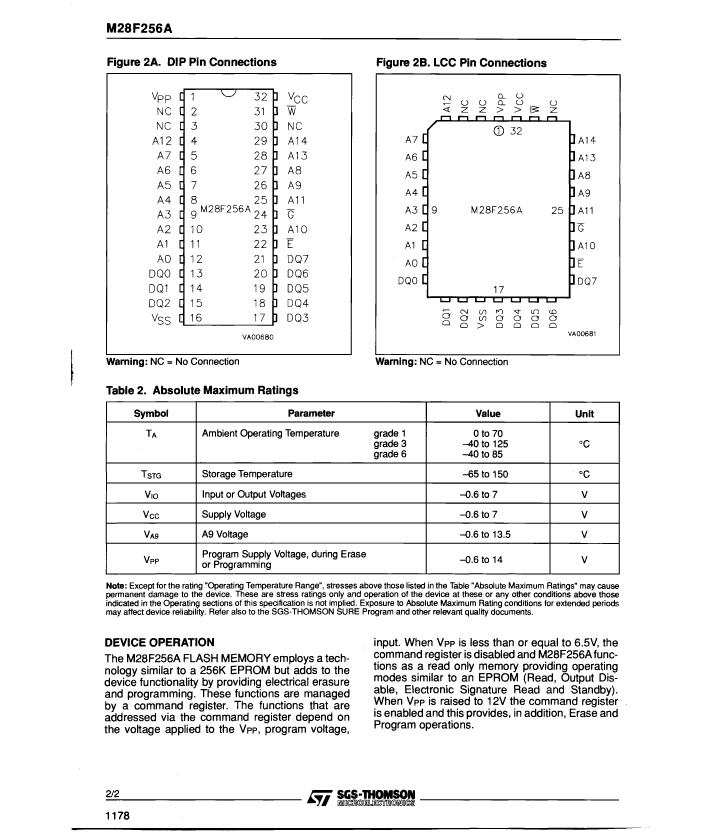

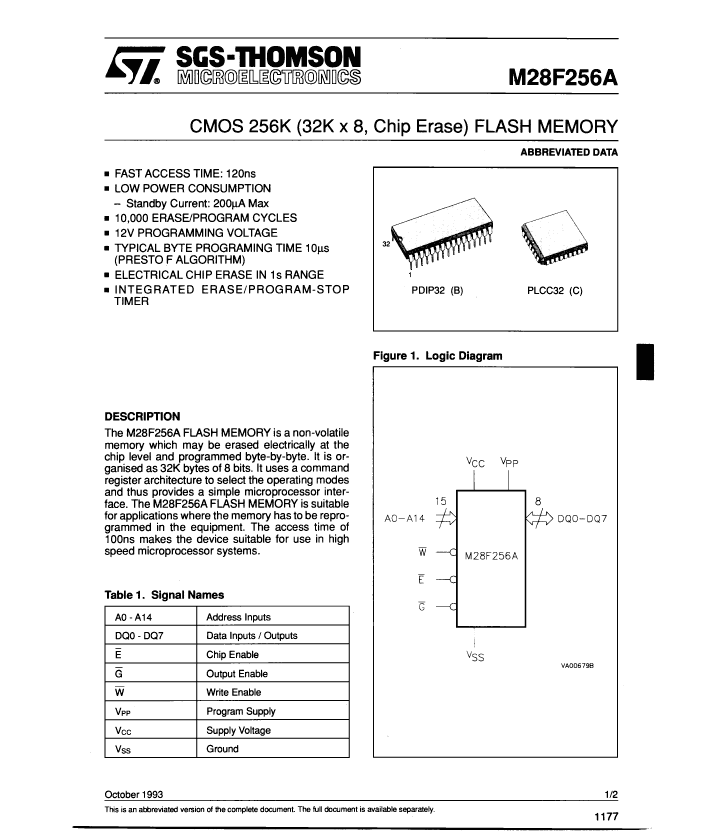

M28F256AC Overview

32KX8 FLASH 12V PROM, 120ns, PQCC32, PLASTIC, LCC-32

Parameter Name	Attribute value
Maker	STMicroelectronics
Parts packaging code	QFJ
package instruction	PLASTIC, LCC-32
Contacts	32
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	120 ns
JESD-30 code	R-PQCC-J32
length	13.995 mm
memory density	262144 bit
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of terminals	32
word count	32768 words
character code	32000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	32KX8
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Programming voltage	12 V
Certification status	Not Qualified
Maximum seat height	3.56 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
type	NOR TYPE
width	11.455 mm

	M28F256AC	M28F256AB
Description	32KX8 FLASH 12V PROM, 120ns, PQCC32, PLASTIC, LCC-32	32KX8 FLASH 12V PROM, 120ns, PDIP32, PLASTIC, DIP-32
Maker	STMicroelectronics	STMicroelectronics
Parts packaging code	QFJ	DIP
package instruction	PLASTIC, LCC-32	PLASTIC, DIP-32
Contacts	32	32
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Maximum access time	120 ns	120 ns
JESD-30 code	R-PQCC-J32	R-PDIP-T32
length	13.995 mm	41.91 mm
memory density	262144 bit	262144 bit
Memory IC Type	FLASH	FLASH
memory width	8	8
Number of functions	1	1
Number of terminals	32	32
word count	32768 words	32768 words
character code	32000	32000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	32KX8	32KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL
Programming voltage	12 V	12 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	3.56 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL
type	NOR TYPE	NOR TYPE
width	11.455 mm	15.24 mm
