B39440-X6965-N201

Description
SAW Filter, 1 Function(s), 44MHz, DUROPLAST PACKAGE, SIP5D, 5 PIN
CategoryAnalog mixed-signal IC    filter
File Size59KB,6 Pages
ManufacturerEPCOS (TDK)
Download Datasheet Parametric View All

B39440-X6965-N201 Overview

SAW Filter, 1 Function(s), 44MHz, DUROPLAST PACKAGE, SIP5D, 5 PIN

B39440-X6965-N201 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Is SamacsysN
Maximum attenuation frequency (+/- delta f)3310 kHz
Attenuation frequency (+/-Δf) - minimum value3060 kHz
Attenuation at maximum frequency8.3 dB
Center frequency or cutoff frequency (fo/fc)44 MHz
filter typeSAW FILTER
high4.8 mm
input resistance1300 OHM//16.1 pF
Maximum insertion loss16.2 dB
JESD-609 codee3
length13.7 mm
Manufacturer's serial numberX6965D
Installation typeTHROUGH HOLE MOUNT
Number of functions1
Maximum operating temperature65 °C
Minimum operating temperature-25 °C
Output impedance1100 OHM//5.6 pF Ω
physical sizeL13.7XB2.4XH4.8 (mm)/L0.539XB0.094XH0.189 (inch)
Terminal surfaceTIN
Base Number Matches1

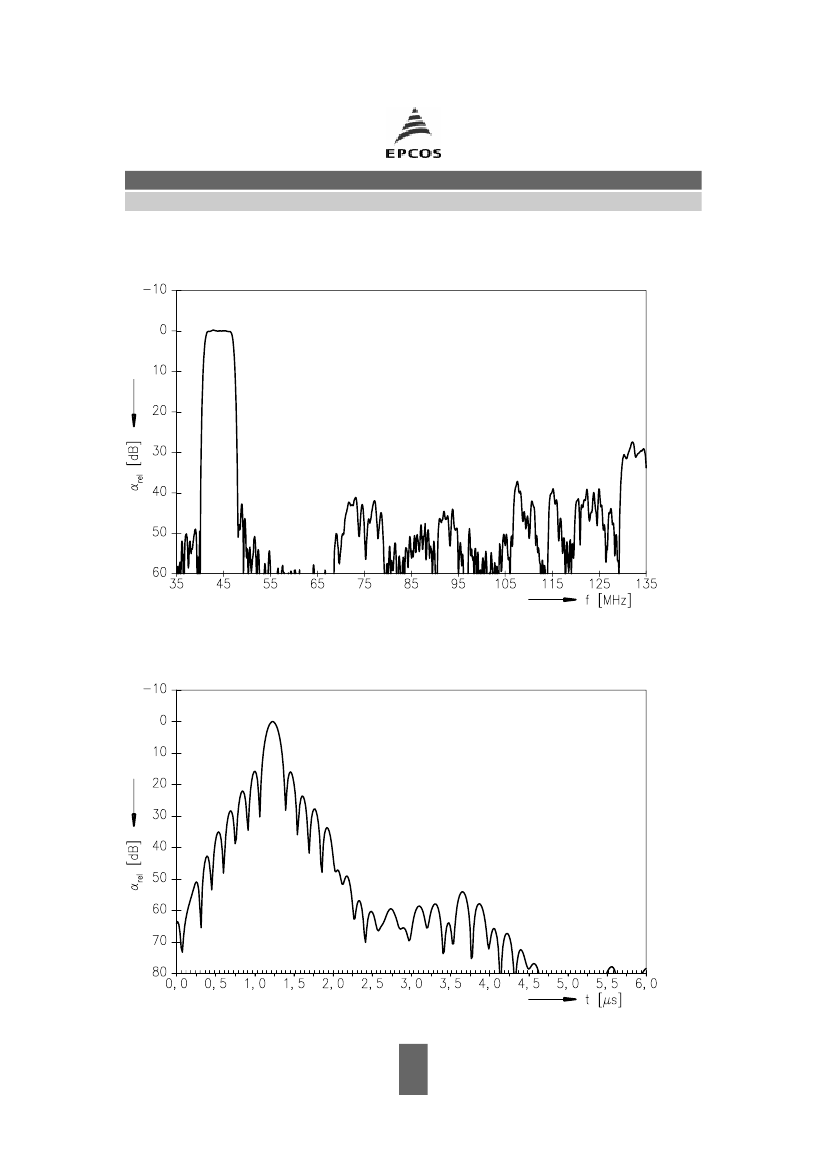

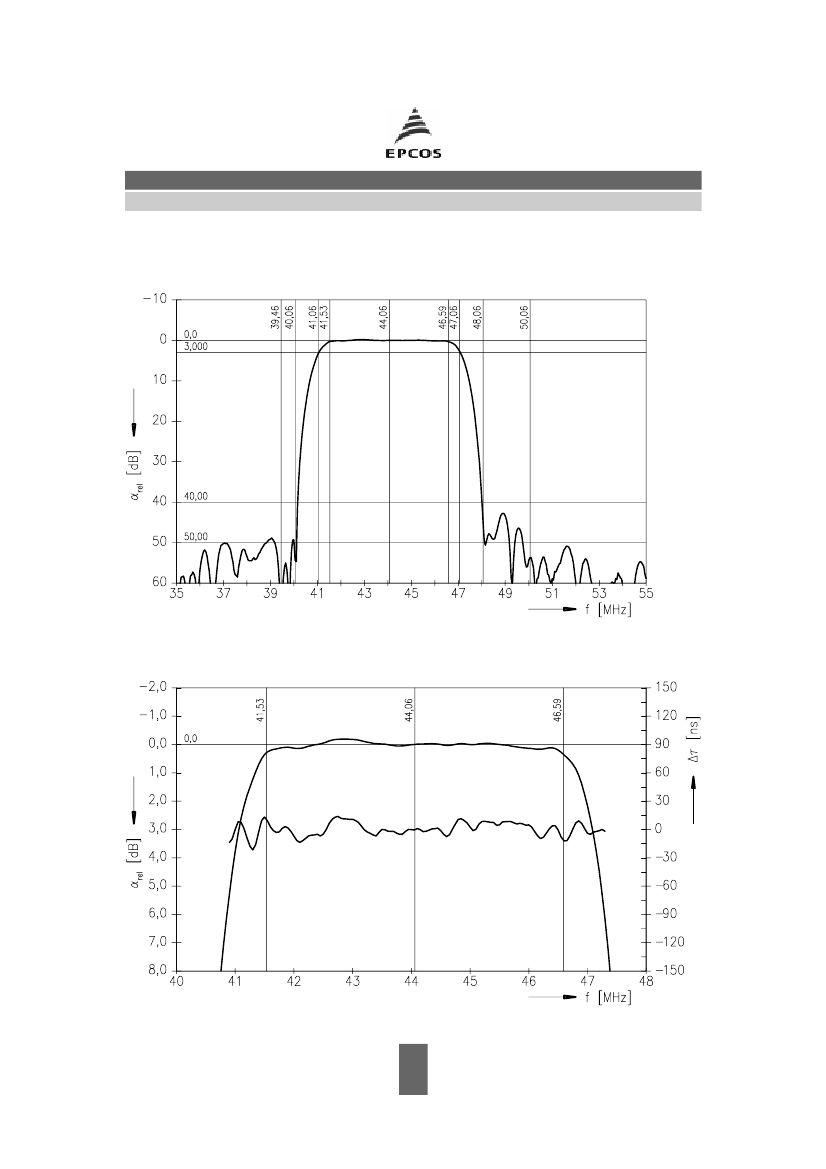

SAW multimedia filters
Series/Type:
X6965D
The following products presented in this data sheet are being withdrawn.
Ordering Code
B39440X6965D100
B39440X6965N201
Substitute Product
X6965N
Date of Withdrawal
2004-07-23
2011-01-14
Deadline Last
Orders
2004-09-30
2011-09-30
Last Shipments
2012-09-30
For further information please contact your nearest EPCOS sales office, which will also support you in selecting a
suitable substitute. The addresses of our worldwide sales network are presented at www.epcos.com/sales.
