HM2R02PA5105E9LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> HM2R02PA5105E9LF

HM2R02PA5105E9LF: DescriptionBoard Connector, 125 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size196KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2R02PA5105E9LF Overview

Board Connector, 125 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle, LEAD FREE

HM2R02PA5105E9LF Parametric

Parameter Name	Attribute value
package instruction	LEAD FREE
Reach Compliance Code	compliant
Other features	19 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	MATTE TIN
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	125
Base Number Matches	1

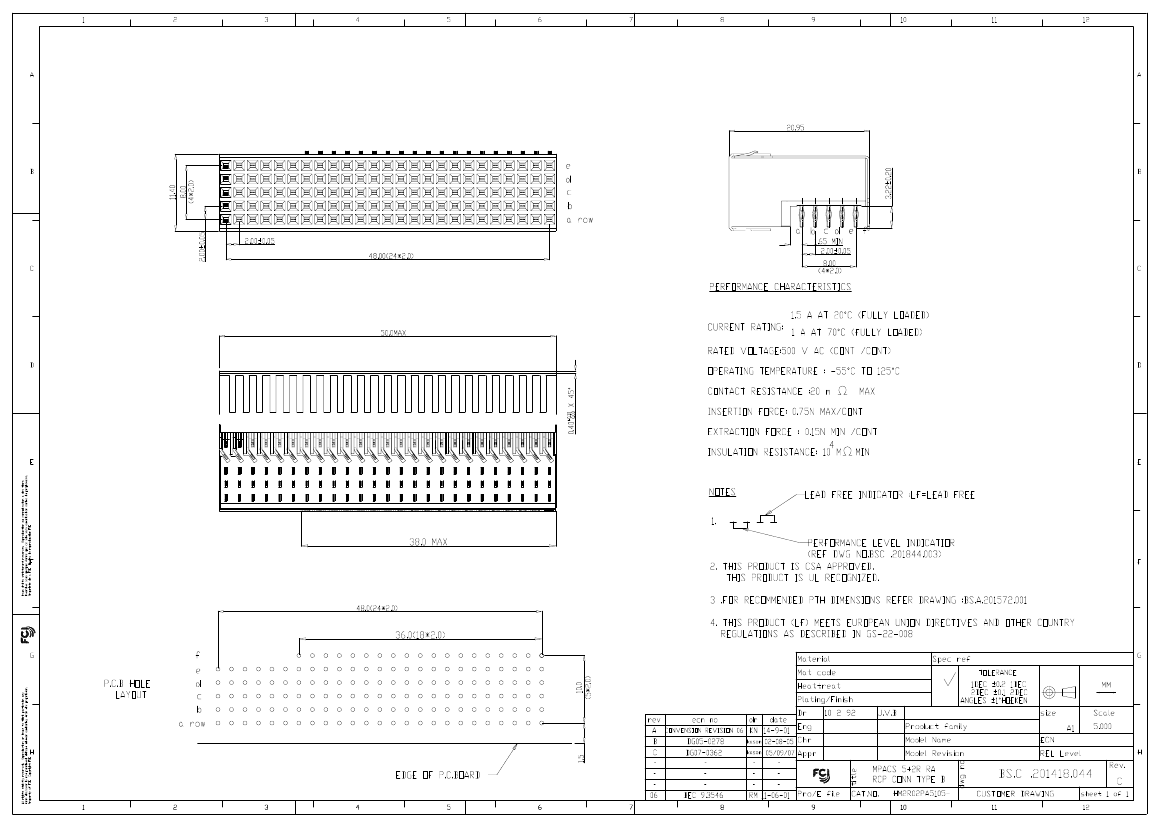

Preview

Download Datasheet

View All

PDM: Rev:C

STATUS:

Released

Printed: Apr 19, 2008

HM2R02PA5105E9LF Related Products

	HM2R02PA5105E9LF	HM2R02PA5105E9	HM2R02PA5105N9LF	HM2R02PA5105N9	HM2R02PA5105Z1LF	HM2R02PA5105Z1
Description	Board Connector, 125 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle, LEAD FREE	Board Connector, 125 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle	Board Connector, 125 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle, LEAD FREE	Board Connector, 125 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle	Board Connector, 125 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle, LEAD FREE	Board Connector, 125 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	19 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	19 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	19 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	19 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	19 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	19 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	MATTE TIN	TIN LEAD	MATTE TIN	TIN LEAD	MATTE TIN	TIN LEAD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e0	e3	e0	e3	e0
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	HM2	HM2	HM2	HM2	HM2	HM2
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	125	125	125	125	125	125
Base Number Matches	1	1	1	1	1	1
