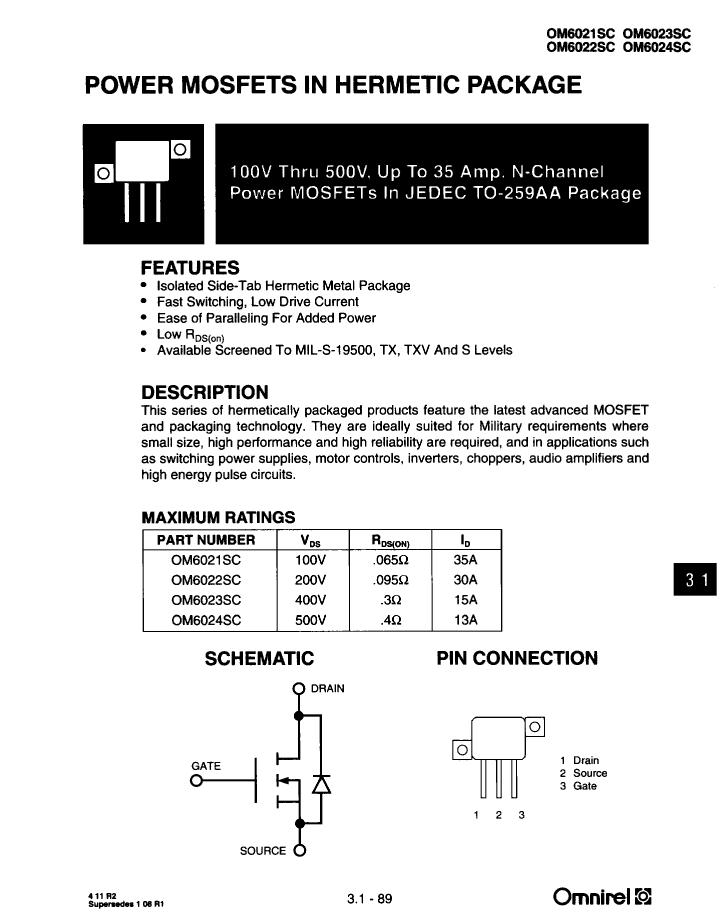

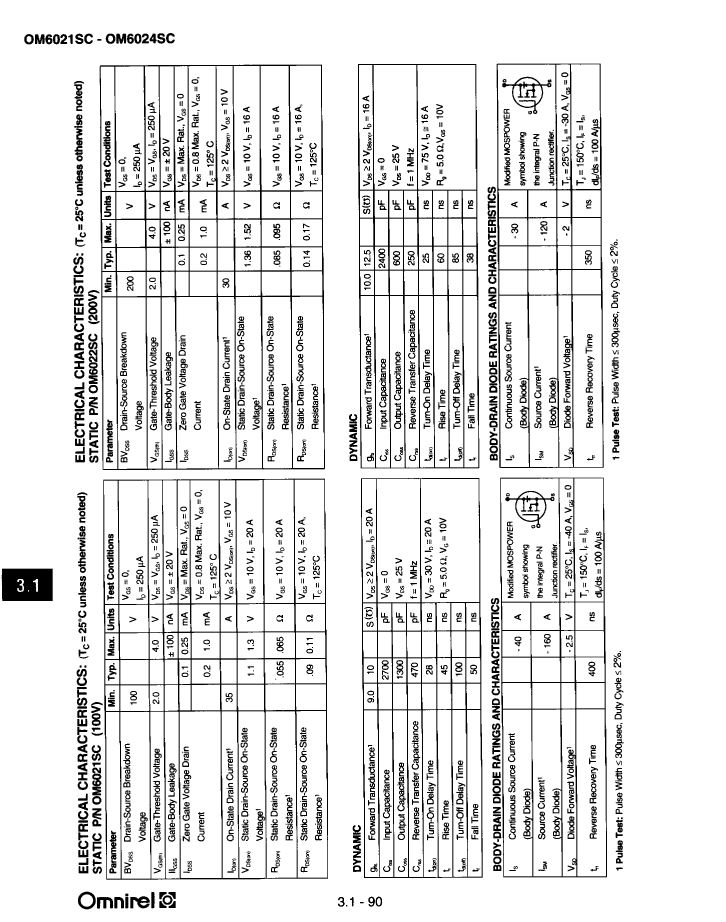

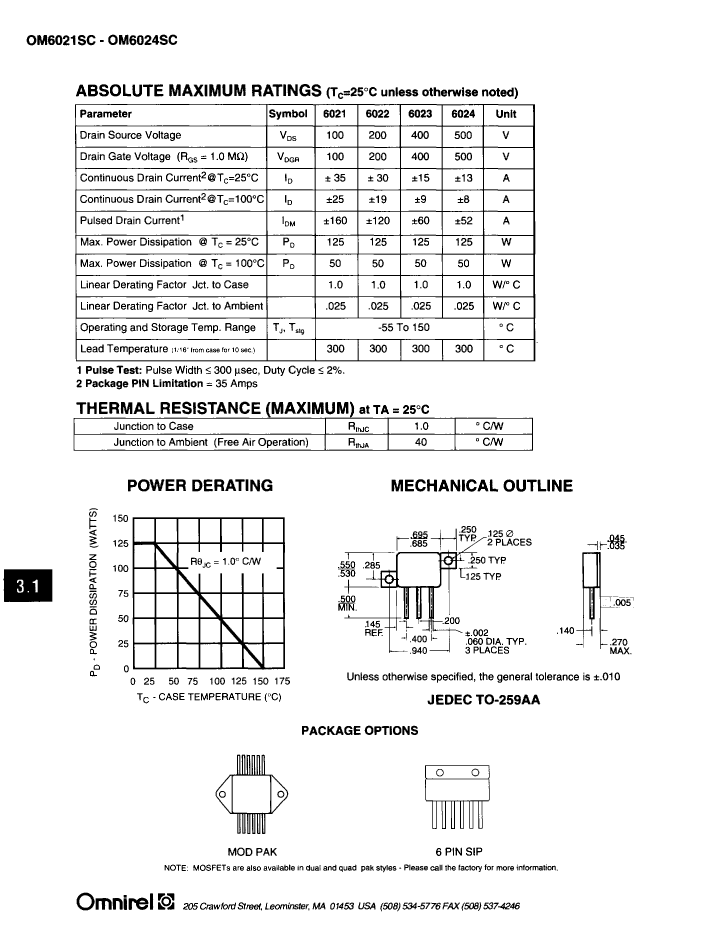

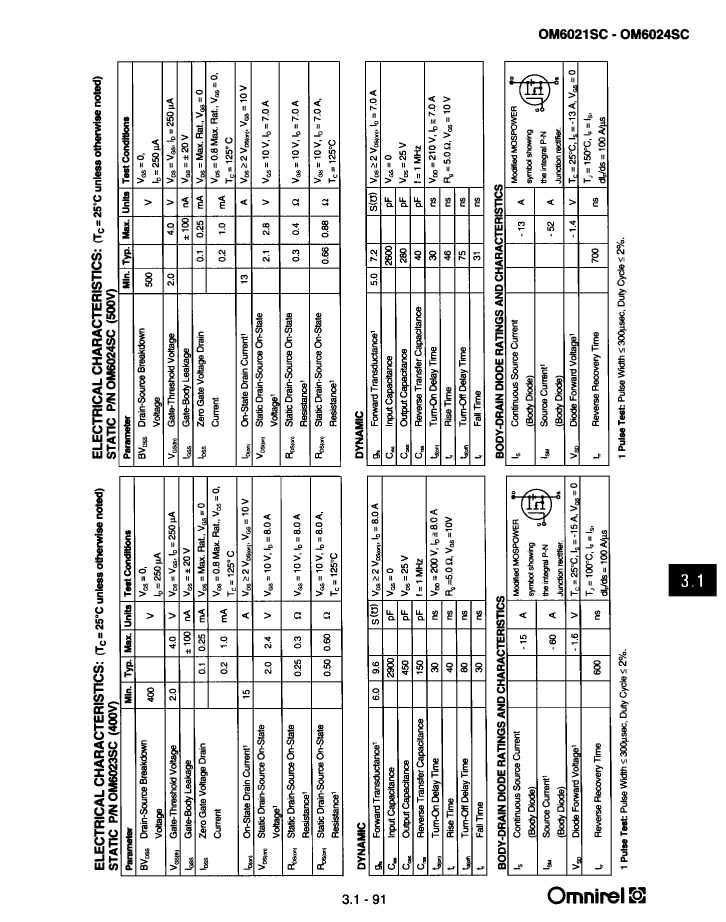

OM6022SCT: DescriptionPower Field-Effect Transistor, 30A I(D), 200V, 0.095ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-259AA,; CategoryDiscrete semiconductor The transistor; File Size164KB，4 Pages; ManufacturerOmnirel Corp.

Download Datasheet Parametric Compare View All

OM6022SCT Overview

Power Field-Effect Transistor, 30A I(D), 200V, 0.095ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-259AA,

OM6022SCT Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	HIGH RELIABILITY
Shell connection	ISOLATED
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	200 V
Maximum drain current (ID)	30 A
Maximum drain-source on-resistance	0.095 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-259AA
JESD-30 code	R-MSFM-P3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Package body material	METAL
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Maximum pulsed drain current (IDM)	120 A
Certification status	Not Qualified
surface mount	NO
Terminal form	PIN/PEG
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1
