PC714VxNSZXF Series
PC714VxNSZXF
Series
DIP 6 pin General Purpose
Photocoupler
■
Description
PC714VxNSZXF Series
contains an IRED optically
coupled to a phototransistor.
It is packaged in a 6 pin DIP.
Input-output isolation voltage(rms) is 5.0kV.
Collector-emitter voltage is 80V and CTR is 50% to
600% at input current of 5mA.
■
Agency approvals/Compliance
1. Recognized by UL1577 (Double protection isolation),
file No. E64380 (as model No.
PC714V)
2. Approved by VDE, DIN EN60747-5-2
(∗)
(as an
option), file No. 40008189 (as model No.
PC714V)
3. Package resin : UL flammability grade (94V-0)
(∗)
DIN EN60747-5-2 : successor standard of DIN VDE0884
■
Features
1. 6 pin DIP package
2. Double transfer mold package (Ideal for Flow
Soldering)
3. High collector-emitter voltage (V
CEO
:80V)
4. High isolation voltage between input and output
(V
iso(rms)
: 5.0kV)
5. Lead-free and RoHS directive compliant
■
Applications
1. Home appliances
2. Programmable controllers
3. Personal computer peripherals
Notice The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
1
Sheet No.: D2-A04102EN
Date Jun. 30. 2005
© SHARP Corporation

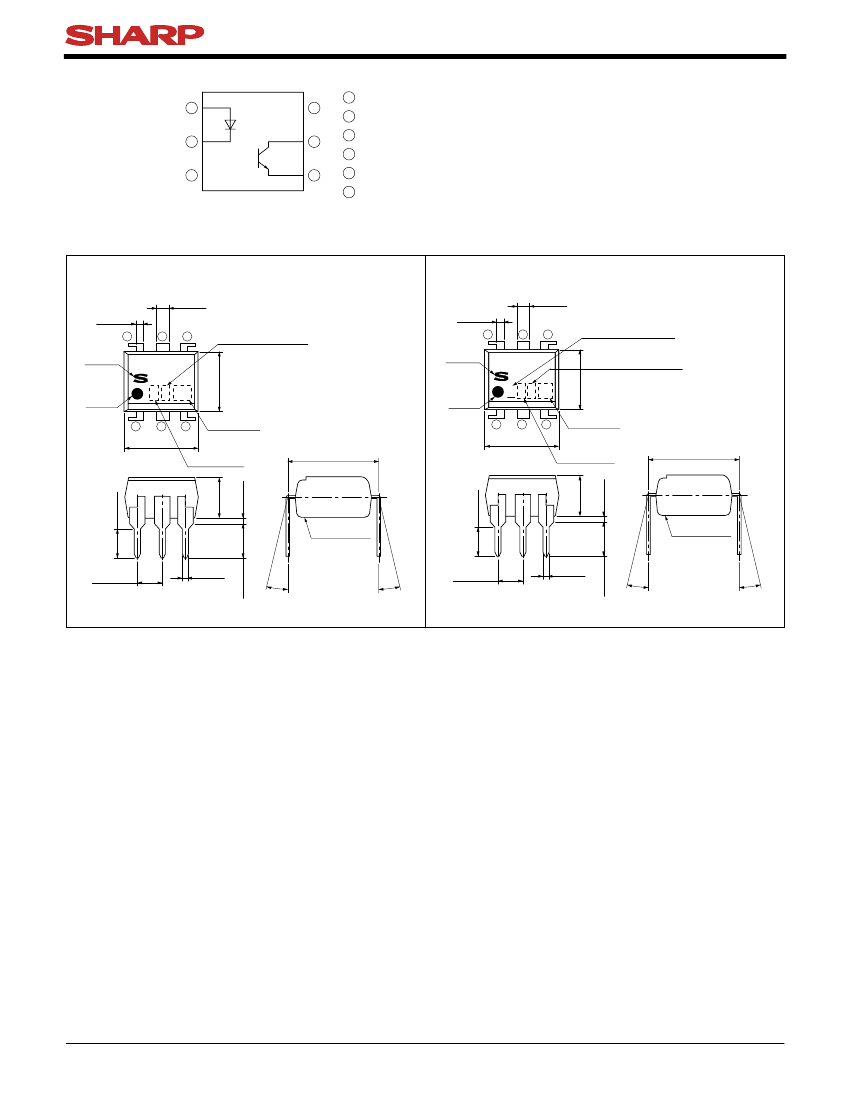

PC714VxNSZXF Series
■
Internal Connection Diagram
1
1
2
3
6
5
4
2
3
4
5
6
Anode
Cathode
NC
Emitter
Collector
NC
■
Outline Dimensions
1. Through-Hole [ex.
PC714VxNSZXF]
1.2
±0.3
0.6
±0.2
SHARP
mark
"S"
Anode
mark
1
2
±0.5
3
6
5
4
(Unit : mm)
2. Through-Hole (VDE option) [ex.
PC714VxYSZXF]
1.2
±0.3
0.6
±0.2
VDE
Identification mark
Factory
identification mark
6.5
±0.5
2
3
±0.3
Factory
identification mark
6.5
±0.5
PC714V
SHARP
mark
"S"
Anode
mark
6
5
4
PC714V
4
1
Date code
Rank mark
0.5
TYP.
3.5
±0.5
7.62
±0.3
Date code
Rank mark
0.5
TYP.
3.5
±0.5
7.62
±0.3
7.12
7.12
2.9
±0.5
2.9
±0.5
Epoxy resin
3.25
±0.5
0.5
±0.1
0.5
±0.1
3.25
±0.5
Epoxy resin
2.54
±0.25
θ
θ
: 0 to 13˚
θ
2.54
±0.25
θ
θ
: 0 to 13˚
θ
Product mass : approx. 0.36g
Product mass : approx. 0.36g
Plating material : SnCu (Cu : TYP. 2%)
Sheet No.: D2-A04102EN
2
PC714VxNSZXF Series
Date code (2 digit)
1st digit
Year of production
A.D
Mark
2002
A
2003
B
2004
C
2005
D
2006
E
2007
F
2008
H
2009
J
2010
K
2011
L
2012
M
·
·
N
·
2nd digit
Month of production
Month
Mark
January
1
February
2
March
3
April
4
May
5
June
6
July
7
August
8
September
9
October
O
November
N
December
D
A.D.
1990
1991
1992
1993
1994
1995
1996
1997
1998
1999
2000
2001
Mark
P
R
S
T
U
V
W
X
A
B
C
·
·
·
repeats in a 20 year cycle
Factory identification mark
Factory identification Mark
no mark
Japan
Indonesia
China
* This factory marking is for identification purpose only.
Please Contact the local SHARP sales reprsentative to see the actual status of
the production.
Country of origin
Rank mark
Refer to the Model Line-up
Sheet No.: D2-A04102EN
3
PC714VxNSZXF Series
■
Absolute Maximum Ratings
Parameter
Symbol
Forward current
I
F
*1
Peak forward current
I
FM
Reverse voltage
V
R
Power dissipation
P
Collector-emitter voltage V
CEO
Emitter-collector voltage V
ECO
I
C
Collector current
Collector power dissipation
P
C
P
tot
Total power dissipation
T
opr
Operating temperature
T
stg
Storage temperature
*2
Isolation voltage
V
iso (rms)
*3
Soldering temperature
T
sol
(T
a
=25˚C)
Rating
Unit
50
mA
1
A
6
V
70
mW
80
V
6
V
50
mA
150
mW
170
mW
−25
to
+100
˚C
−40
to
+125
˚C
5
kV
260
˚C
*1 Pulse width≤100µs, Duty ratio : 0.001
*2 40 to 60%RH, AC for 1minute, f=60Hz
*3 For 10s
■
Electro-optical Characteristics
Parameter
Symbol
Forward voltage
V
F
V
FM
Peak forward voltage
I
R
Reverse current
C
t
Terminal capacitance
I
CEO
Collector dark current
Collector-emitter breakdown voltage BV
CEO
Emitter-collector breakdown voltage BV
ECO
Current transfer ratio
I
C
Collector-emitter saturation voltage V
CE (sat)
Isolation resistance
R
ISO
C
f
Floating capacitance
f
C
Cut-off frequency
t
r
Rise time
Response time
Fall time
t
f
Conditions
I
F
=20mA
I
FM
=0.5A
V
R
=4V
V=0, f=1kHz
V
CE
=50V,
I
F
=0
I
C
=0.1mA,
I
F
=0
I
E
=10µA,
I
F
=0
I
F
=5mA,
V
CE
=5V
I
F
=20mA,
I
C
=1mA
DC500V, 40 to 60%RH
V=0, f=1MHz
V
CE
=5V,
I
C
=2mA,
R
L
=100Ω
−3dB
Output
Input
Input
Output
Transfer
charac-
teristics
V
CE
=2V,
I
C
=2mA,
R
L
=100Ω
MIN.
−
−
−
−
−
80
6
2.5
−
5×10
10
−
−
−
−
TYP.
1.2
−
−
30
−
−
−
−
0.1
1×10
11
0.6
80
4
3
MAX.
1.4
3.0
10
250
100
−
−
30.0
0.2
−
1.0
−
18
18
(T
a
=25˚C)
Unit
V
V
µA
pF
nA
V
V
mA
V
Ω
pF
kHz
µs
µs
Sheet No.: D2-A04102EN
4
PC714VxNSZXF Series
■
Model Line-up
Through-Hole
Sleeve
Rank mark
Package
50pcs/sleeve
DIN EN60747-5-2
−−−−−−
Approved
PC714V0NSZXF PC714V0YSZXF
with or without
A
PC714V1NSZXF PC714V1YSZXF
B
PC714V2NSZXF PC714V2YSZXF
Model No.
C
PC714V3NSZXF PC714V3YSZXF
A or B
PC714V5NSZXF PC714V5YSZXF
B or C
PC714V6NSZXF PC714V6YSZXF
A, B or C
PC714V8NSZXF PC714V8YSZXF
Lead Form
I
C
[mA]
(I
F
=5mA,
V
CE
=5V,
T
a
=25˚C)
2.5 to 30.0
4.0 to 8.0
6.5 to 13.0
10.0 to 20.0
4.0 to 13.0
6.5 to 20.0
4.0 to 20.0
Please contact a local SHARP sales representative to inquire about production status.
Sheet No.: D2-A04102EN
5
