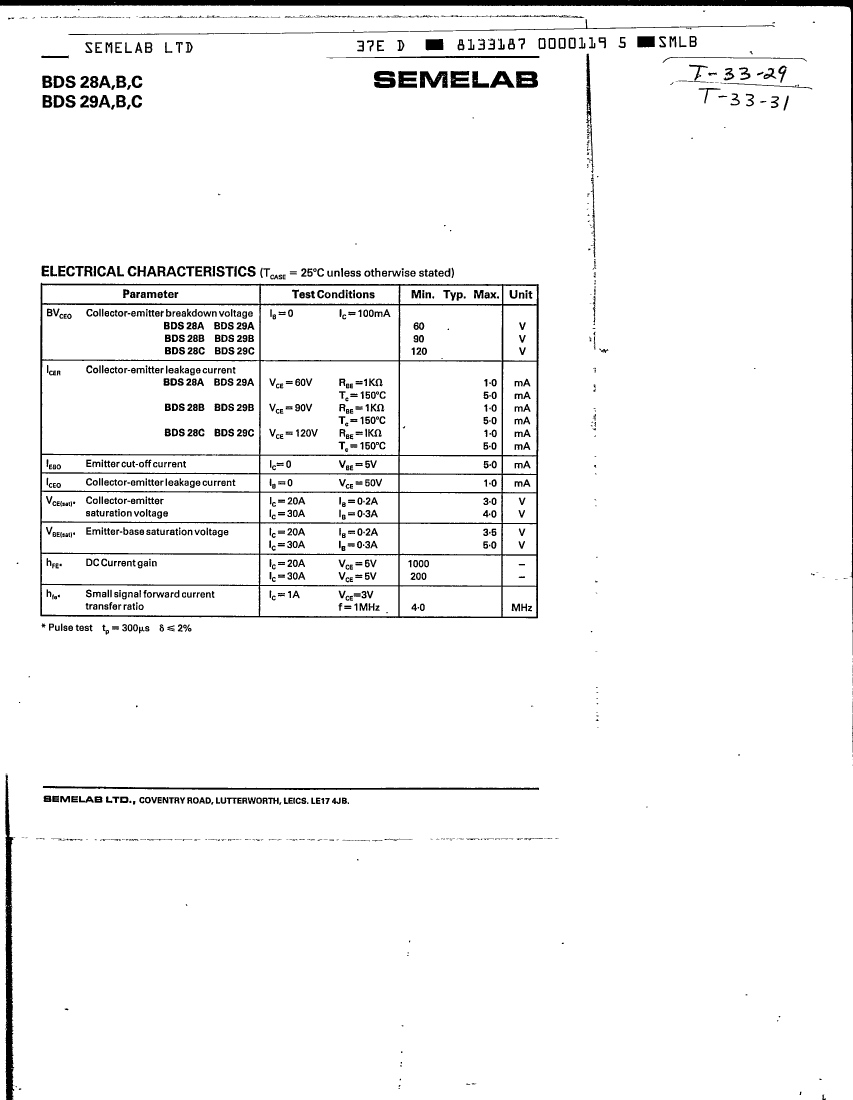

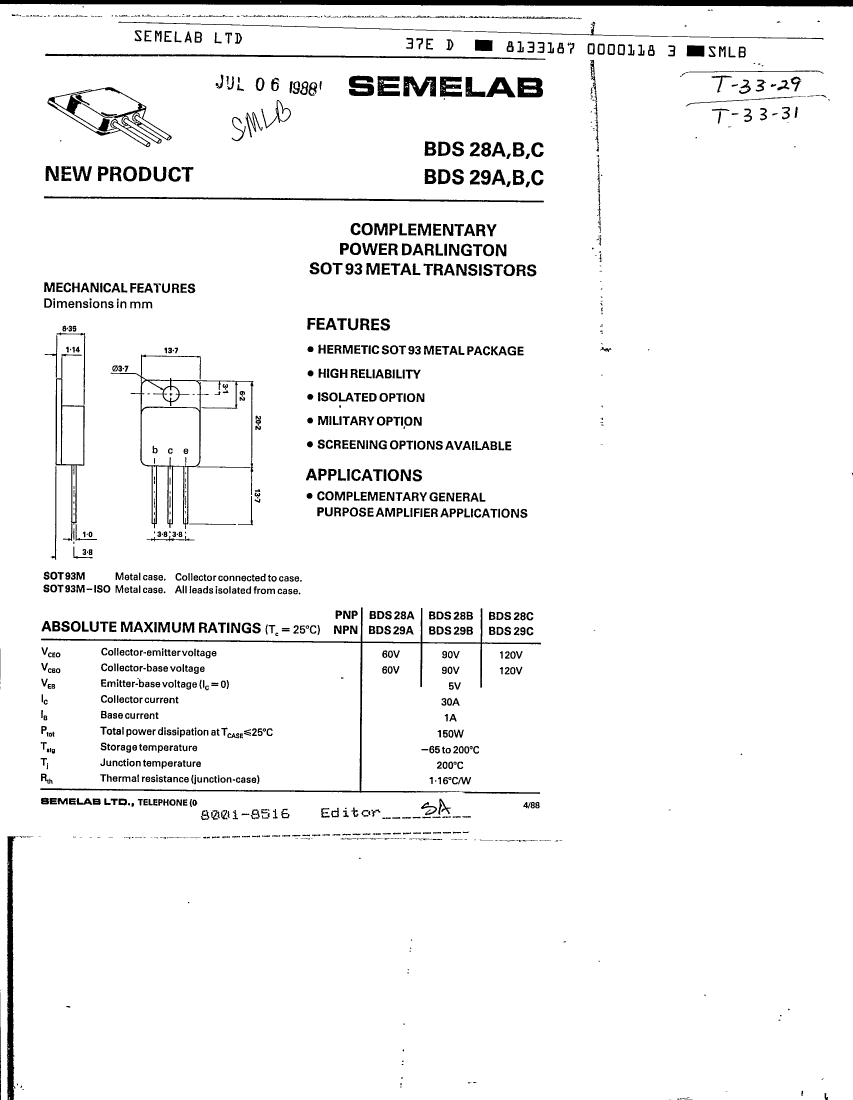

30A, 120V, PNP, Si, POWER TRANSISTOR, TO-254AA, HERMETIC SEALED PACKAGE-3
| Parameter Name | Attribute value |
| Parts packaging code | TO-254AA |
| package instruction | FLANGE MOUNT, R-MSFM-P3 |
| Contacts | 3 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Shell connection | ISOLATED |
| Maximum collector current (IC) | 30 A |
| Collector-emitter maximum voltage | 120 V |
| Configuration | DARLINGTON |
| Minimum DC current gain (hFE) | 200 |
| JEDEC-95 code | TO-254AA |
| JESD-30 code | R-MSFM-P3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Package body material | METAL |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Polarity/channel type | PNP |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | PIN/PEG |
| Terminal location | SINGLE |
| transistor applications | AMPLIFIER |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 4 MHz |
| Base Number Matches | 1 |
| BDS28C | BDS28A | BDS28B | BDS29A | |
|---|---|---|---|---|
| Description | 30A, 120V, PNP, Si, POWER TRANSISTOR, TO-254AA, HERMETIC SEALED PACKAGE-3 | 30A, 60V, PNP, Si, POWER TRANSISTOR, TO-254AA, HERMETIC SEALED PACKAGE-3 | 30A, 90V, PNP, Si, POWER TRANSISTOR, TO-254AA, HERMETIC SEALED PACKAGE-3 | 30A, 60V, NPN, Si, POWER TRANSISTOR, TO-254AA, HERMETIC SEALED PACKAGE-3 |
| Parts packaging code | TO-254AA | TO-254AA | TO-254AA | TO-254AA |
| package instruction | FLANGE MOUNT, R-MSFM-P3 | FLANGE MOUNT, R-MSFM-P3 | FLANGE MOUNT, R-MSFM-P3 | FLANGE MOUNT, R-MSFM-P3 |
| Contacts | 3 | 3 | 3 | 3 |
| Reach Compliance Code | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| Shell connection | ISOLATED | ISOLATED | ISOLATED | ISOLATED |
| Maximum collector current (IC) | 30 A | 30 A | 30 A | 30 A |
| Collector-emitter maximum voltage | 120 V | 60 V | 90 V | 60 V |
| Configuration | DARLINGTON | DARLINGTON | DARLINGTON | DARLINGTON |
| Minimum DC current gain (hFE) | 200 | 200 | 200 | 200 |
| JEDEC-95 code | TO-254AA | TO-254AA | TO-254AA | TO-254AA |
| JESD-30 code | R-MSFM-P3 | R-MSFM-P3 | R-MSFM-P3 | R-MSFM-P3 |
| Number of components | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 |
| Package body material | METAL | METAL | METAL | METAL |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Polarity/channel type | PNP | PNP | PNP | NPN |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO |
| Terminal form | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE |
| transistor applications | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON |
| Nominal transition frequency (fT) | 4 MHz | 4 MHz | 4 MHz | 4 MHz |
| Base Number Matches | 1 | 1 | 1 | - |
| Is it lead-free? | - | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | - | incompatible | incompatible | incompatible |
| Peak Reflow Temperature (Celsius) | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Maximum time at peak reflow temperature | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
