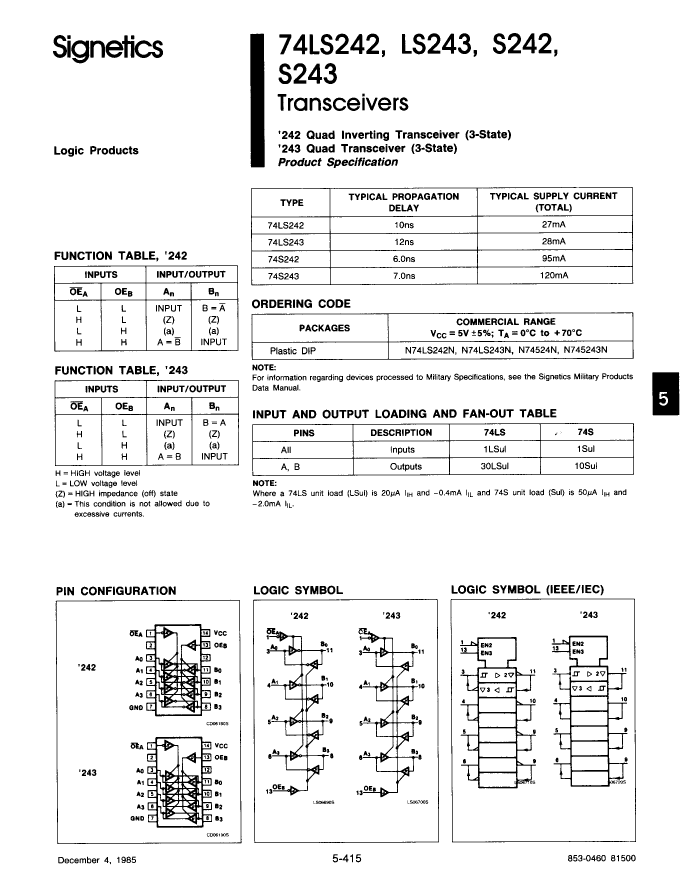

Bus Driver/Transceiver, 1-Func, 4-Bit, True Output, TTL, PDIP14

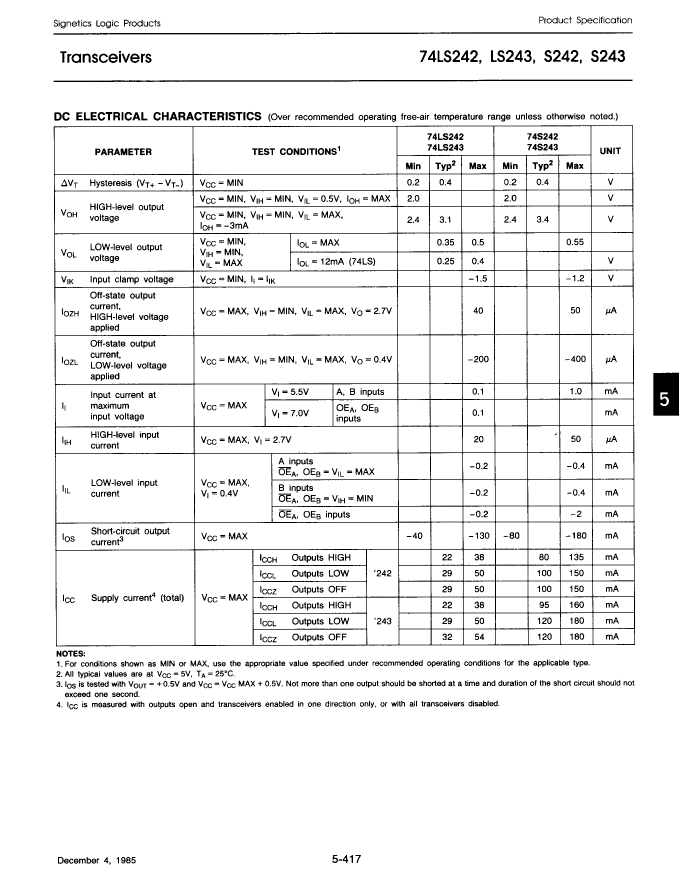

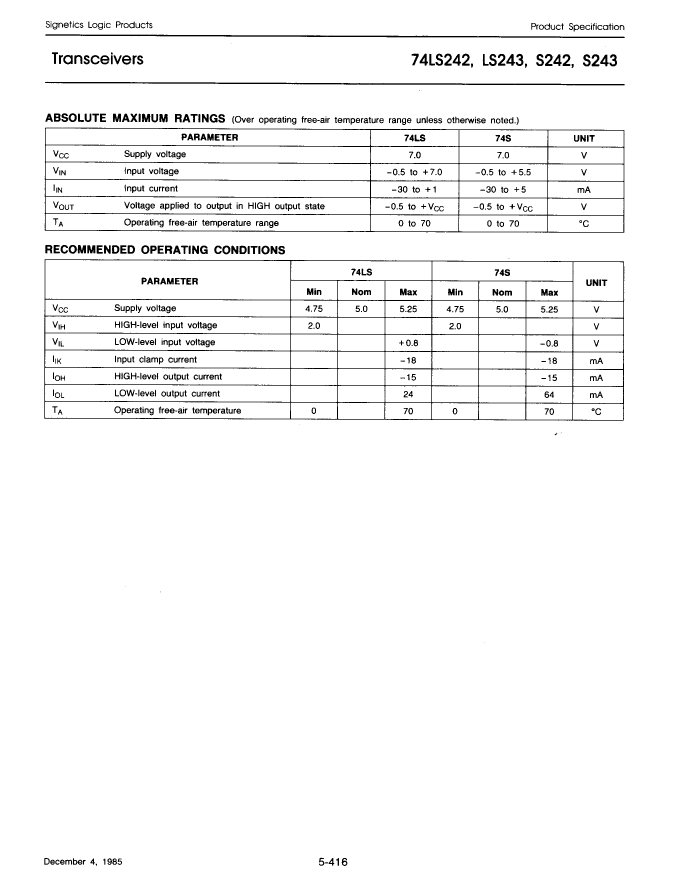

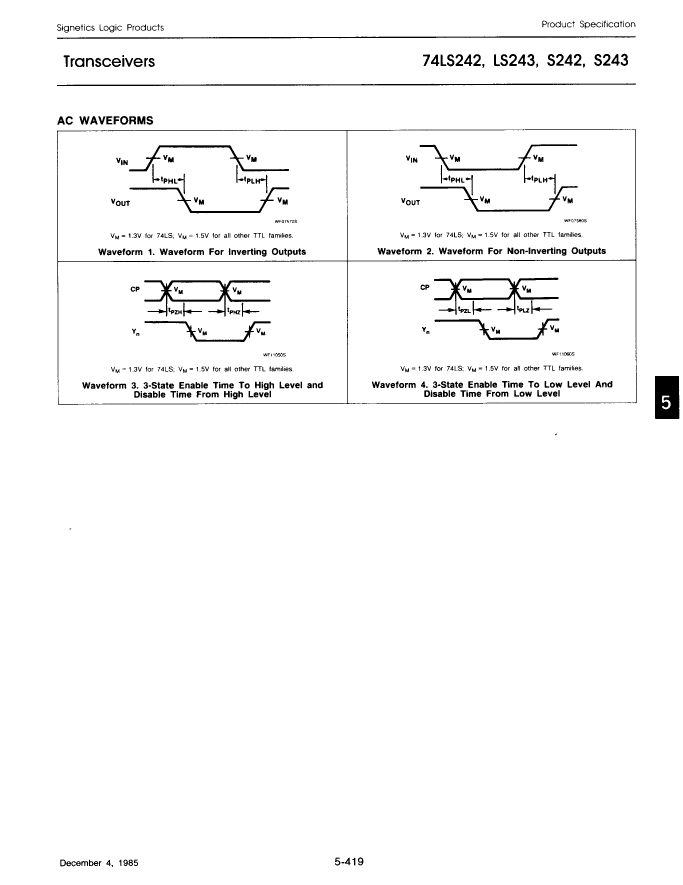

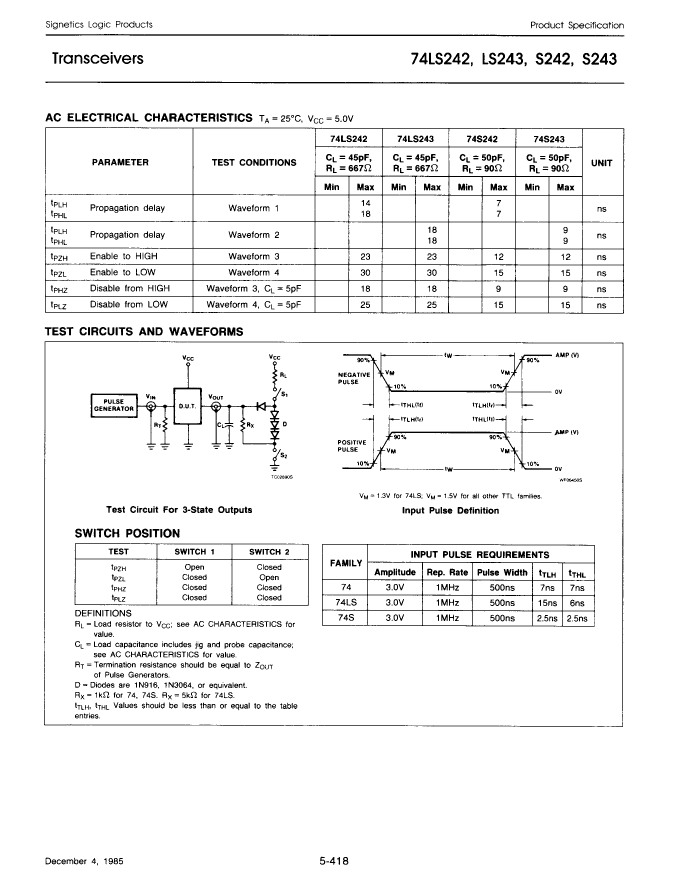

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| package instruction | DIP, DIP14,.3 |
| Reach Compliance Code | unknown |
| Control type | INDEPENDENT CONTROL |
| Counting direction | BIDIRECTIONAL |
| JESD-30 code | R-PDIP-T14 |
| JESD-609 code | e0 |
| MaximumI(ol) | 0.064 A |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of terminals | 14 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP14,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | 5 V |
| Maximum supply current (ICC) | 180 mA |
| Prop。Delay @ Nom-Sup | 9 ns |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| N74S243N-B | N74LS243D-T | N74LS243D | N74LS243N | N74LS242N-B | N74S242N | |
|---|---|---|---|---|---|---|
| Description | Bus Driver/Transceiver, 1-Func, 4-Bit, True Output, TTL, PDIP14 | Bus Driver/Transceiver, 1-Func, 4-Bit, True Output, TTL | Bus Driver/Transceiver, 1-Func, 4-Bit, True Output, TTL | Bus Driver/Transceiver, 1-Func, 4-Bit, True Output, TTL, PDIP14 | Bus Driver/Transceiver, 1-Func, 4-Bit, Inverted Output, TTL, PDIP14 | Bus Driver/Transceiver, 1-Func, 4-Bit, Inverted Output, TTL, PDIP14 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| package instruction | DIP, DIP14,.3 | SOP, SO(UNSPEC) | SOP, SO(UNSPEC) | DIP, DIP14,.3 | DIP, DIP14,.3 | DIP, DIP14,.3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Control type | INDEPENDENT CONTROL | INDEPENDENT CONTROL | INDEPENDENT CONTROL | INDEPENDENT CONTROL | INDEPENDENT CONTROL | INDEPENDENT CONTROL |
| Counting direction | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| Number of digits | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE | INVERTED | INVERTED |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | SOP | SOP | DIP | DIP | DIP |
| Encapsulate equivalent code | DIP14,.3 | SO(UNSPEC) | SO(UNSPEC) | DIP14,.3 | DIP14,.3 | DIP14,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE | SMALL OUTLINE | IN-LINE | IN-LINE | IN-LINE |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES | NO | NO | NO |
| technology | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | GULL WING | GULL WING | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| JESD-30 code | R-PDIP-T14 | - | - | R-PDIP-T14 | R-PDIP-T14 | R-PDIP-T14 |
| MaximumI(ol) | 0.064 A | 0.024 A | 0.024 A | 0.024 A | - | 0.064 A |
| Number of terminals | 14 | - | - | 14 | 14 | 14 |
| Maximum supply current (ICC) | 180 mA | 54 mA | 54 mA | 54 mA | - | 150 mA |
| Prop。Delay @ Nom-Sup | 9 ns | 18 ns | 18 ns | 18 ns | - | 7 ns |
| Terminal pitch | 2.54 mm | - | - | 2.54 mm | 2.54 mm | 2.54 mm |
| Base Number Matches | 1 | 1 | 1 | 1 | - | - |
| Maker | - | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | - | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) |
| Certification status | - | Not Qualified | Not Qualified | Not Qualified | - | Not Qualified |
