TL431AIPK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> TL431AIPK

TL431AIPK: DescriptionThree Terminal Voltage Reference, 1 Output, 2.5V, BIPolar, PSSO3,; CategoryPower/power management The power supply circuit; File Size540KB，12 Pages; ManufacturerLinfinity Microelectronics

Download Datasheet Parametric Compare View All

TL431AIPK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TL431AIPK	-	-	View	Buy Now

TL431AIPK Overview

Three Terminal Voltage Reference, 1 Output, 2.5V, BIPolar, PSSO3,

TL431AIPK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Other features	PROGRAMMABLE TO 36V
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PSSO-F3
JESD-609 code	e0
Number of functions	1
Output times	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	0.1 A
Maximum output voltage	36 V
Minimum output voltage	2.5 V
Nominal output voltage	2.5 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	TO-243
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum supply current (Isup)	1 mA
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal location	SINGLE
Fine-tuning/adjustable output	NO
Base Number Matches	1

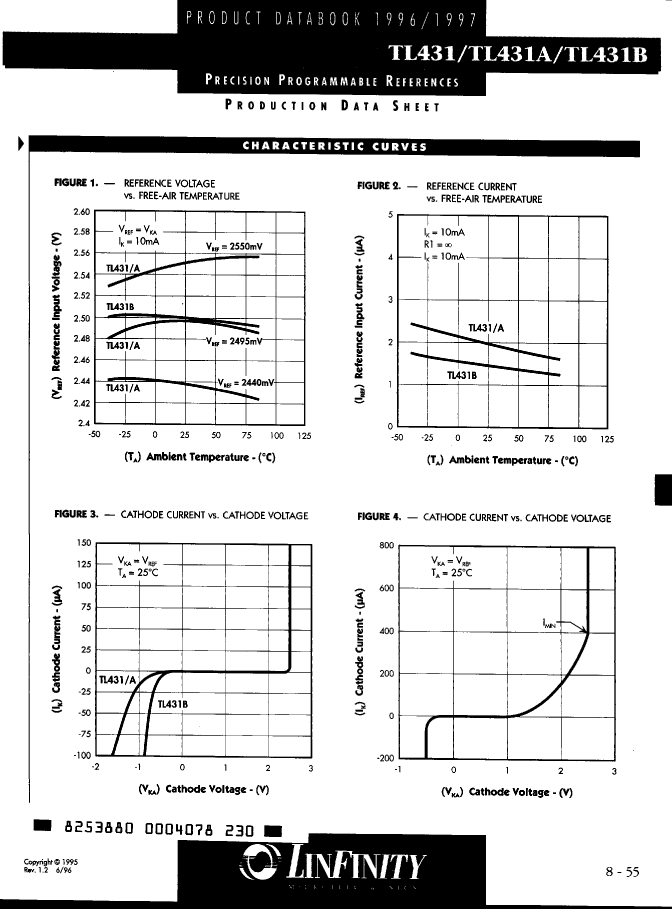

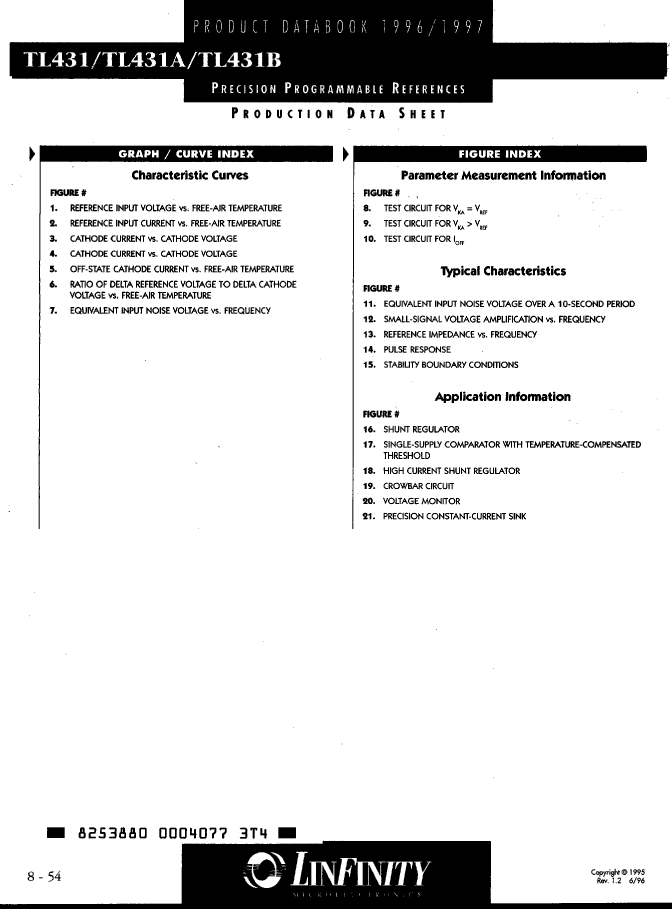

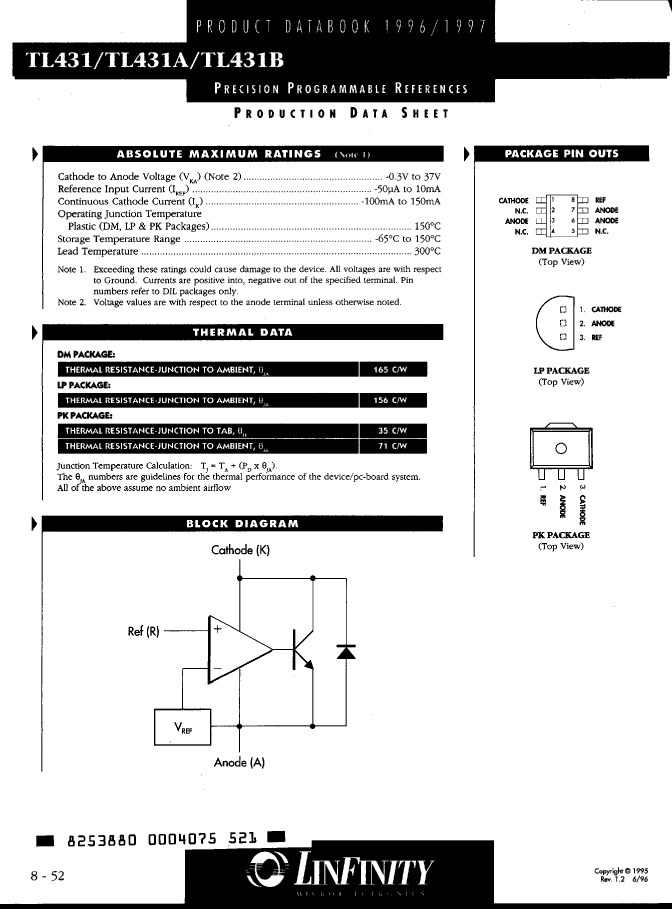

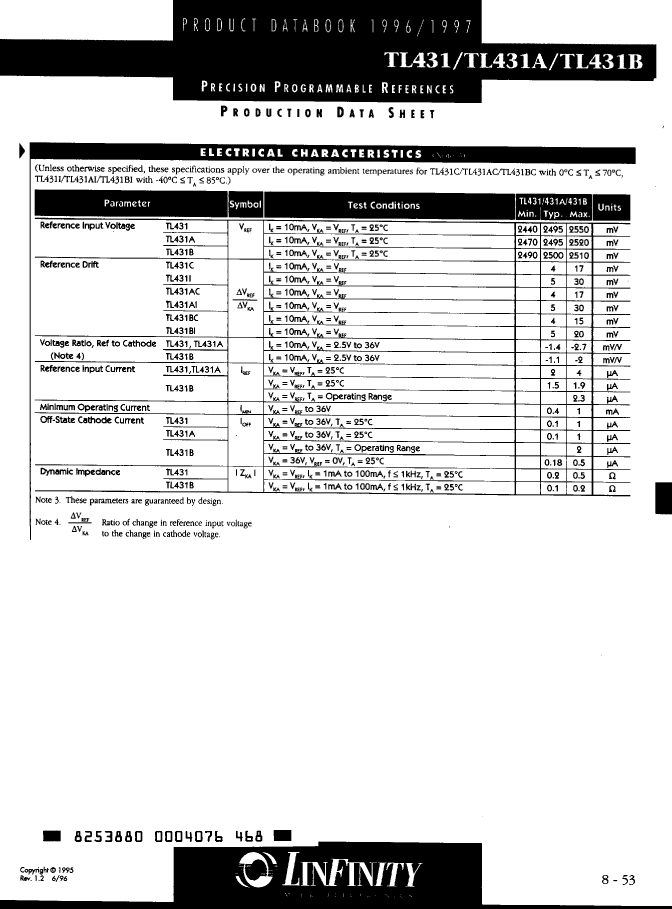

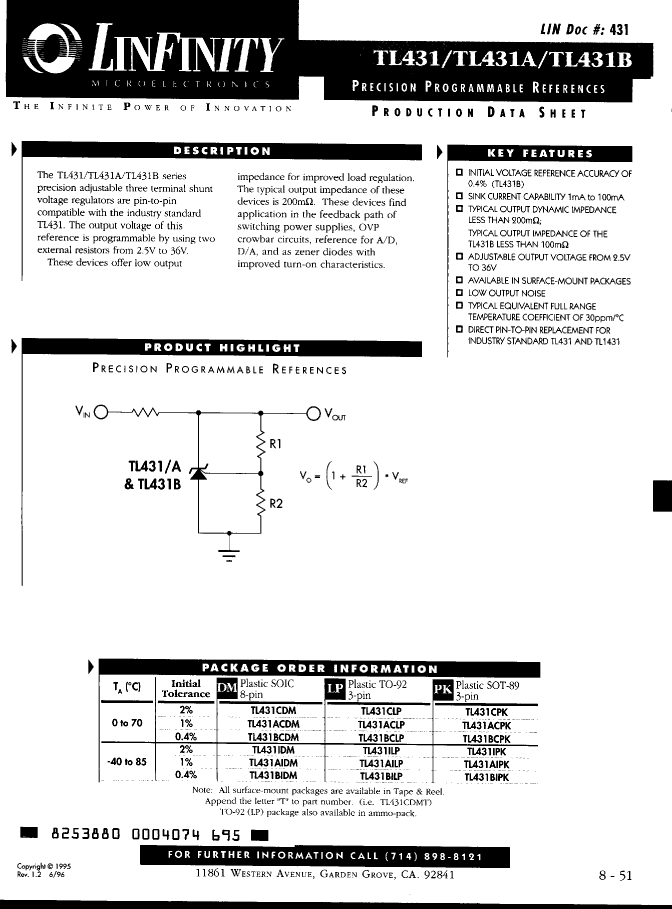

Preview

Download Datasheet

View All

TL431AIPK Related Products

	TL431AIPK	TL431CPK	TL431ACPK	TL431IPK
Description	Three Terminal Voltage Reference, 1 Output, 2.5V, BIPolar, PSSO3,	Three Terminal Voltage Reference, 1 Output, 2.5V, BIPolar, PSSO3,	Three Terminal Voltage Reference, 1 Output, 2.5V, BIPolar, PSSO3,	Three Terminal Voltage Reference, 1 Output, 2.5V, BIPolar, PSSO3,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	PROGRAMMABLE TO 36V	PROGRAMMABLE TO 36V	PROGRAMMABLE TO 36V	PROGRAMMABLE TO 36V
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3
JESD-609 code	e0	e0	e0	e0
Number of functions	1	1	1	1
Output times	1	1	1	1
Number of terminals	3	3	3	3
Maximum operating temperature	85 °C	70 °C	70 °C	85 °C
Maximum output current	0.1 A	0.1 A	0.1 A	0.1 A
Maximum output voltage	36 V	36 V	36 V	36 V
Minimum output voltage	2.5 V	2.5 V	2.5 V	2.5 V
Nominal output voltage	2.5 V	2.5 V	2.5 V	2.5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	TO-243	TO-243	TO-243	TO-243
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	1 mA	1 mA	1 mA	1 mA
surface mount	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	FLAT	FLAT	FLAT
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Fine-tuning/adjustable output	NO	NO	NO	NO
Base Number Matches	1	1	1	-
