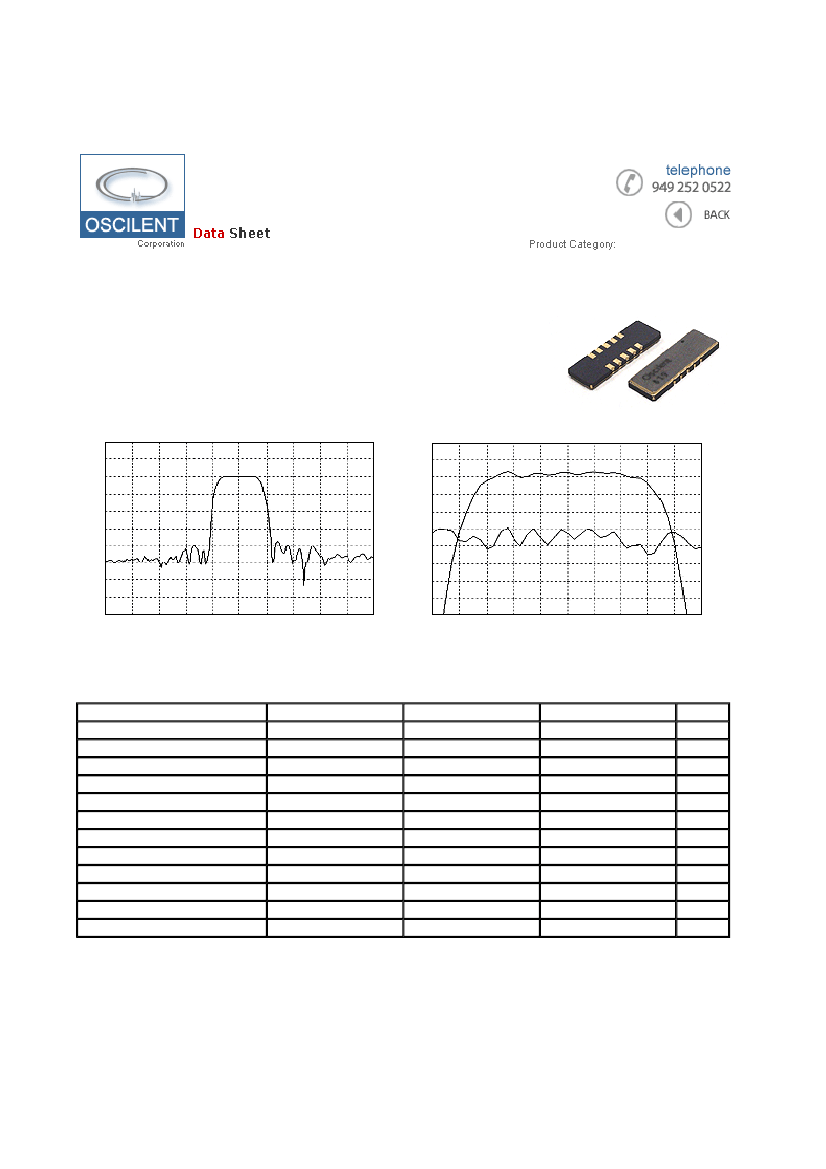

Oscilent Corporation IF SAW Filter | 819-IF150.0M-B
Page 1 of 2
IF SAW Filter
Part Number
Package
Application
Last Modified
819-IF150.0M-B
.
TYPE :
19 x 6.5 SMD
Base Station, Repeater, HDR, IMT-2000
May 02 2003
150.0 MHz Bandpass Filter
1.50 MHz Bandwidth
PART NUMBER :
819-IF150.0M-B
.
Horizontal : 1.0 MHz/Div
Veritical : 10 dB/Div
Horizontal : 0.2 MHz/Div
Veritical : 1 dB/Div
Veritical : 100 ns/Div
.
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss
1dB Bandwidth
3dB Bandwidth
30dB Bandwidth
Passband Ripple
Group Delay Variation
Absolute Delay
Ultimate Rejection
Substrate Material
Ambient Temperature
Phase Linearity
Minimum
149.97
-
1.26
1.50
-
-
-
-
40
-
-
-
Typical
150.00
22.0
1.31
1.54
2.22
0.35
150
2.45
50
Quartz
25
2.0
Maximum
150.03
25.0
-
-
2.26
0.7
200
-
-
-
-
5
Units
MHz
dB
MHz
MHz
MHz
dB
nsec
µsec
dB
-
°C
degc
* Custom SAW IF Filters available. Contact Oscilent for assistance.
.
PACKAGE OUTLINE
(mm)
TEST FIXTURE
http://www.oscilent.com/spec_pages/if_sawfilter/if_819_if150_0b.htm
12/28/2005
Oscilent Corporation IF SAW Filter | 819-IF150.0M-B
Page 2 of 2
L1 = 100nH
C1 = 39pF
R1 = 1Kohm
L2 = 66nH
C2 = 51pF
R2 = 1Kohm
Source/Load Impedance = 50 ohms
Part No.:
819-IF150.0M-B
