813-SL76.8M-20 Overview

IF SAW Filter

Oscilent Corporation IF SAW Filter | 813-SL76.8M-20
Page 1 of 2
IF SAW Filter
Part Number
Package
Application
Last Modified
813-SL76.8M-20
TYPE :
13.3 x 6.5 SMD
IF SAW Filter
Jan. 01, 2007
IF SAW Filter
PART NUMBER :
813-SL76.8M-20
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Insertion Loss at Fo
Source Impedance (balanced ended)*
Load Impedance (balanced ended)*
Temperature Coefficient
Amplitude Ripple
1dB Bandwidth
3dB Bandwidth
40dB Bandwidth
Relative Attenuation:
Fo +/- 25MHz
Fo +/- 35MHz
Absolute Delay at Fo
Passband Phase Ripple
Operating Temperature
40
40
-
-
0
48
52
0.8
5
-
Minimum
-
-
-
-
-
-
20
-
-
Typical
76.8
15.5
100
100
-94
0.5
21.2
22.2
26.2
-
-
-
-
9
+50
dB
dB
us
Deg.
C
Maximum
-
17.0
-
-
-
1.0
-
-
28
Units
MHz
dB
ohm
ohm
ppm/C
dBp-p
MHz
MHz
MHz
*With Matching Network (Ref. Testing Environment Circuit as Shown Below).
Those impedances could be modified with different impedance values and/or structures, if necessary
PACKAGE OUTLINE
(mm)

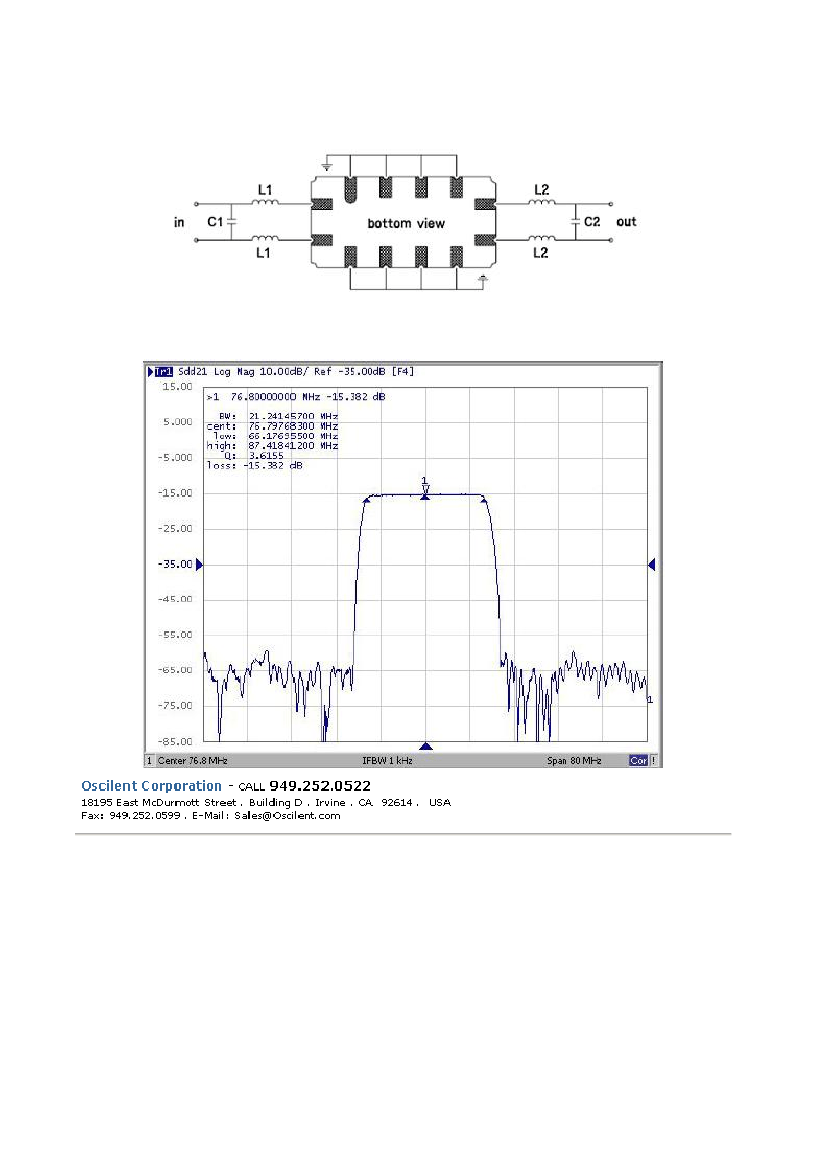

TEST CIRCUIT
