813-SL125.0M-28 Overview

Low-Loss 125MHz

Oscilent Corporation IF SAW Filter | 813-SL125.0M-28
Page 1 of 2
IF SAW Filter
Part Number
Package
Application
Last Modified
813-SL125.0M-28
TYPE :
13.3 x 6.5 SMD
Low-Loss 125MHz
Jan 01, 2007
Low-Loss 125MHz IF SAW Filter
PART NUMBER :
813-SL125.0M-28
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Insertion Loss at Fo
Source Impedance (single ended)*
Load Impedance (single ended)*
Temperature Coefficient
Amplitude Ripple fo+/-13.0MHz
1dB Bandwidth
3dB Bandwidth
40dB Bandwidth
Relative Attenuation:
Lower Sidelobe
Upper Sidelobe
Absolute Delay at Fo
Group Delay Variation fo +/-13.0 MHz
IN/OUT Return Loss at Fo
40
40
-
-
-
47
47
0.85
25
-
Minimum
-
-
-
-
-
-
27.5
28.5
-
Typical
125.0
15.5
50
50
-94
0.4
28.5
29.5
33.3
-
-
-
-
50
-
dB
dB
us
ns
dB
Maximum
-
17.0
-
-
-
1.0
-
-
34.5
Units
MHz
dB
ohm
ohm
ppm/C
dBp-p
MHz
MHz
MHz
*With Matching Network (Ref. Testing Environment Circuit as Shown Below).
Those impedances could be modified with different impedance values and/or structures, if necessary
PACKAGE OUTLINE
(mm)

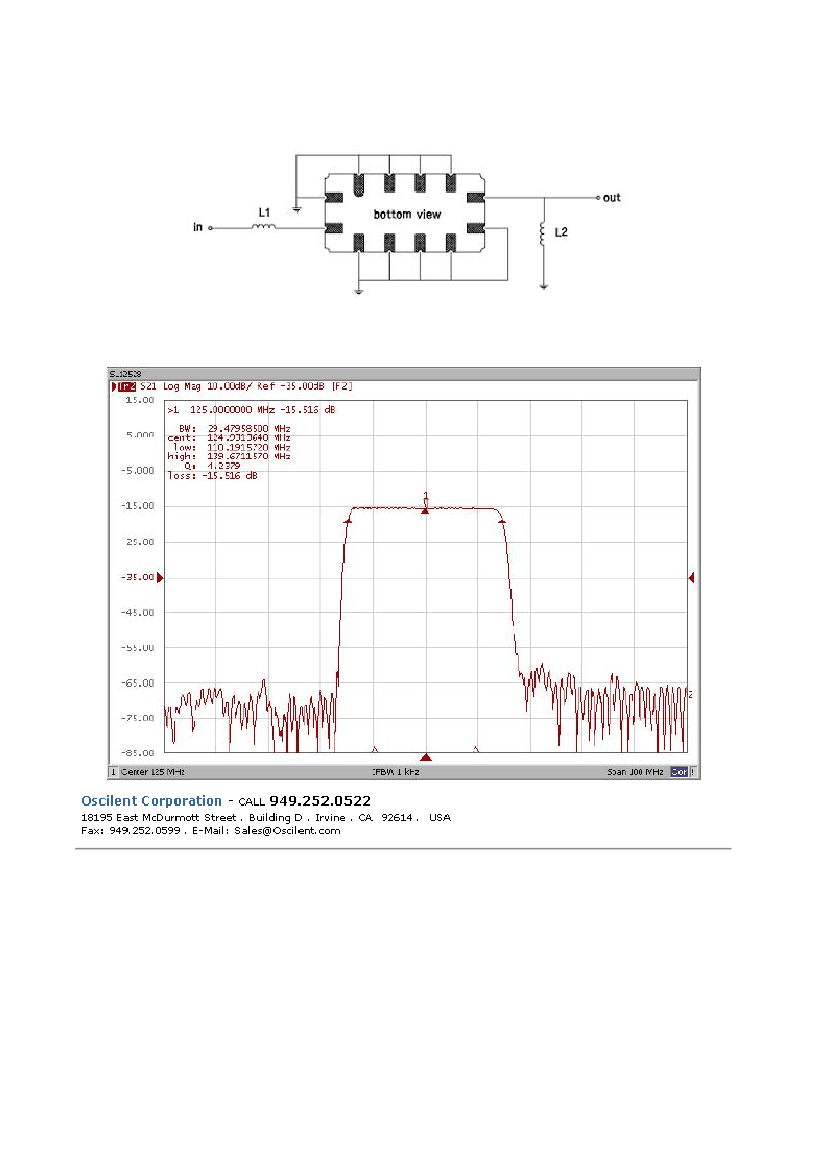

TEST CIRCUIT
