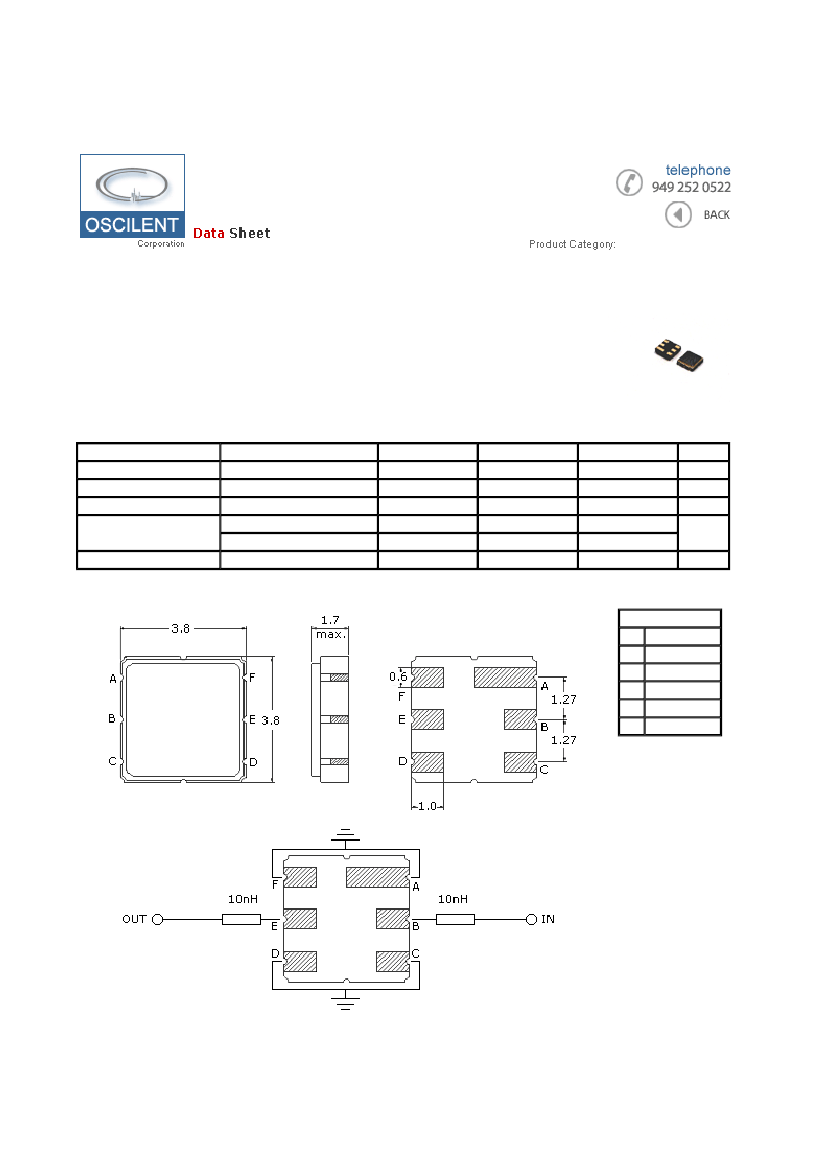

Oscilent Corporation RF SAW Filter | 803-RF935.5M-A

Page 1 of 2

RF SAW Filter

Part Number

Package

Application

Last Modified

803-RF935.5M-A

.

TYPE :

3.8 x 3.8 SMD

Wireless Communication

Apr. 12 2003

935.5 MHz RF SAW Filter

PART NUMBER :

803-RF935.5M-A

.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency (Fo)

Insertion Loss

Ripple

Stopband Attenuation

Teminating Impedance

Condition

-

929.0 ~ 942.0 MHz

Fo -200.0 ~ Fo -42.8 MHz

Fo +42.8 ~ Fo +200.0 MHz

-

Minimum

-

40.0

-

Typical

935.5

2.3

0.5

50.0

50/10

Maximum

-

3.5

1.5

-

ohm/nH

Units

MHz

dB

* Custom SAW RF Filters available. Contact Oscilent for assistance.

.

Pin Layout

A

B

C

D

E

F

Ground

Input

Ground

Output

Ground

Test Fixture

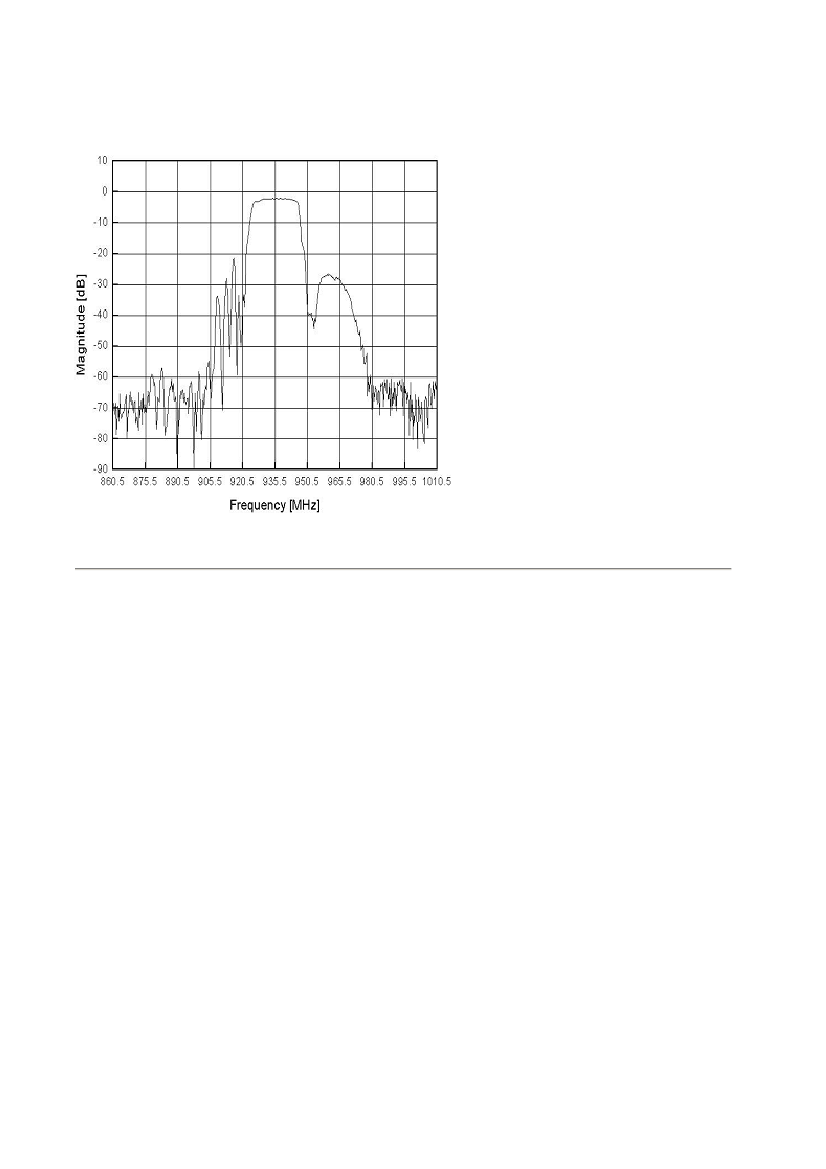

Frequency Reponse

http://www.oscilent.com/spec_pages/rf_sawfilter/rf_803_rf935_5a.htm

12/28/2005
