UZC932TC: DescriptionVariable Capacitance Diode, Very High Frequency, 9.5pF C(T), 12V, Silicon, Hyperabrupt, SOT-23, 3 PIN; CategoryDiscrete semiconductor diode; File Size94KB，6 Pages; ManufacturerZetex Semiconductors; Websitehttp://www.zetex.com/; Environmental Compliance

Download Datasheet Parametric View All

UZC932TC Overview

Variable Capacitance Diode, Very High Frequency, 9.5pF C(T), 12V, Silicon, Hyperabrupt, SOT-23, 3 PIN

UZC932TC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Zetex Semiconductors
package instruction	R-PDSO-G3
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW NOISE
Minimum breakdown voltage	12 V
Configuration	SINGLE
Diode Capacitance Tolerance	10.53%
Minimum diode capacitance ratio	3.091
Nominal diode capacitance	9.5 pF
Diode component materials	SILICON
Diode type	VARIABLE CAPACITANCE DIODE
frequency band	VERY HIGH FREQUENCY
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Maximum power dissipation	0.33 W
Certification status	Not Qualified
minimum quality factor	200
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Varactor Diode Classification	HYPERABRUPT
Base Number Matches	1

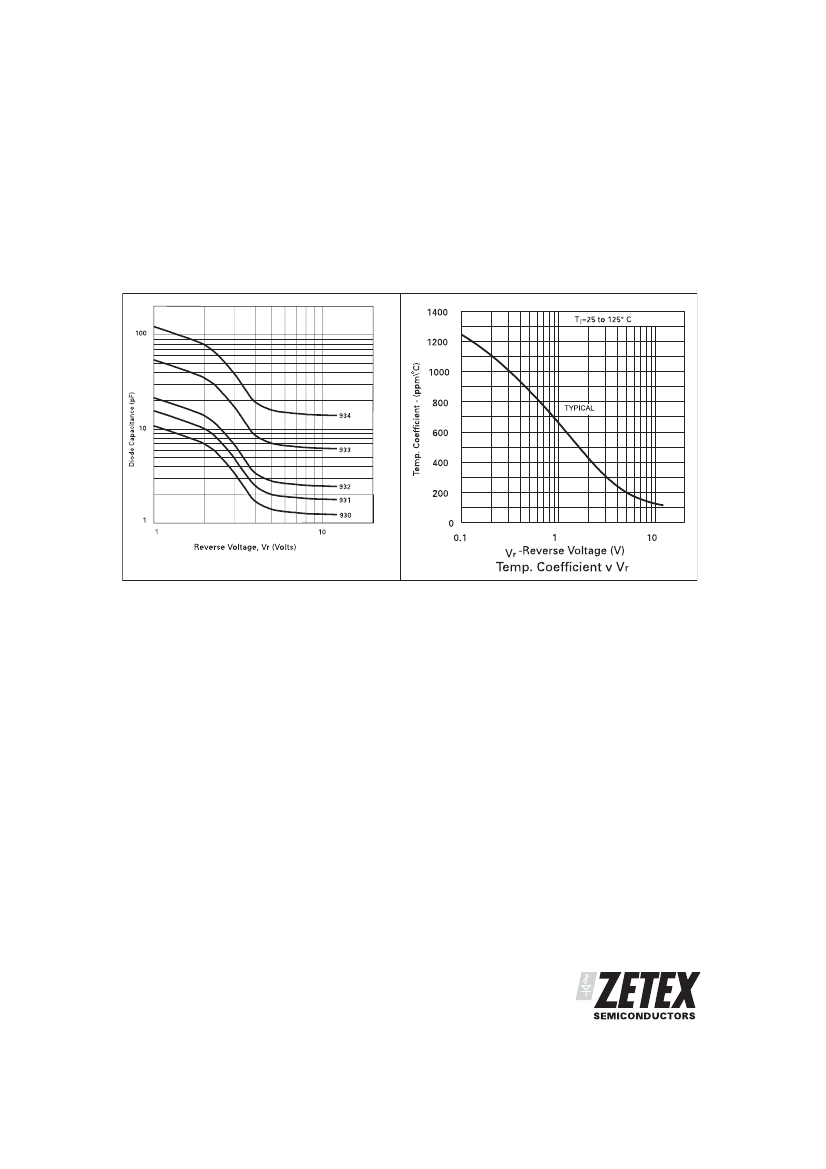

Preview

Download Datasheet

View All

ZC930, ZMV930, ZV931 series

SILICON 12V HYPERABRUPT VARACTOR DIODES

Device Description

A range of silicon varactor diodes for use in

frequency control and filtering. Featuring closely

controlled CV characteristics and high Q. Low

reverse current ensures very low phase noise

performance. Available in single or dual common

cathode format in a wide rage of miniature surface

mount packages.

Features

•

Close tolerance C-V characteristics

•

Octave tuning from 0 to 6V

•

Low I

(typically 200pA)

•

Excellent phase noise performance

•

High Q

•

Range of miniature surface mount packages

SOT23

SOD323

Applications

•

VCXO and TCXO

•

Wireless communications

•

Pagers

•

Mobile radio

SOD523

PINOUT

ISSUE 9 - APRIL 2006

SEMICONDUCTORS
