HM2P07PNJ1A0GCLF datasheet, PDF

Datasheet> All Categories > The connector> The connector> HM2P07PNJ1A0GCLF

HM2P07PNJ1A0GCLF: DescriptionBoard Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size129KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P07PNJ1A0GCLF Overview

Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

HM2P07PNJ1A0GCLF Parametric

Parameter Name	Attribute value
Objectid	1784876765
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.6
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	MATTE TIN
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	110
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

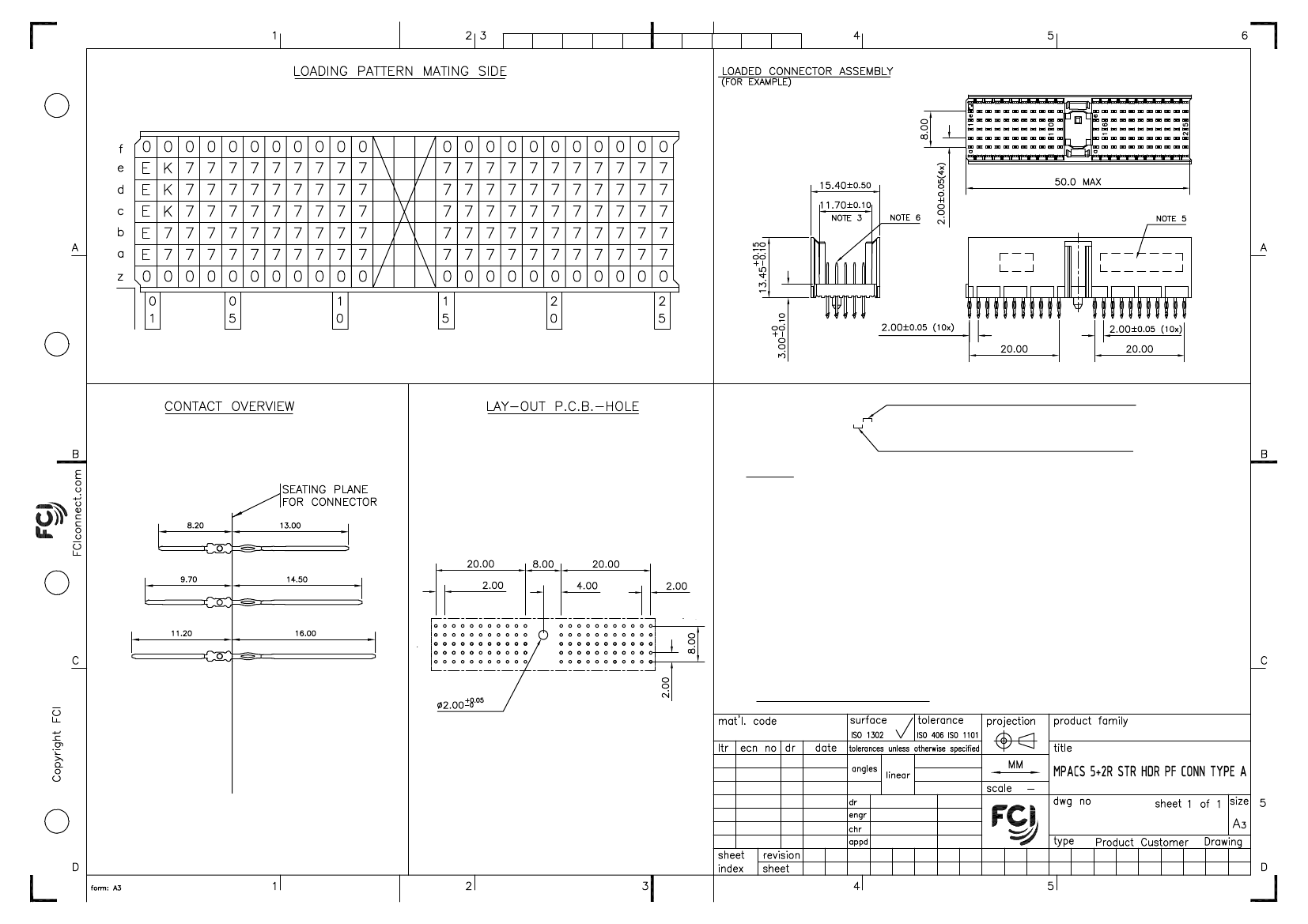

HM2P07PNJ1A0----

NOTES

LEAD FREE INDICATOR : LF = LEAD FREE

(DIGIT 15 & 16)

PLATING CODE (DIGIT 13 AND 14)

(REF DRW NO. BS,C , 201844 , 003)

1. THIS PRODUCT IS CSA APPROVED.

2. THIS PRODUCT IS UL RECOGNIZED.

3. MEASURED AT THE BOTTOM.

4. MATERIAL CONTACT: PHOSPHORBRONZE

HOUSING: CREAM WHITE GLASS FILLED POLYESTER UL-94V0

5. CONNECTOR PRINTED WITH P/N AND DATE CODE.

6. FOR ACTUAL CONTACT LOADINGS, SEE LOADING PATTERN MATING SIDE.

7. SHAPE OF CONNECTOR HOUSING CAN ALTER DEPENDING ON

PRODUCTION LOCATION

8. THE PRODUCT (LF) MEETS EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY

REGULATIONS AS DESCRIBED IN GS-22-008

9. FOR RECOMMENDED PTH DIMENSIONS REFER DRAWING : BS, A , 201572 , 001

CATALOG NO: HM2P07PNJ1A0----

SEE NOTE 4

I05-0228

I06-0131

MINI

2005-11-16

0°±1°

MINI K VANDANATH 2005-11-16

BIJU K PAUL

2005-11-16

2006-07-25

.0±0.2

.00±0.1

MILLIPACS

MINI 2006-07-25

BS, C ,203028, 403

PDM: Rev:B

STATUS:

Released

Printed: Dec 03, 2007

HM2P07PNJ1A0GCLF Related Products

	HM2P07PNJ1A0GCLF	HM2P07PNJ1A0GC	HM2P07PNJ1A0GFLF	HM2P07PNJ1A0GF	HM2P07PNJ1A0GLLF	HM2P07PNJ1A0GL
Description	Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	MATTE TIN	TIN LEAD	MATTE TIN	TIN LEAD	MATTE TIN	TIN LEAD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e0	e3	e0	e3	e0
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	110	110	110	110	110	110
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Objectid	1784876765	-	1784876767	-	1784876769	1784876770
ECCN code	EAR99	-	EAR99	-	EAR99	EAR99
YTEOL	8.6	-	8.6	-	8.6	8.6
